Removal and Replacement

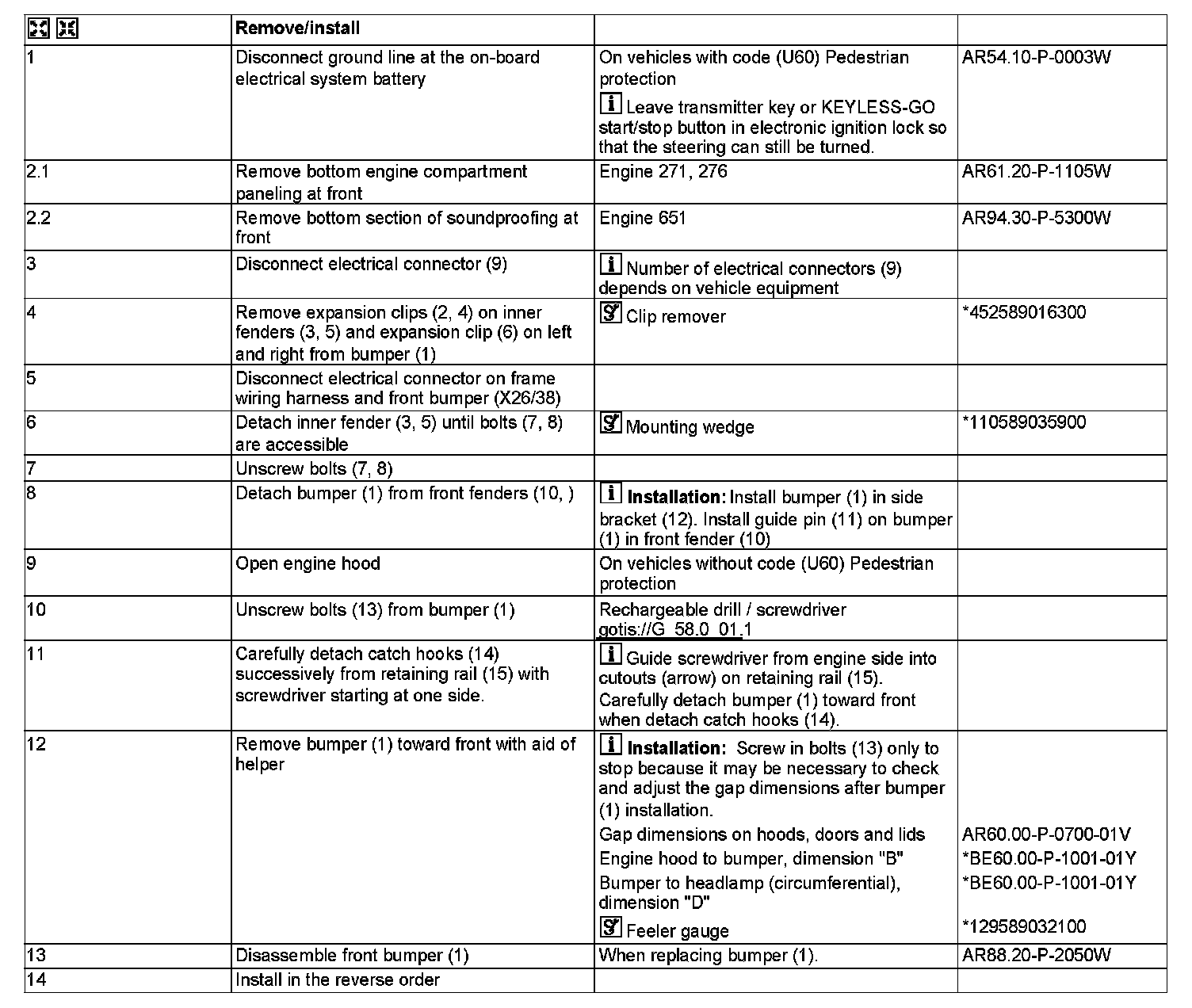

AR88.20-P-2000W Remove/Install Front Bumper
MODEL 172.4





Shown on vehicles with code (621) Intelligent Light System (left-hand traffic system)

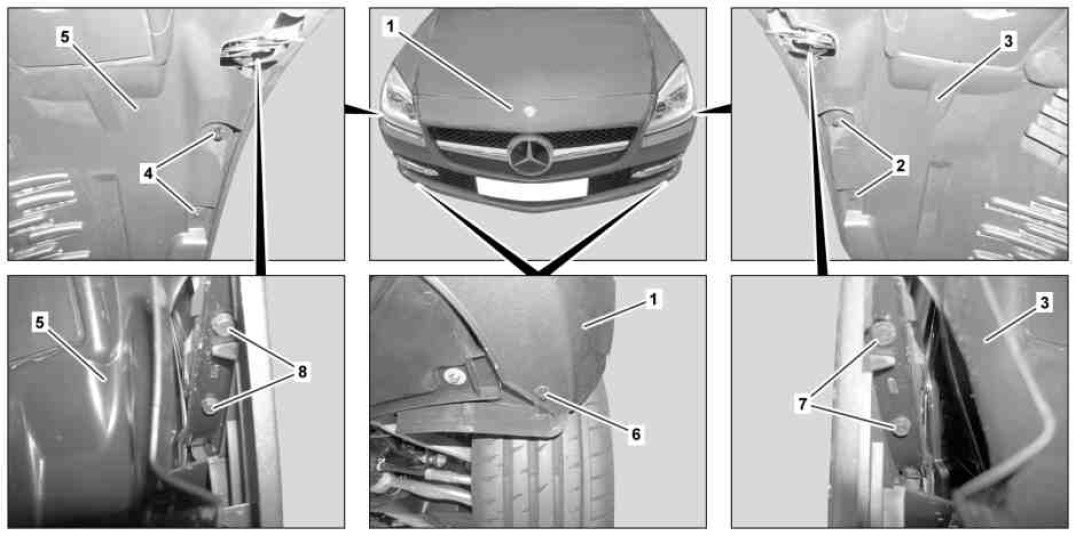

1 Bumper
2 Expansion clip
3 Fender liner
4 Expansion clip
5 Fender liner
6 Expansion clip
7 Bolts
8 Bolts





Shown on vehicles with code (621) Intelligent Light System (left-hand traffic system)

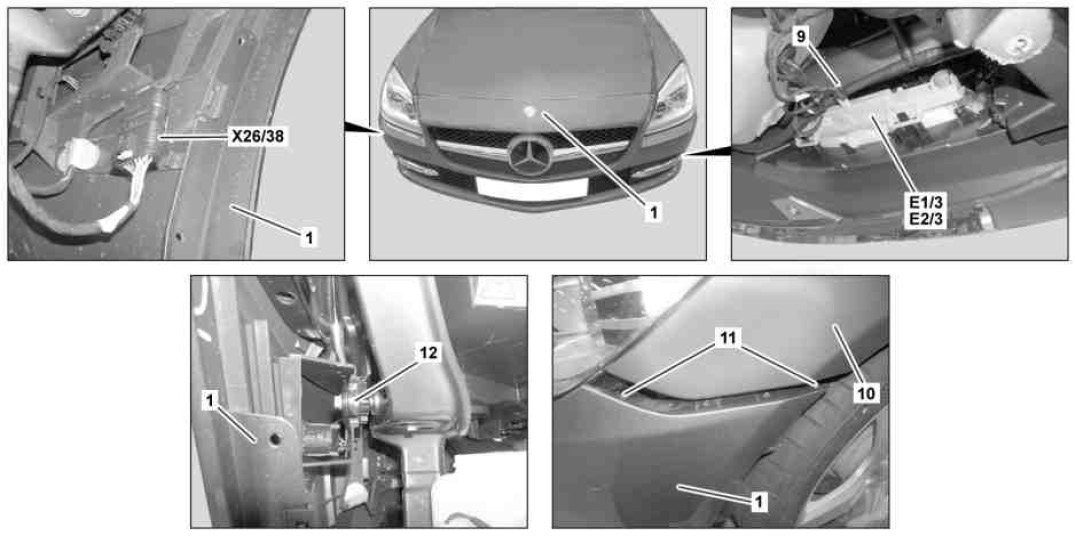

1 Bumper
9 Electrical connector
10 Front fender
11 Guide pin
12 Bracket

E1/3 Left daytime running lamps headlamp
E2/3 Right daytime running lamps headlamp
X26/38 Front bumper and frame wiring harness electrical connector

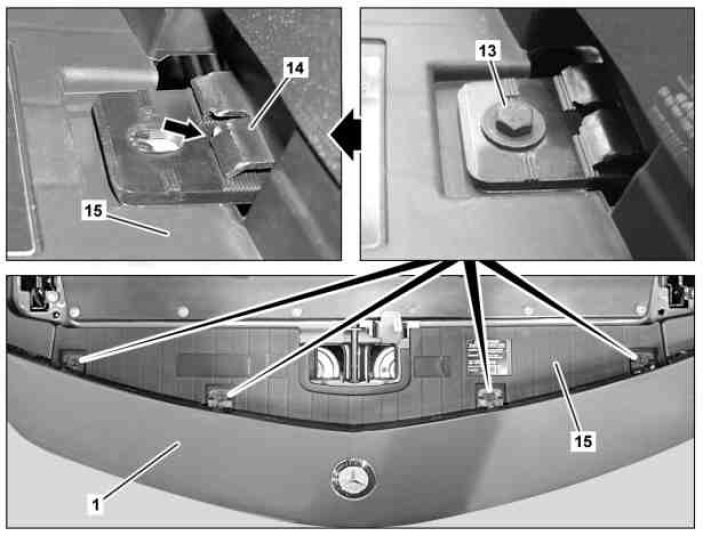

1 Bumper
13 Screw
14 Catch hook
15 Retaining rail














452 589 01 63 00
Snap-release tool





110 589 03 59 00
Mounting wedge





129 589 03 21 00
Feeler gauge
