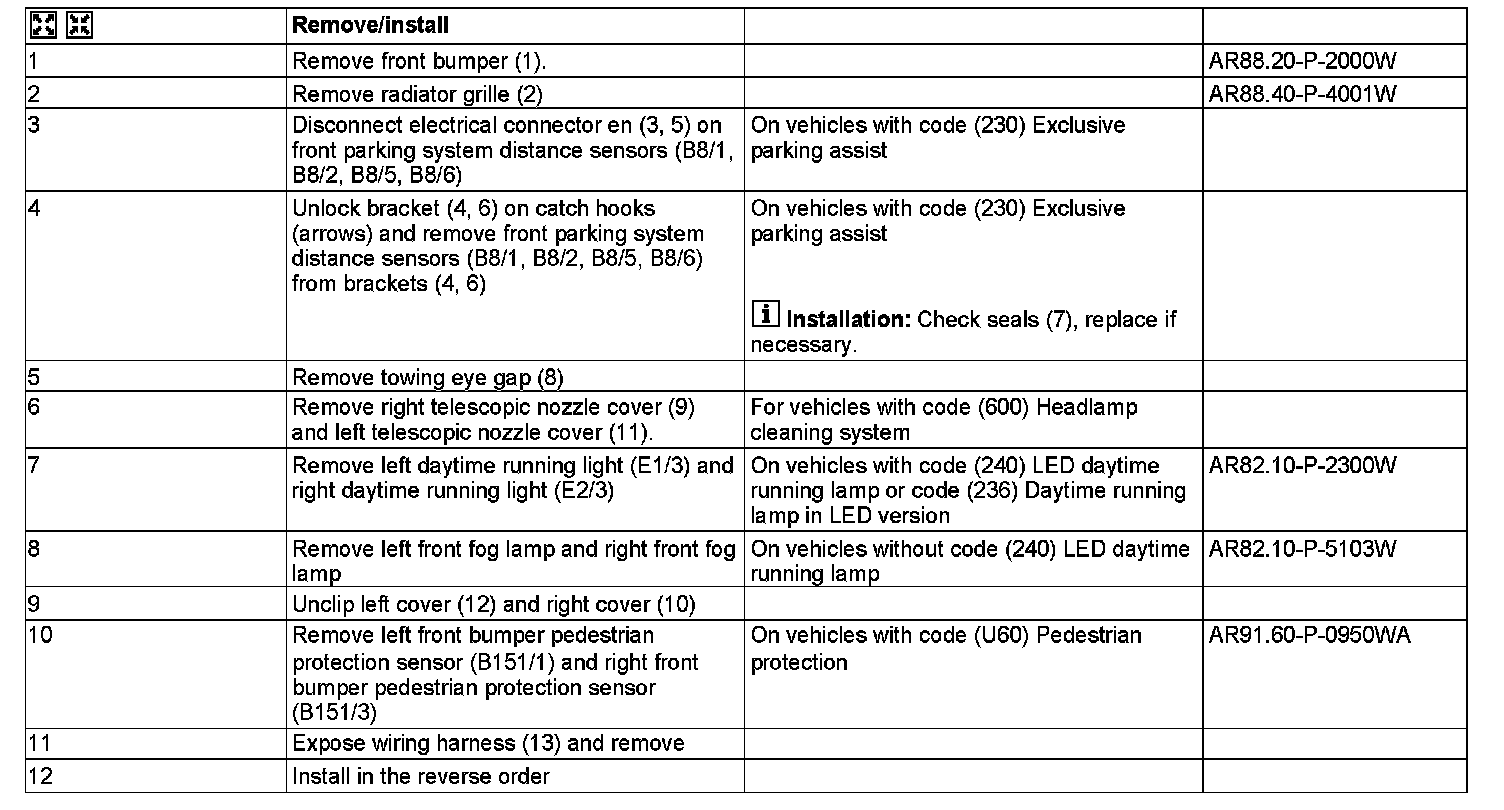

Overhaul

AR88.20-P-2050W Disassemble/Assemble Front Bumper
MODEL 172.4





Shown with code (240) LED daytime running lamp and code (230) Exclusive parking assist

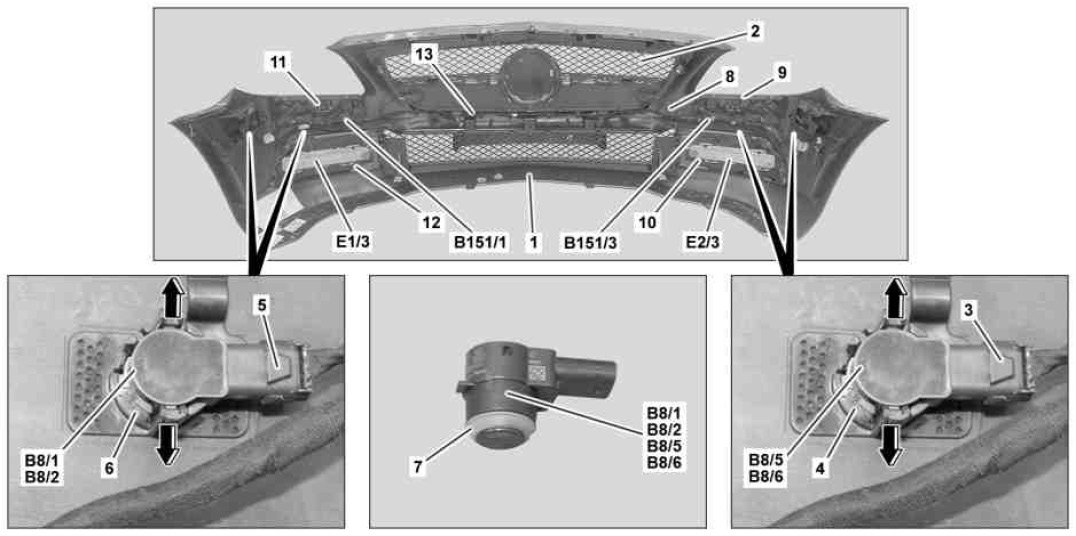

1 Front bumper
2 Radiator grille
3 Electrical connector (with code (230) Exclusive parking assist)
4 Bracket (with code (230) Exclusive parking assist)
5 Electrical connector (with code (230) Exclusive parking assist)
6 Halter (with code (230) Exclusive parking assist)
7 Seal (with code (230) Exclusive parking assist)
8 Towing eye cap
9 Right telescopic nozzle cover (with code (600) Headlamp cleaning system)
10 Right cover
11 Left telescopic nozzle cover (with code (600) Headlamp cleaning system)
12 Left cover
13 Wiring harness

B8/1 Left outer front parking system distance sensor (with code (230) Exclusive parking assist)
B8/2 Left center front parking system distance sensor (with code (230) Exclusive parking assist)
B8/5 Right center front parking system distance sensor (with code (230) Exclusive parking assist)
B8/6 Right outer front parking system distance sensor (with code (230) Exclusive parking assist)
B151/1 Left front bumper pedestrian protection sensor (with code (U60) Pedestrian protection)
B151/3 Right front bumper pedestrian protection sensor (with code (U60) Pedestrian protection)
E1/3 Left daytime running lamp headlamp (with code (240) LED daytime running lamp or code (236) Daytime running lamp in LED version)
E2/3 Right daytime lamp headlamp (with code (240) LED daytime running lamp or code (236) Daytime running lamp in LED version)
