AR82.20-P-1000W Remove/Install Overhead Control Panel Control Unit

AR82.20-P-1000W Remove/Install Overhead Control Panel Control Unit

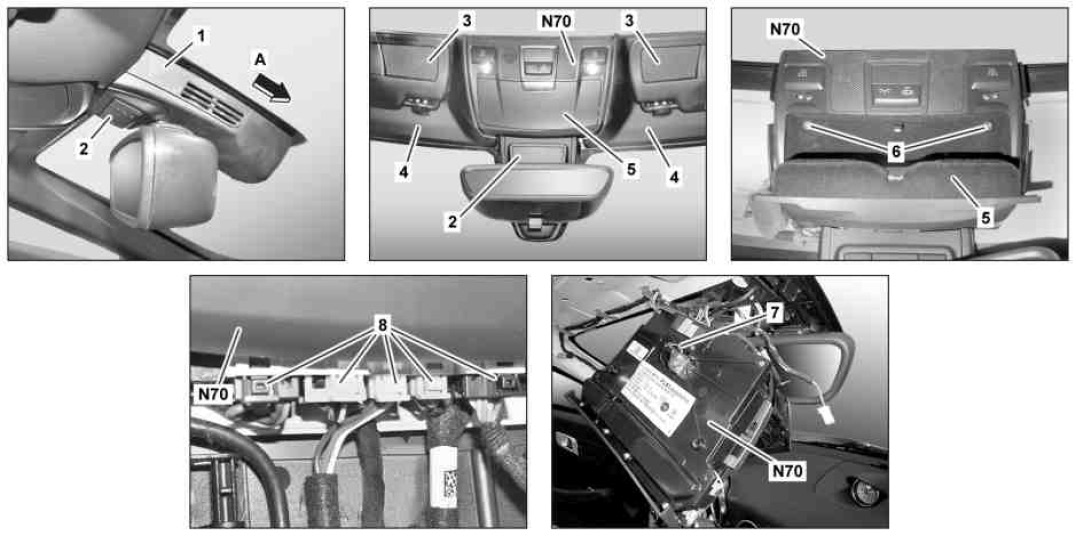

MODEL 172.4





1 Cover
2 Cover
3 Sun visor
4 A-pillar cover
5 Eyeglass compartment
6 Bolts
7 Retaining spring
8 Electrical connectors
N70 Overhead control panel control unit








110 589 03 59 00
Mounting wedge





115 589 03 59 00
Long wedge
