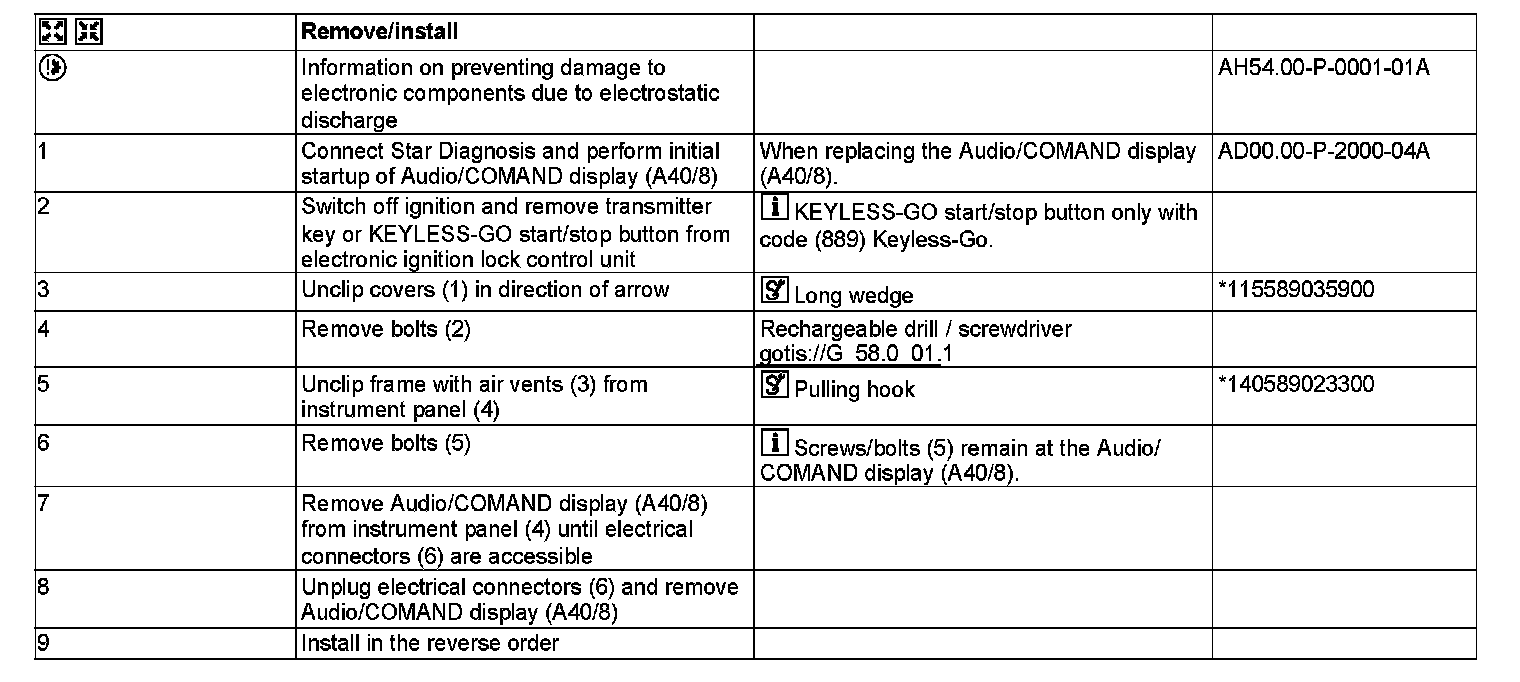

AR82.60-P-7722W Remove/Install Radio Display

AR82.60-P-7722W Remove/Install Radio Display
MODEL 172.4
- with CODE (510) Audio 20 with CD changer
- with CODE (512) COMAND APS with DVD changer
- with CODE (523) MB Audio 20 radio
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) COMAND incl. DVD changer

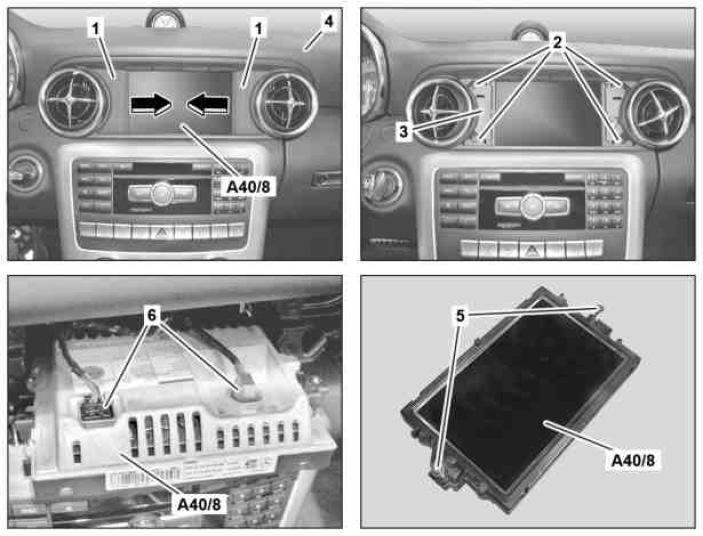

1 Cover
2 Bolts
3 Frame with air vents
4 Instrument panel
5 Bolts
6 Electrical connectors
A40/8 Audio/COMAND display








115 589 03 59 00
Long wedge





140 589 02 33 00
Pulling hook
