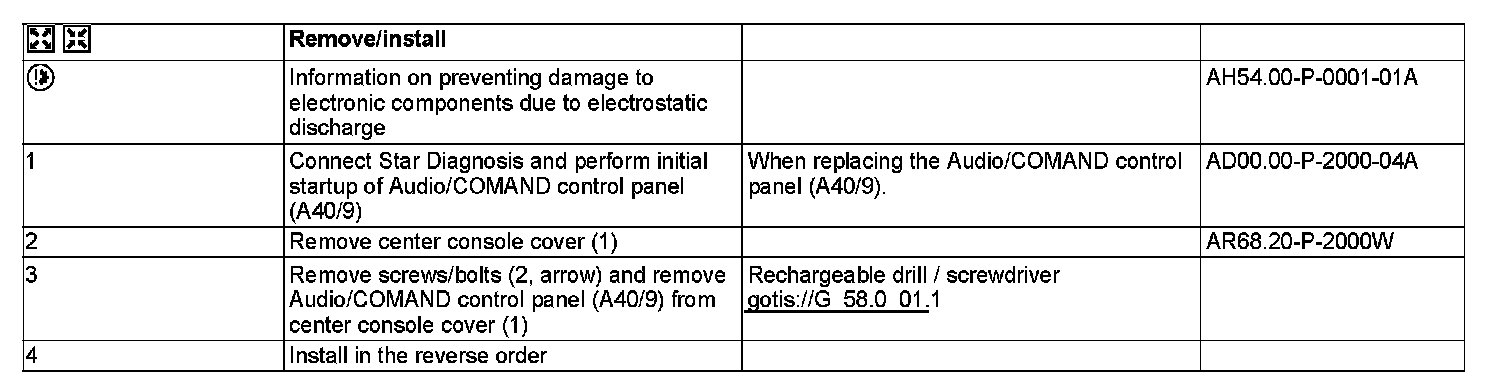

AR82.60-P-7503W Remove/Install Radio Operating Unit

AR82.60-P-7503W Remove/Install Radio Operating Unit
MODEL 172.4
- with CODE (510) Audio 20 with CD changer
- with CODE (512) COMAND APS with DVD changer
- with CODE (523) MB Audio 20 radio
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) COMAND incl. DVD changer

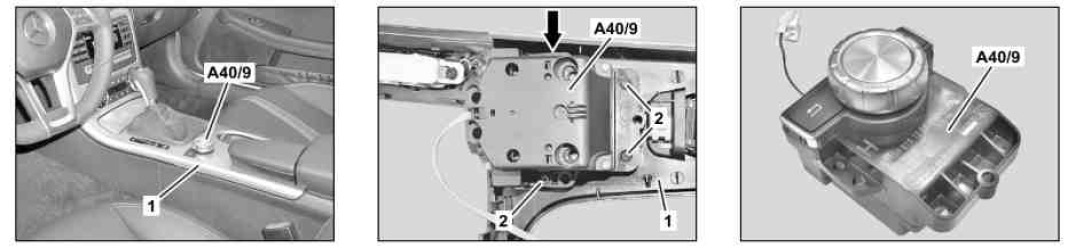

1 Center console cover
2 Bolts
A40/9 Audio/COMAND control panel
