AR82.60-P-7502W Remove/Install Radio

AR82.60-P-7502W Remove/Install Radio
MODEL 172.4
- with CODE (510) Audio 20 with CD changer
- with CODE (512) COMAND APS with DVD changer
- with CODE (523) MB Audio 20 radio
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) COMAND with DVD changer

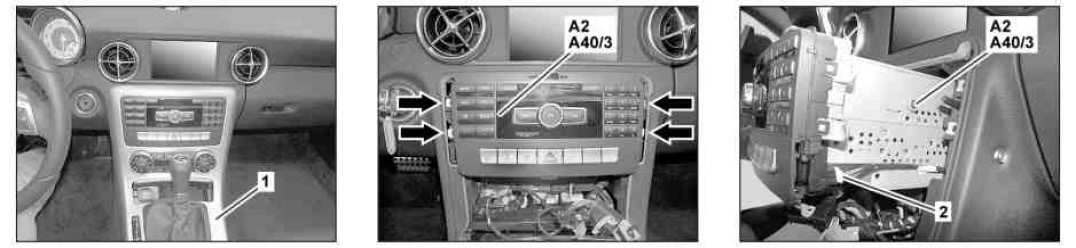

Shown with code (527) COMAND APS with single DVD drive (with navigation)
1 Center console cover
2 Electrical connector
A2 Radio (with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio)
A40/3 COMAND controller unit (with (512) COMAND APS with DVD changer or with code (527) COMAND APS with single DVD drive (with navigation) or with (528) COMAND incl. DVD changer)
