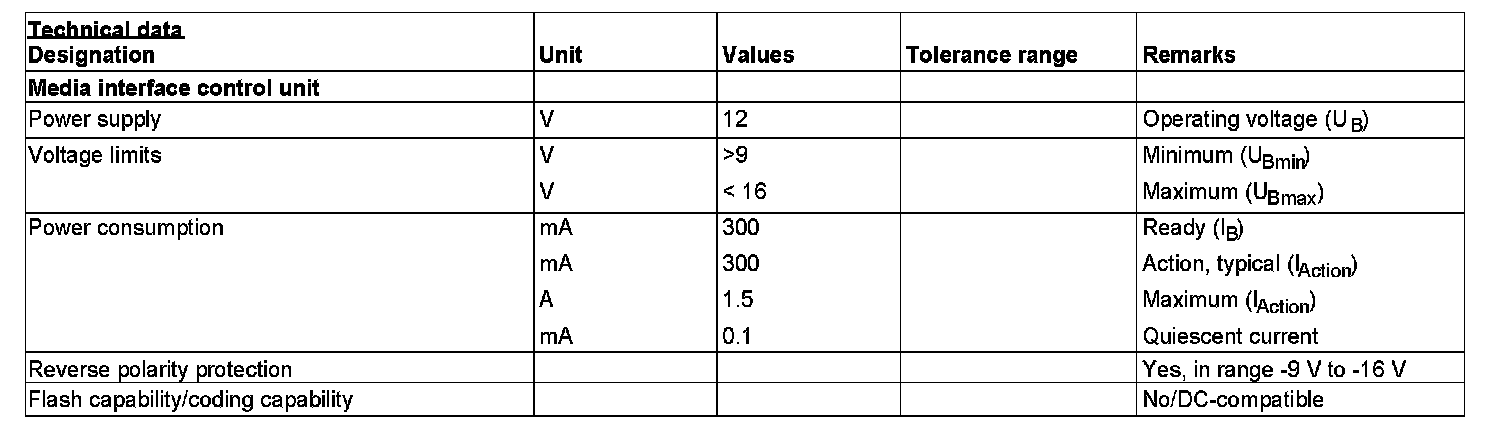

GF82.60-P-5000RD Media Interface Control Unit, Component Description

GF82.60-P-5000RD Media Interface Control Unit, Component Description
MODEL 172.4
- with CODE (518) Media interface up to model year 2013 /YoM 12





Shown with code (386) Comfort telephony

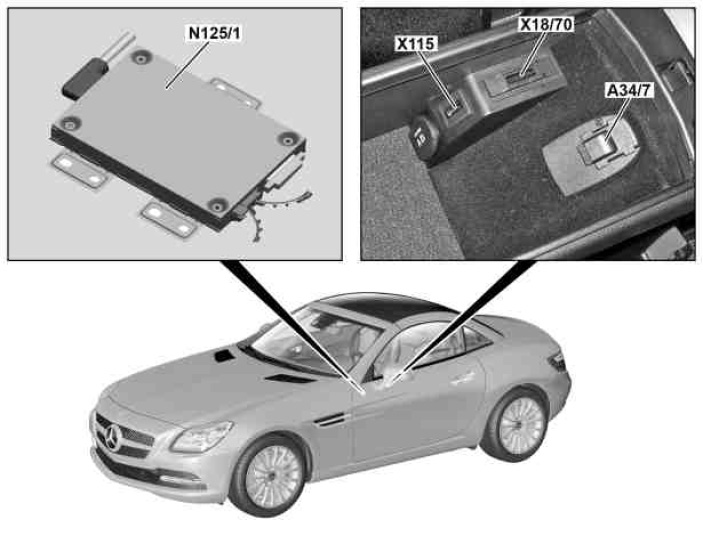

N125/1 Media interface control unit

Location
The media interface control unit is located beneath the center armrest.

Task
^ Receive signals
^ Transmit signals

Receive signals
^ Media Oriented System Transport (MOST)
^ Direct lines

Media Oriented System Transport (MOST)
- Control and operating signals from the audio equipment

Direct lines
- Power supply via circuit 31 and circuit 30g
- Audio signals and data via the media interface electrical connector (X18/70) and "Mitsumi CAM62" connector
- Electronic wake-up for MOST

Transmit signals
^ MOST
^ Direct lines

MOST
- Audio signals and data to the audio unit

Direct lines
- Power supply to media interface connector generally via the "Mitsumi CAM62" connector
- Control signals to media interface connector over "Mitsumi CAM62" connector
