AN82.85-P-0020-01W Retrofit Navigation Box

AN82.85-P-0020-01W Retrofit Navigation Box

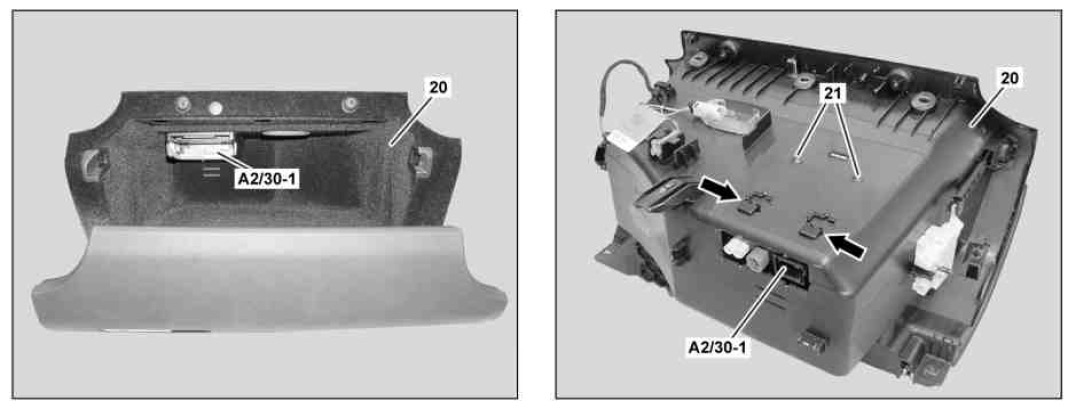

1 Break coverings (20.1) out of glove box (20).





2 Insert bracket for navigation module (A2/30-1) into cutouts (arrows) on glove box (20) and fasten with bolts (21).





3 Set down glove box (20) in front passenger footwell.
4 Join connector for low voltage differential signal (LVDS) (2.1) of LVDS wiring harness (2) to navigation module cradle.
5 Connect white 2-pin connector (12.3) of antenna line to navigation module cradle.
6 Connect black 12-pin connector (3.3) of navigation module wiring harness (3) to navigation module cradle.
