Global Positioning System Antenna: Service and Repair

AZ82.61-P-0003-02W Retrofit GPS Antenna





1 Wrap felt tape around wiring harness of global positioning system (GPS) antenna (18) of GPS antenna (A2/23).
2 Stick Velcro strip (19) onto upper side of GPS antenna (A2/23).

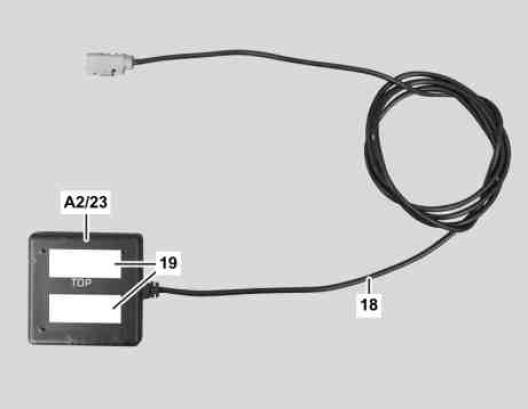

The upper side of the GPS antenna (A2/23) is marked by the inscription "TOP".





3 Remove carrier film from Velcro strip.

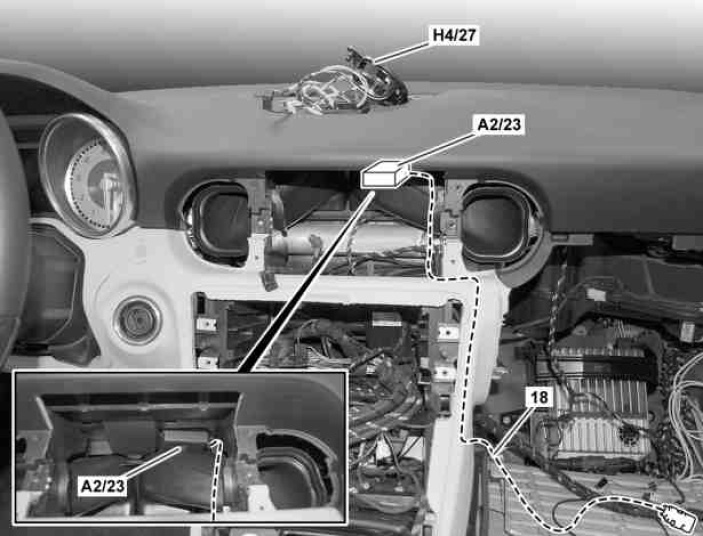

4 Stick GPS antenna (A2/23) at right next to instrument panel center speaker (H4/27) from below into instrument panel.
5 Route GPS antenna wiring harness (18) from Audio/COMAND display slot through the radio slot to the front passenger footwell.
