Television / Monitor: Diagrams

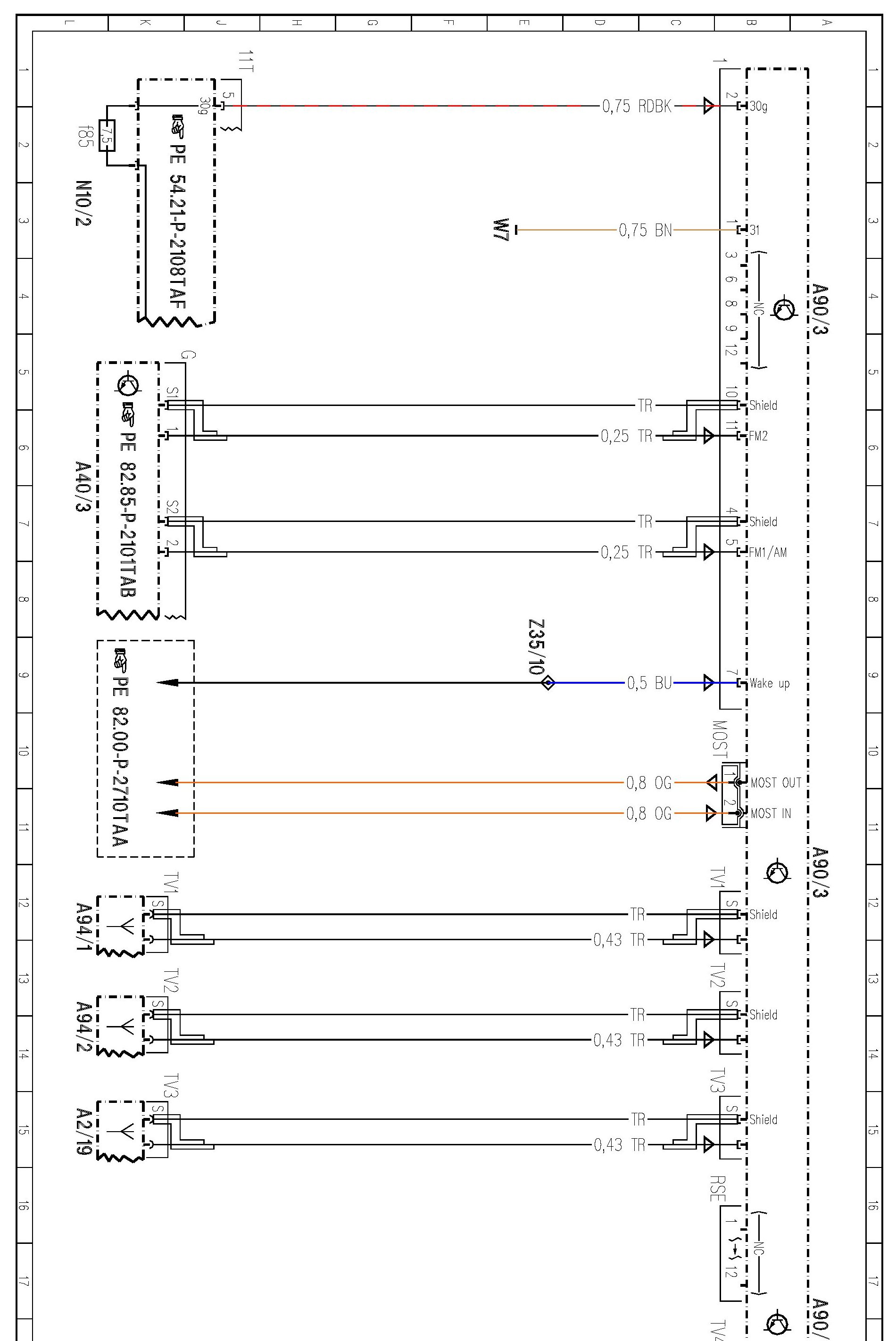

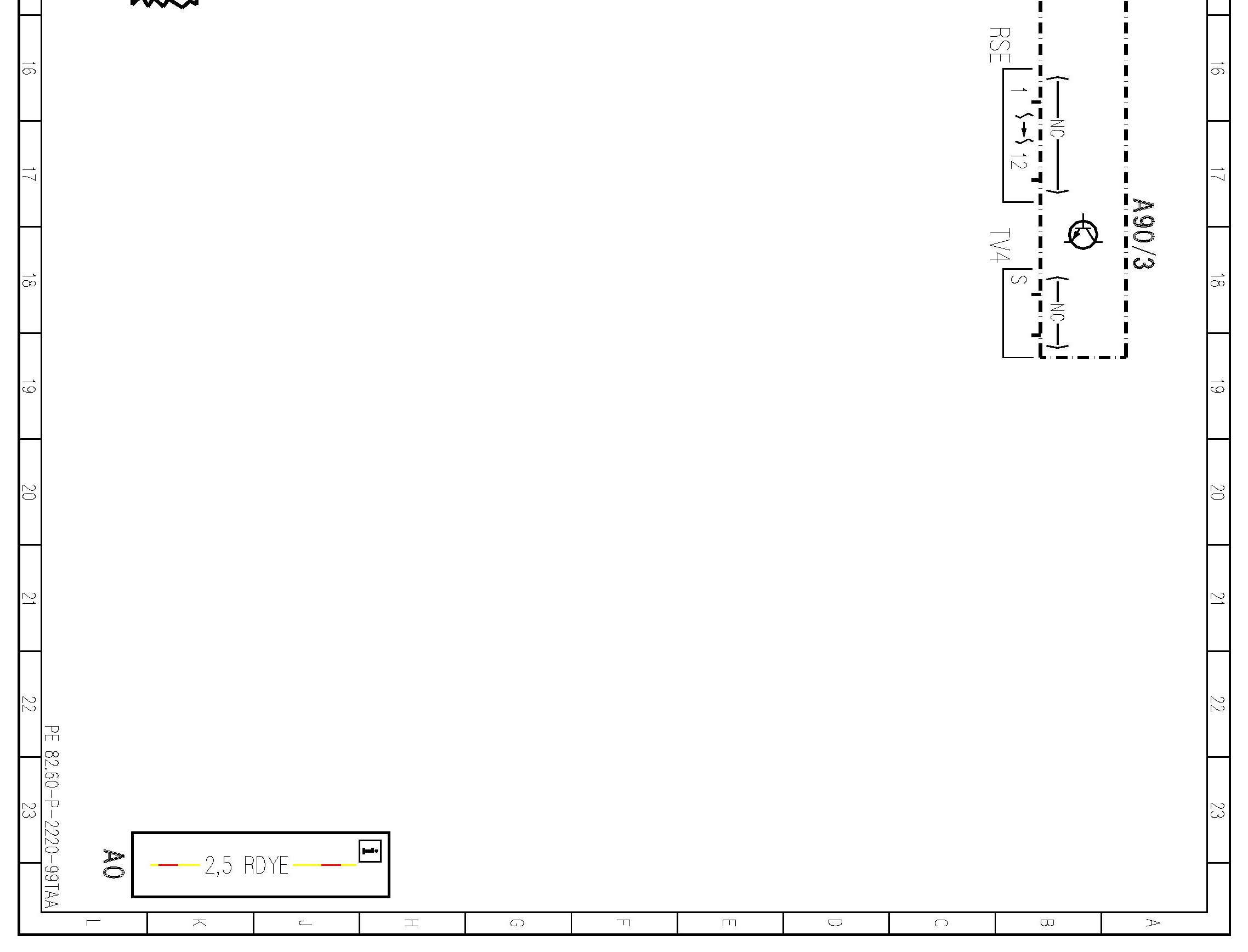

PE82.60-P-2220TAA TV Tuner Control Unit

MODEL 172.4
- with CODE (863) Digital/analog TV tuner
- with CODE (865) TV tuner
- except CODE (494) USA version
- Control unit N143






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
