AZ82.85-P-0004-05W Retrofit Universal Media Interface Connecting Cable

AZ82.85-P-0004-05W Retrofit Universal Media Interface Connecting Cable





1 Open lid of glove box (22).
2.1 Drill hole (arrow) with dia. 19 mm.
Cordless drill/driver gotis://G_58.0_01.1
On vehicles with code (518) Media interface.

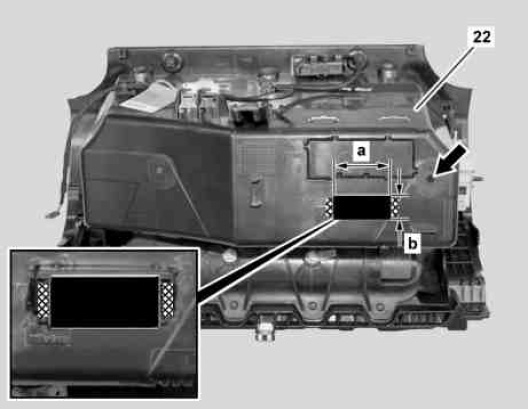

2.2 Make cutout in glove box (22).
Cordless drill/driver gotis://G_58.0_01.1
Body jig saw gotis://K_58.1_01.0
For vehicles without code (518) Media interface.
Dimensions:
A = 45 mm
B = 20 mm
3 Reduce wall thickness for glove box in cross-hatched area using square file.
On vehicles without code (518) Media interface. The wall thickness of the glove box has to be reduced such that the catch hooks of the covering for the Universal Media Interface connecting cable can latch into place.





4 Wrap felt tape around Universal Media Interface connecting cable (23) behind grommet (23.1).
On vehicles with code (518) Media Interface.

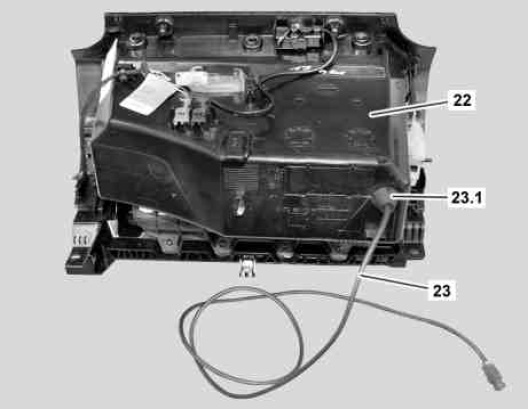

5 Route Universal Media Interface connecting cable (23) from inside through the opening in the glove box (22) and insert grommet (23.1) of Universal Media Interface connecting cable (23) from inside into glove box (22).
On vehicles with code (518) Media Interface.

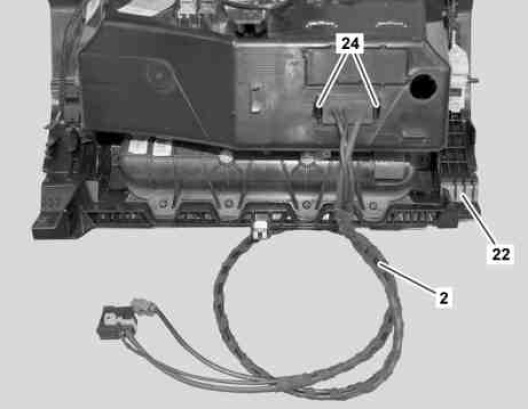

6 Route Universal Media Interface connecting cable (2) from inside through the opening in the glove box (22) and clip in covering (2.3) of Universal Media Interface connecting cable (2) from inside into glove box (22). without code (518) On vehicles Media interface.
Make sure that the catch hooks (2.4) are latched into place.
