AZ82.85-P-0004-04W Retrofit Universal Media Interface Control Unit
AZ82.85-P-0004-04W Retrofit Universal Media Interface Control Unit

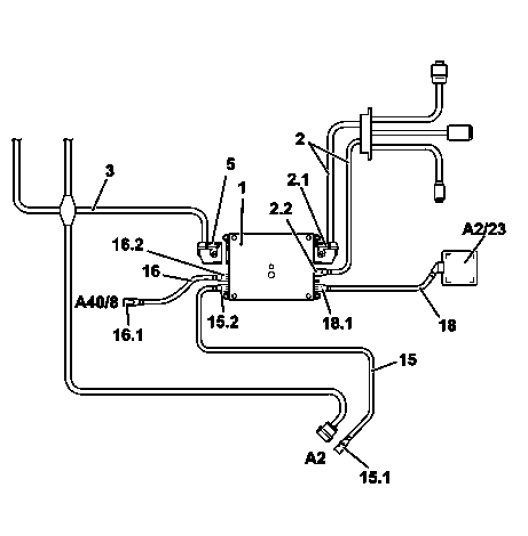

Connection scheme without code (518) Media interface
1 Universal Media Interface control unit
2 Universal Media Interface connecting cable
2.1 Black 18-pin coupling for connecting cable
2.2 Blue, 4-pin coupling for connecting cable
3 Universal Media Interface adapter wiring harness
5 White 32-pin coupling
15 Low voltage differential signal (LVDS) display wiring harness
15.1 Gray angled connector (LVDS wiring harness)
15.2 Black coupling (to Universal Media Interface control unit)
16 LVDS head unit wiring harness
16.1 Blue angled connector (head unit LVDS wiring harness)
16.2 White coupling (to Universal Media Interface control unit)
18 GPS antenna wiring harness
18.1 Pink coupling for Global Positioning System (GPS) antenna
A2 Radio
A2/23 GPS antenna
A40/8 Audio/COMAND display

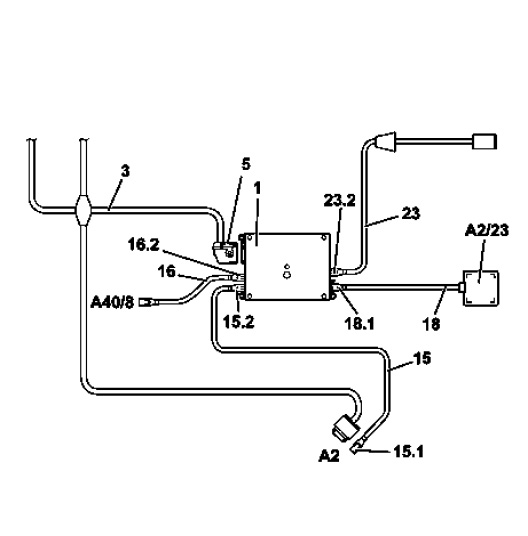

Connection scheme with code (518) Media interface
1 Universal Media Interface control unit
3 Universal Media Interface adapter wiring harness
5 White 32-pin coupling
15 LVDS display wiring harness
15.1 Gray angled connector (LVDS wiring harness)
15.2 Black coupling (to Universal Media Interface control unit)
16 LVDS head unit wiring harness
16.1 Blue angled connector (head unit LVDS wiring harness)
16.2 White coupling (to Universal Media Interface control unit)
18 GPS antenna wiring harness
18.1 Pink antenna coupling (GPS)
23 Universal Media Interface connecting cable
23.2 Blue, 4-pin coupling for connecting cable
A2 Radio
A2/23 GPS antenna
A40/8 Audio/COMAND display

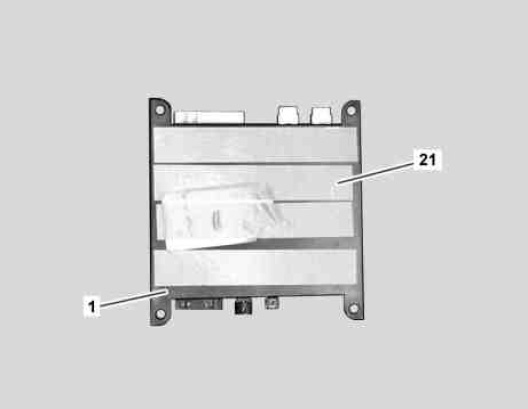

1 Stick Velcro strip (21) onto Universal Media Interface control unit (1).

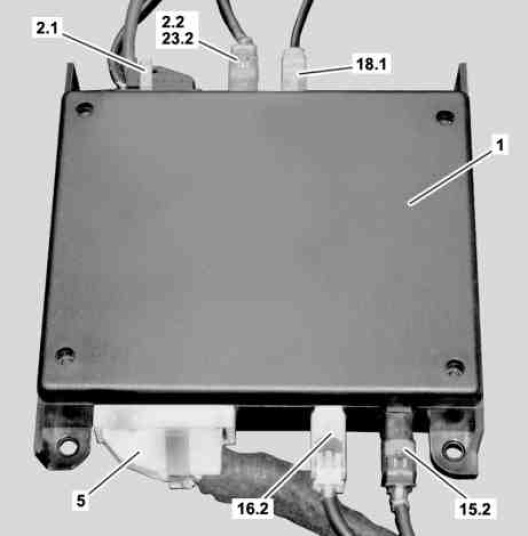

2 Connect white 32-pin coupling (5) to Universal Media Interface control unit (1).
3 Connect black coupling (15.2) and white coupling (16.2) to Universal Media Interface control unit (1).
4 Connect pink GPS antenna coupling (18.1) to Universal Media Interface control unit (1).
5 Connect black 18-pin coupling (2.1) of connecting cable to Universal Media Interface control unit (1).
Only on vehicles without code (518) Media interface.
6 Connect blue 4-pin coupling (2.2 or 23.2) of connecting cable to Universal Media Interface control unit (1).

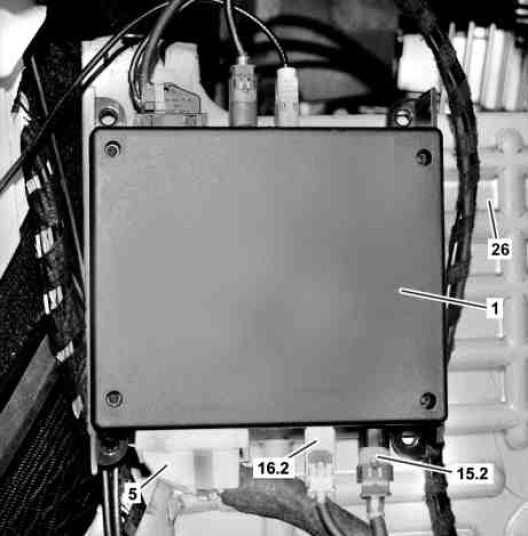

7 Stick Universal Media Interface control unit (1) to rear of front passenger footwell footrest (26).
In doing so, align the Universal Media Interface control unit (1) to the lower edge and the left outer edge. After installation of the front passenger footwell footrest (26) the black coupling (15.2), white coupling (16.2) and the white 32- pin coupling (5) must face upwards.
