AZ82.85-P-0004-02W Retrofit Universal Media Interface Adapter Wiring Harness

AZ82.85-P-0004-02W Retrofit Universal Media Interface Adapter Wiring Harness





115 589 03 59 00
Long wedge

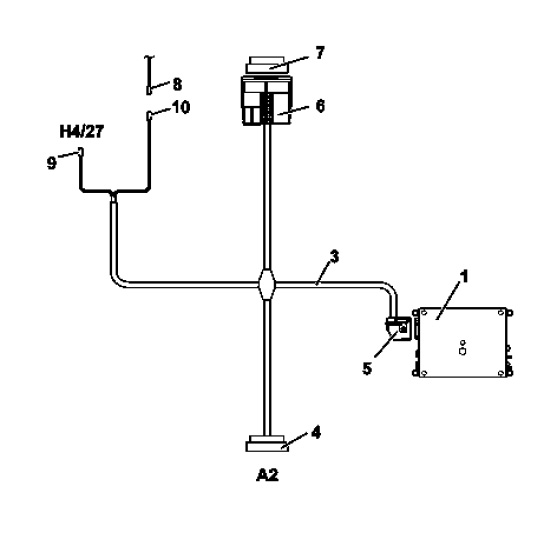

Connection scheme
1 Universal Media Interface control unit
3 Universal Media Interface adapter wiring harness
4 Black 44-pin coupling
5 White 32-pin coupling
6 Black 44-pin plug
7 Black 44-pin coupling (vehicle wiring harness)
8 Black 2-pin coupling (standard connection to center instrument panel speaker) (with code (810) Sound system)
9 Black 2-pin coupling
10 Black 2-pin plug
A2 Radio
H4/27 Center instrument panel speaker

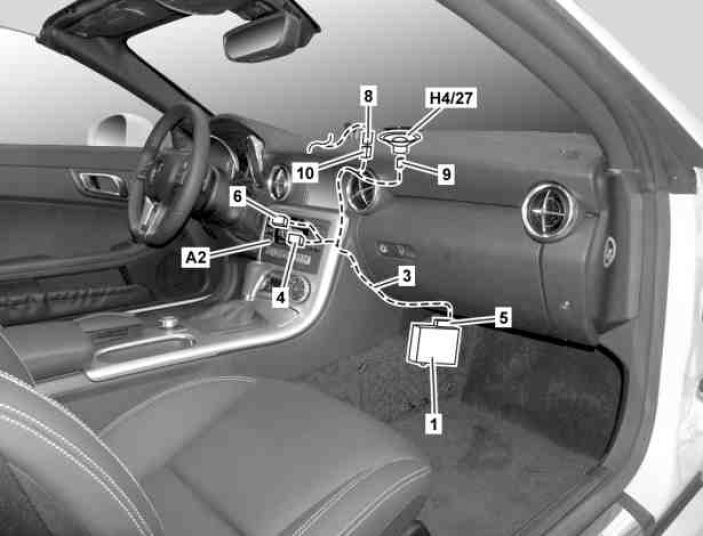

Routing diagram
1 Universal Media Interface control unit
3 Universal Media Interface adapter wiring harness
4 Black 44-pin coupling
5 White 32-pin coupling
6 Black 44-pin plug
8 Black 2-pin coupling (standard connection to center instrument panel speaker) (with code (810) Sound system)
9 Black 2-pin coupling
10 Black 2-pin plug
A2 Radio
H4/27 Center instrument panel speaker

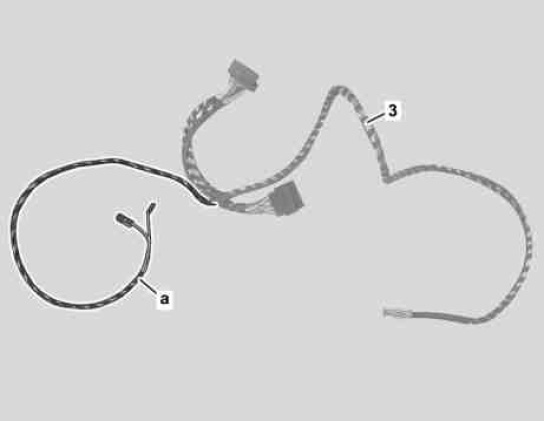

1 Wrap felt tape around branch-off line of center instrument panel speaker (a) of the Universal Media Interface adapter wiring harness (3).

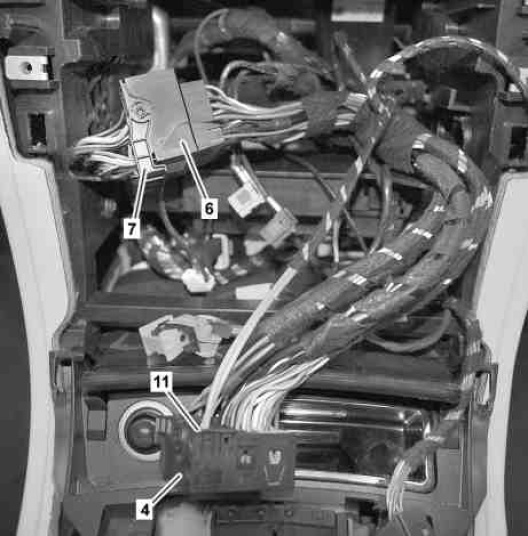

2 Connect black 44-pin plug (6) of Universal Media Interface adapter wiring harness (3) to black 44-pin coupling (7) of vehicle wiring harness.
3 Remove black, 2-pin coupling for optical fiber (11) from black, 44-pin coupling (7), and install in black, 44-pin coupling (4).
Only for vehicles with one of the following codes:
- Code (518) Media interface
- Code (810) Sound system
4 Route Universal Media Interface adapter wiring harness (3) to left lower radio recess.
The black, 44-pin coupling (4) is connected to the radio at a later stage. The Universal Media Interface adapter wiring harness (3) obstructs the installation of the radio because of its size.
The radio can only be installed if the Universal Media Interface adapter wiring harness (3) is as low down as possible in the rear area of the radio recess.

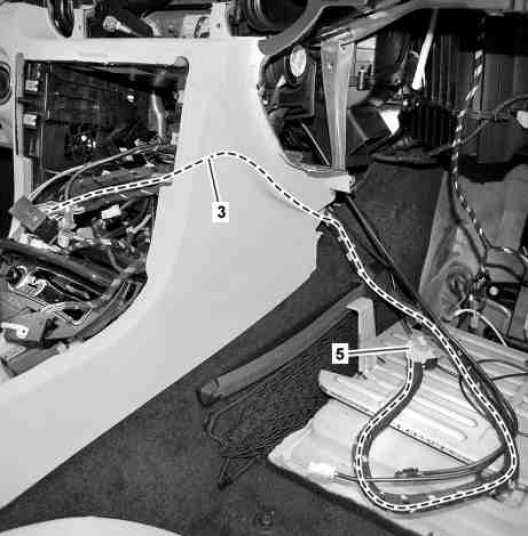

5 Route white, 32-pin coupling (5) of Universal Media Interface adapter wiring harness (3) into the front passenger footwell.
The white, 32-pin coupling (5) is connected to the Universal Media Interface control unit at a later stage.





6 Unclip covering of instrument panel center speaker (H4/27) carefully using long wedge.
7 Remove covering of instrument panel center speaker (H4/27).
8 Unclip center instrument panel speaker (H4/27) with code On vehicles (810) Sound system.

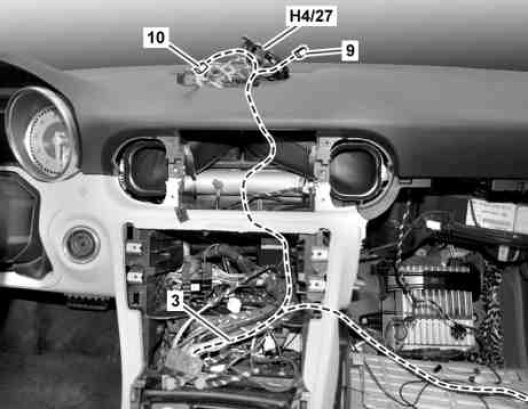

9 Route black 2-pin plug (10) and black 2-pin coupling (9) of Universal Media Interface adapter wiring harness (3) to installation location of instrument panel center speaker as shown.

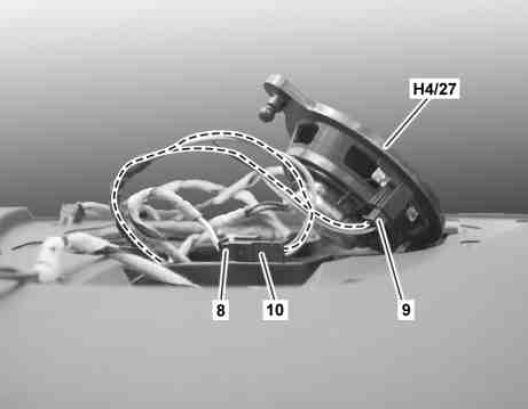

10 Detach black, 2-pin coupling (8) from center instrument panel speaker (H4/27).
On vehicles with code (810) Sound system.
11 Route black 2-pin plug (10) and black 2-pin coupling (9) of Universal Media Interface adapter wiring harness (3) out of opening at the instrument panel.
12.1 Connect black 2-pin plug (10) to black 2-pin coupling (8) of vehicle wiring harness.
On vehicles with code (810) Sound system.
12.2 Strap down black 2-pin plug (10) to branch-off line of Universal Media Interface adapter wiring harness (3) and wrap with felt tape.
In vehicles without code (810) Sound system.





13 Connect black 2-pin coupling (9) to instrument panel center speaker (H4/27).
14 Clip in center instrument panel speaker (H4/27)
For vehicles without code (810) Sound system, the instrument panel center speaker (H4/27) has to be retrofitted.
15 Install covering of instrument panel center speaker (H4/27).
