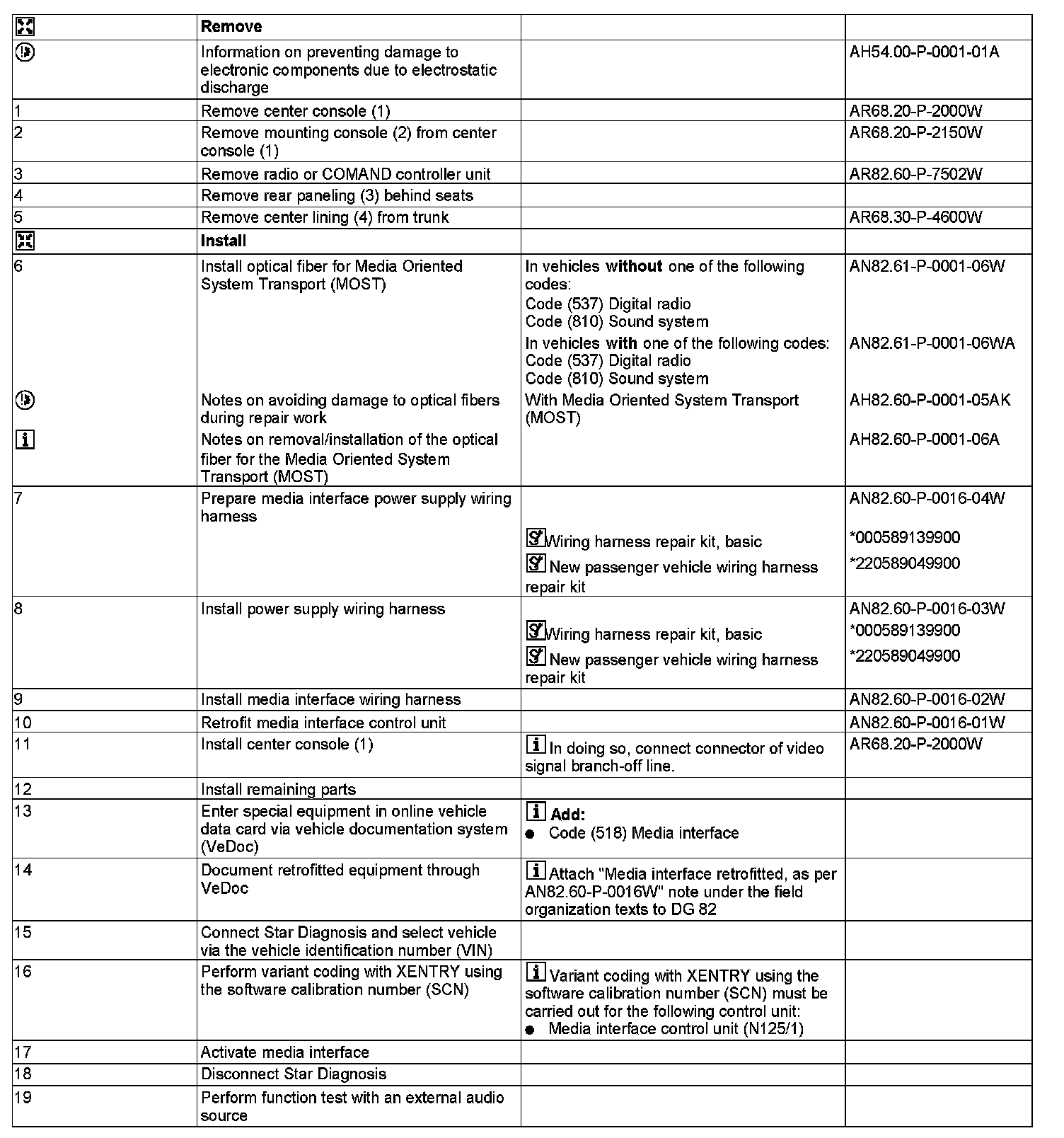

AN82.60-P-0016W Retrofit Media Interface

AN82.60-P-0016W Retrofit Media Interface
MODEL 172.4## (except 172.475) 1#
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (510) Audio 20 with CD changer
- except CODE (494) USA version
- except CODE (498) Japan version

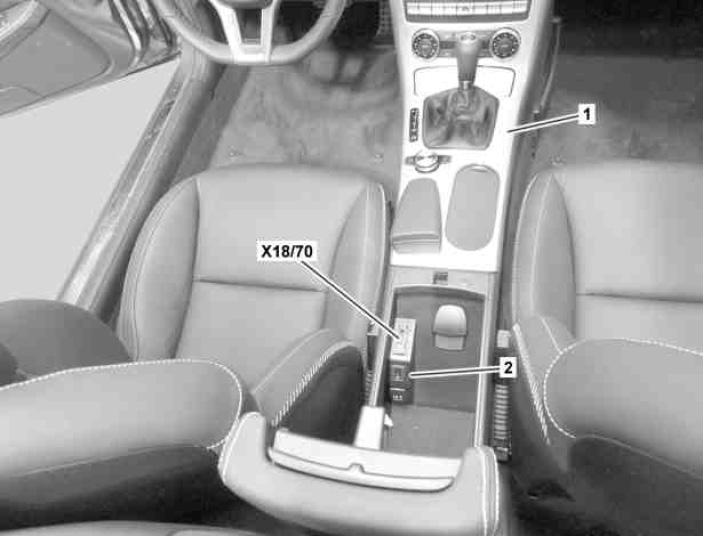

1 Center console
2 Mounting console
X18/70 Media interface electrical connector

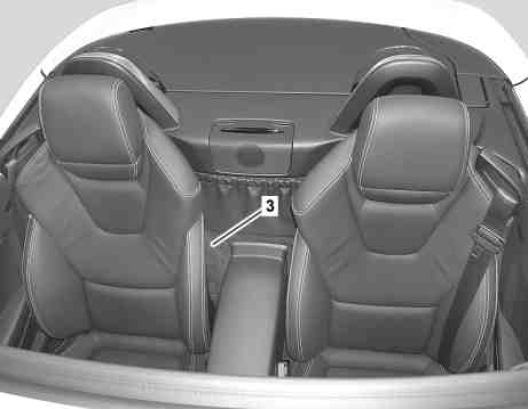

3 Rear paneling

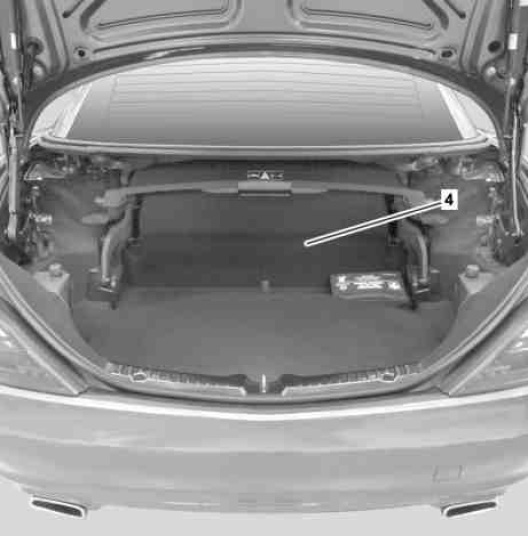

4 Center paneling

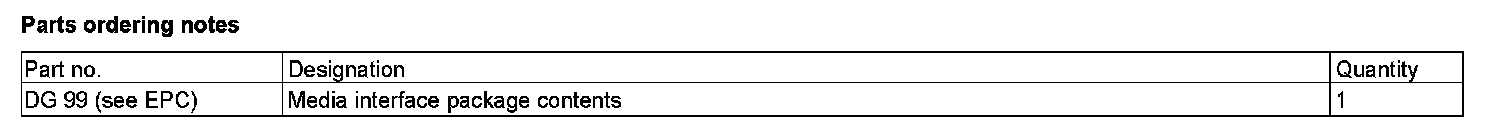

000 589 13 99 00
Wiring harness repair kit, basic





220 589 04 99 00
New passenger vehicle wiring harness repair kit
