Collision Avoidance and Parking Assist Systems: Description and Operation

GF54.65-P-5002RD Parking System Control Unit Component Description
MODEL 172.4
- with CODE (230) Advanced Parking Guidance





N62 Parking system control unit

Location

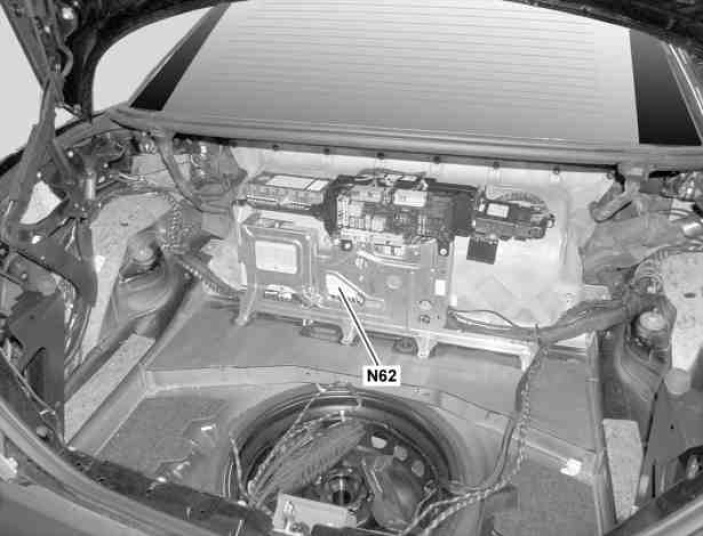

The parking system control unit is located on the equipment carrier plate in the trunk.

Task
The parking system control unit is responsible for the following tasks:
^ Control of systems
^ Reading in of sensors
^ Evaluation of input factors
^ Actuating components

Control of systems
The parking system control unit controls the exclusive parking assist functions.

Reading in of sensors
The input factors are read in via the following connections:
^ Direct line
^ Chassis CAN (CAN E)

Direct line
The signals from the following components are read via a direct line:
- Outer left front parking system distance sensor (B8/1)
- Center left front parking system distance sensor (B8/2)
- Inner left front parking system distance sensor (B8/3)
- Inner right front parking system distance sensor (B8/4)
- Center right front parking system distance sensor (B8/5)
- Outer right front parking system distance sensor (B8/6)
- Outer right rear parking system distance sensor (B8/7)
- Inner right rear parking system distance sensor (B8/8)
- Inner left rear parking system distance sensor (B8/9)
- Outer left rear parking system distance sensor (B8/10)

Chassis CAN
The following information is read-in over chassis CAN:
- Sent by the front SAM control unit with fuse and relay module (N10/1):
- Status of electric parking brake from electric parking brake control unit (N128)
- Light sensor data (B38/1) (without code (345) Rain sensor)
- Rain/light sensor data (B38/2) (with code (345) Rain sensor)
- Parking system button status (N72/1s8)
- Status of backup lamp switch (S16/2) (with transmission 716)
- Provided by the Electronic Stability Program control unit (N30/4):
- Signals from the left front axle rpm sensor (L6/1)
- Signals from the right front axle rpm sensor (L6/2)
- Signals from the left rear axle rpm sensor (L6/3)
- Signals from the right rear axle rpm sensor (L6/4)

Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Component actuation
Components are actuated with the following line:
^ Direct line

Direct line
The following components are actuated via a direct line:
- Rear parking system warning indicator (A44/3)
- Instrument panel parking system warning indicator (A44/4)
- Parking system distance sensors
