Home >> Mercedes Benz >> 2012 >> SLK 250 (172.477) L4-1.8L Turbo (271.861) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna, Phone >> Service and Repair >> AR82.95-P-0004W Remove/Install Backup Antenna For Tele-Aid Emergency Call System

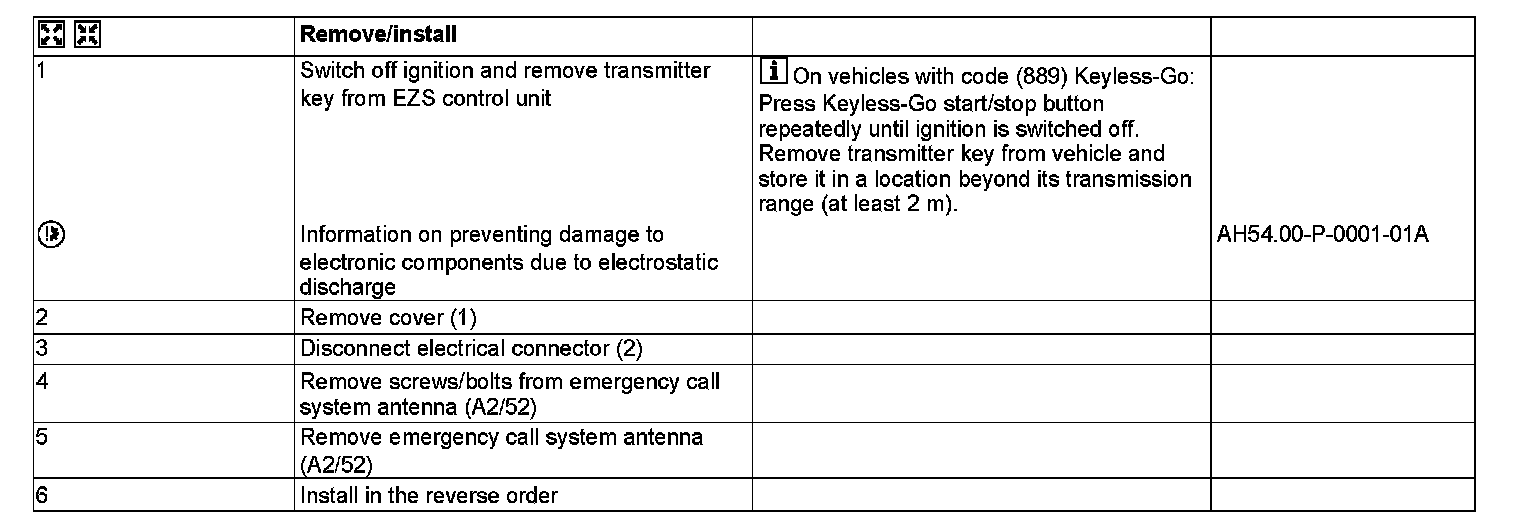

AR82.95-P-0004W Remove/Install Backup Antenna For Tele-Aid Emergency Call System




AR82.95-P-0004W Remove/Install Backup Antenna For Tele-Aid Emergency Call System
MODEL 172.4
- with CODE (494) USA version

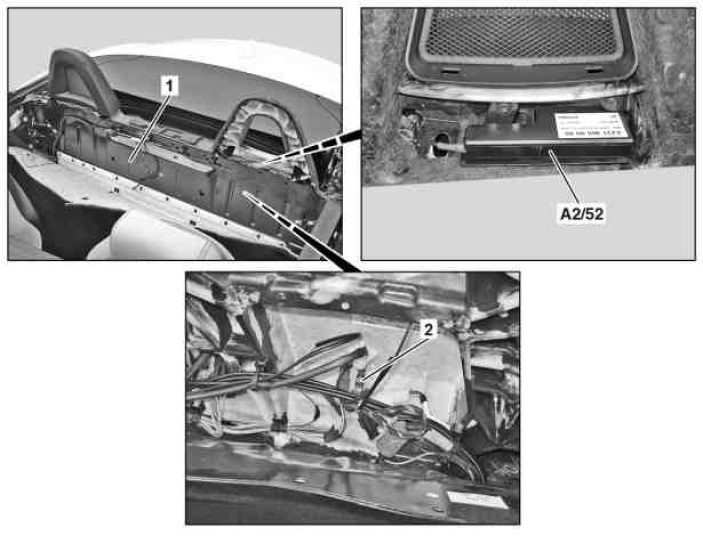

1 Cover
2 Electrical connector
A2/52 Emergency call system antenna
