AR82.70-P-8951W Remove/Install Antenna

AR82.70-P-8951W Remove/Install Antenna
MODEL 172.4
- with CODE (359) TELEAID emergency call system
- with CODE (386) Comfort telephony
- with CODE (508) Navigation box preinstallation
- with CODE (509) Navigation box
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (536) SIRIUS satellite radio

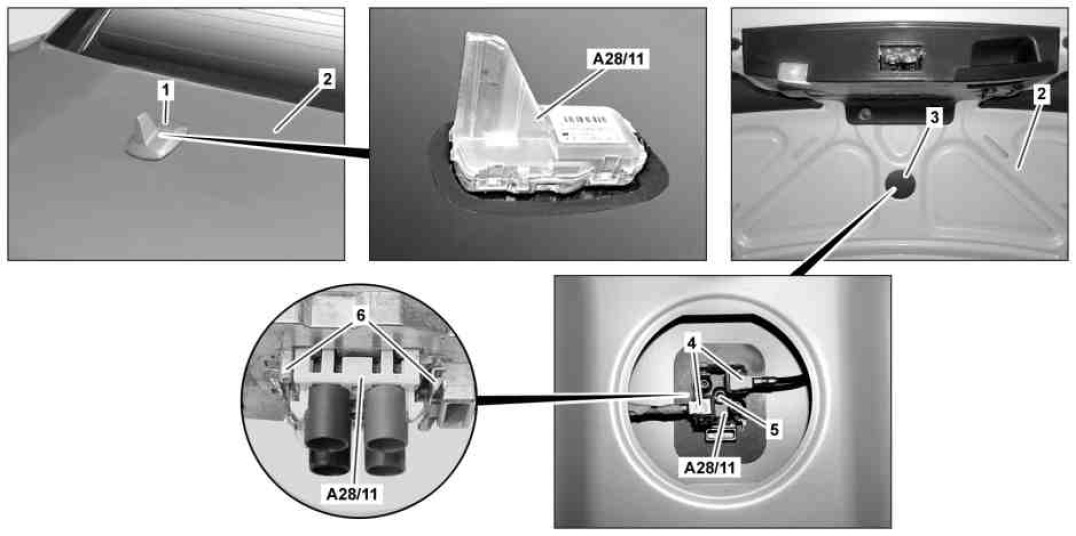

1 Multifunction antenna cover
2 Trunk lid
3 Cover
4 Electrical connectors
5 Screw
6 Retaining clip
A28/11 Multifunction antenna
