AN82.85-P-0020-03W Retrofit Antenna Signal Splitter

AN82.85-P-0020-03W Retrofit Antenna Signal Splitter

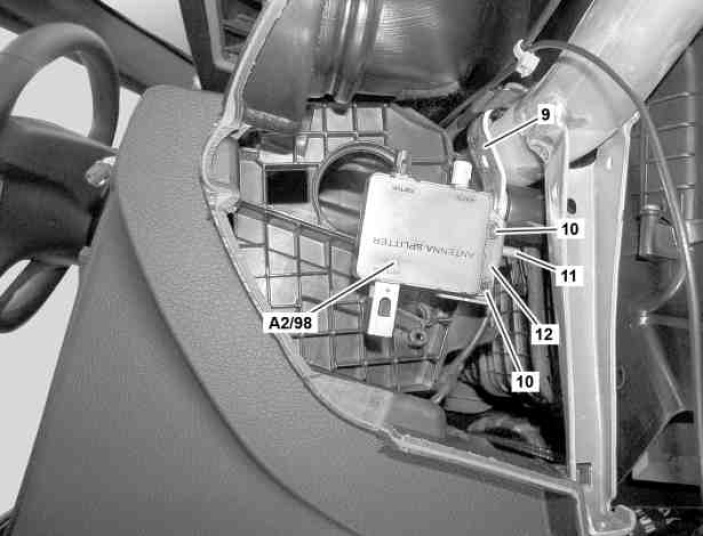

1 Fasten bracket (12) using bolt (11), as shown, to carrier (9).
2 Tighten FM/TMC antenna splitter (A2/98) on bracket (12) using bolts (10).
