Removal and Replacement

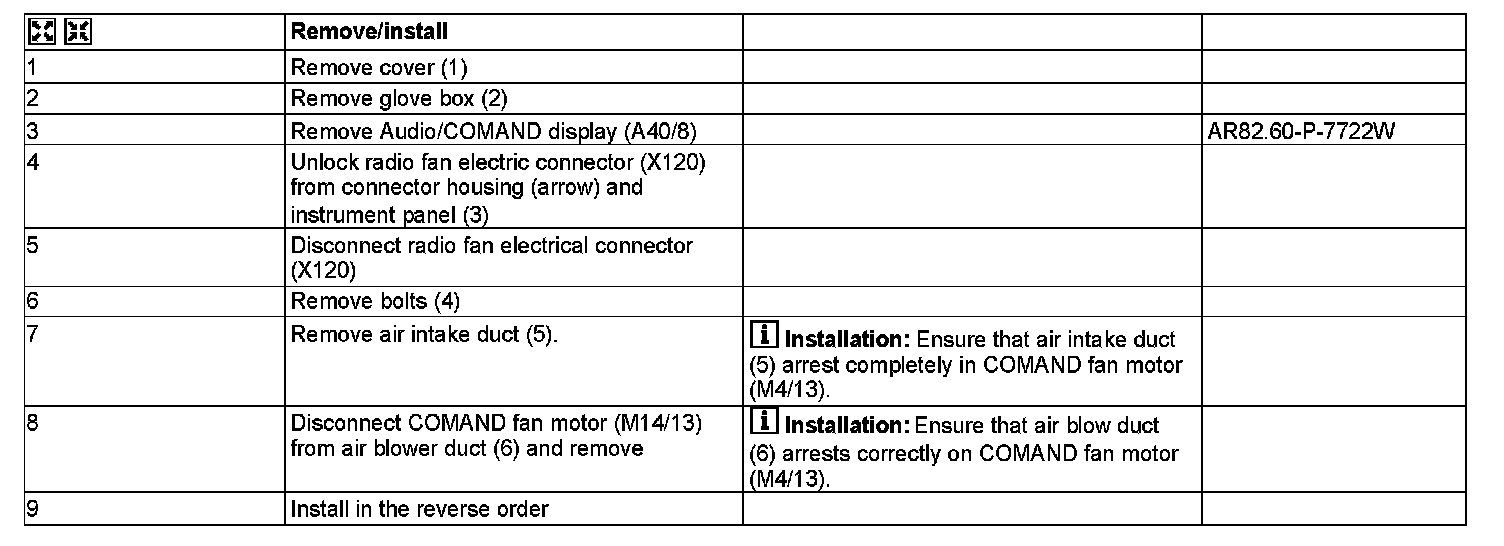

AR82.85-P-0005W Remove/Install Additional Fan For COMAND
MODEL 172.4
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)

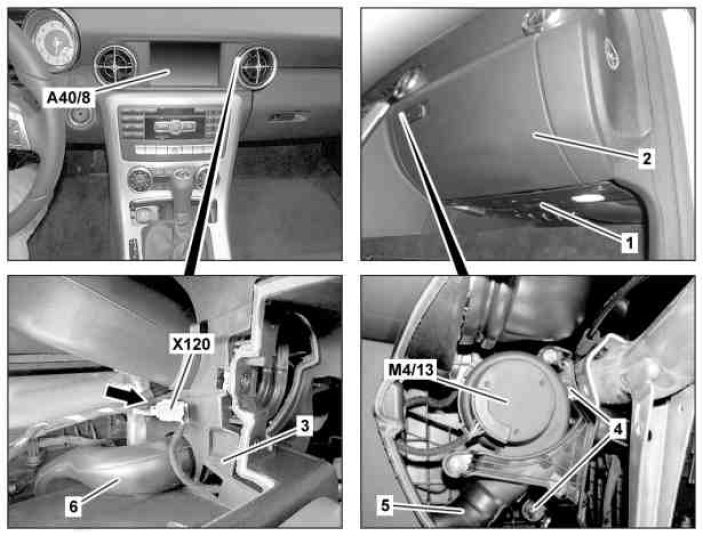

1 Cover
2 Glove compartment
3 Instrument panel
4 Bolts
5 Air intake duct
6 Air blower duct
A40/8 Audio/COMAND display
M4/13 COMAND fan motor
X120 Radio fan electrical connector
