AN82.85-P-0005-01W Install Additional Fan For COMAND

AN82.85-P-0005-01W Install Additional Fan For COMAND

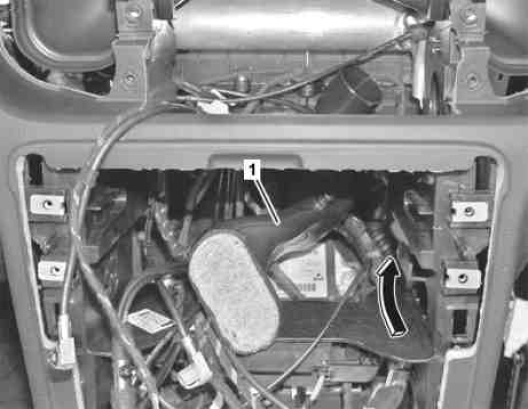

1 Guide air intake duct (1) through slot of COMAND controller unit into instrument panel in direction of arrow.
The air intake duct (1) must be guided upward between slot of COMAND controller unit and air conditioner housing.

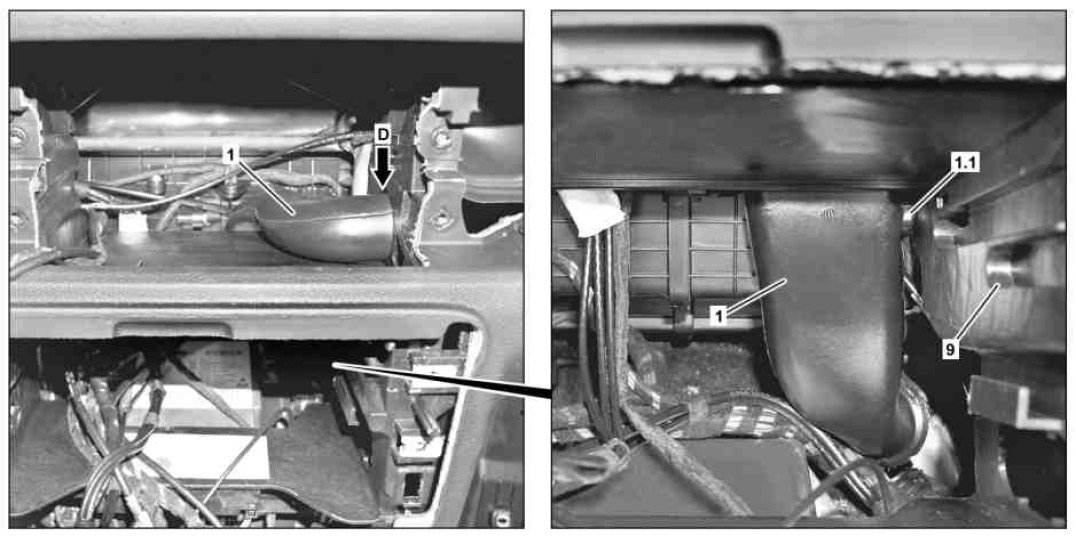

2 Position air intake duct (1), as shown, and clip guide (1.1) into slot (9) of COMAND controller unit.
3 Insert air intake duct (1) in upper section into opening in slot (9) of COMAND controller unit.

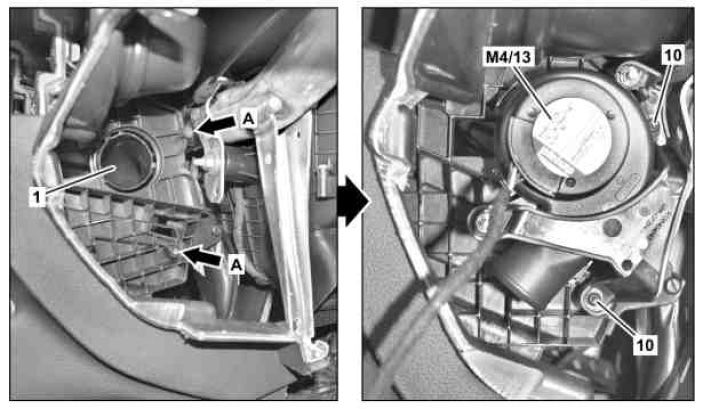

4 Insert COMAND fan motor (M4/13) into guides on air intake duct (1) and twist to the left.
5 Align COMAND fan motor (M4/13) with attachment points (arrows A) and secure with screws/bolts (10).

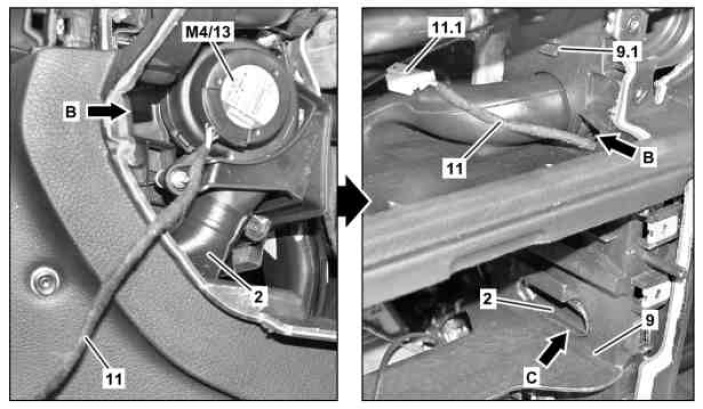

6 Slide air exhaust duct (2) onto COMAND fan motor (M4/13) and clip into lower section (arrow C) of slot (9) of COMAND controller unit.
7 Route wiring harness (11) of COMAND fan motor (M4/13), as shown, through opening (arrow B) to bracket (9.1).
8 Clip white 4-pin connector (11.1) into bracket (9.1).
