AN82.85-P-0004W Retrofit COMAND APS With DVD Changer

AN82.85-P-0004W Retrofit COMAND APS With DVD Changer
MODEL 172.4## (except 172.475) 1#
- with CODE (523) MB Audio 20 radio
- with CODE (510) Audio 20 with CD changer
- except CODE (527) COMAND APS with single DVD drive (with navigation)
- except CODE (494) USA version
- except CODE (498) Japan version

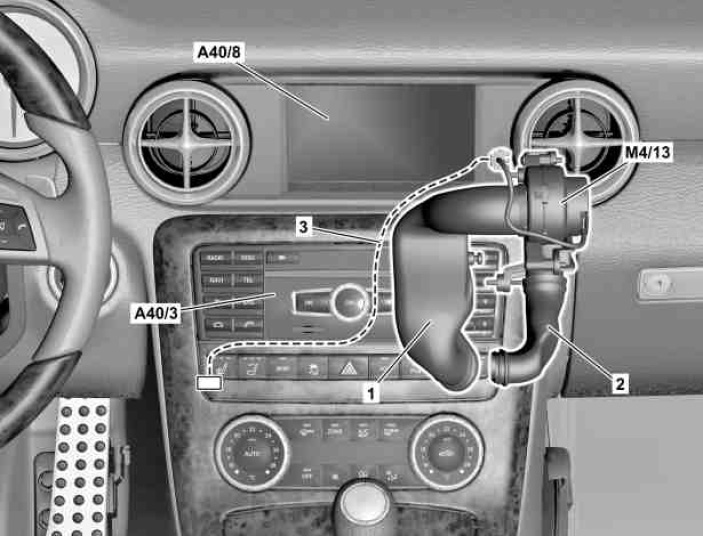

1 Air intake duct
2 Air exhaust duct
3 Wiring harness
A40/3 COMAND control unit
A40/8 Audio/COMAND display
M4/13 COMAND fan motor








110 589 03 59 00
Mounting wedge
