AN82.85-P-0003W Retrofit COMAND With APS Navigation System

AN82.85-P-0003W Retrofit COMAND With APS Navigation System
MODEL 172.4## (except 172.475) 1#
- with CODE (523) MB Audio 20 radio
- with CODE (510) Audio 20 with CD changer
- except CODE (512) COMAND APS with DVD changer
- except CODE (494) USA version
- except CODE (498) Japan version

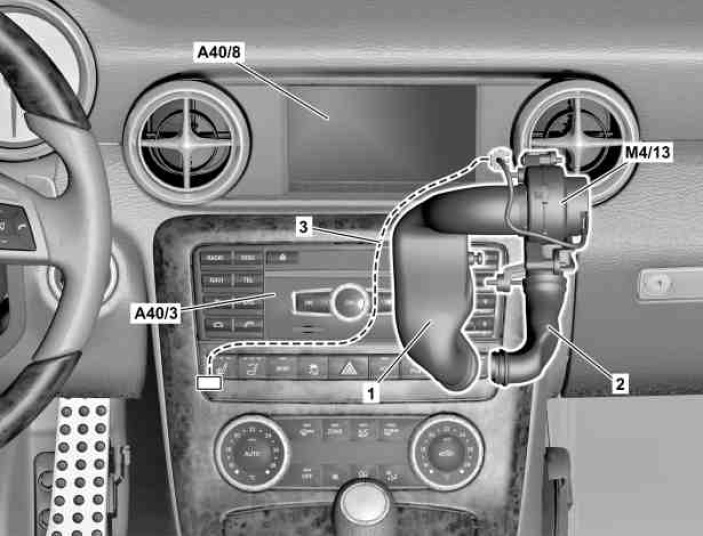

1 Air intake duct
2 Air exhaust duct
3 Wiring harness
A40/3 COMAND control unit
A40/8 Audio/COMAND display
M4/13 COMAND fan motor








110 589 03 59 00
Mounting wedge
