GF54.30-P-6150RD Component Description For Audio/COMAND Display

GF54.30-P-6150RD Component Description For Audio/COMAND Display
MODEL 172.4





Shown with code (512) COMAND APS with DVD changer
A40/8 Audio/COMAND display

Location
The Audio/COMAND display is installed at the top center of the instrument panel.

Task
All navigation, operation and information data are shown in the Audio/COMAND-display.
The Audio/COMAND display also has the following tasks:
^ Reading in of signals
^ Evaluation of input factors

Reading in of signals
The input factors are read in and displayed via the following connections:
^ Telematics CAN (CAN A)
^ Low voltage differential signal (LVDS) connection

Telematics CAN
The Audio/COMAND display receives control signals (e.g. brightness, on or off display) over the telematics CAN.

LVDS connection
The Audio/COMAND display receives all of the information required display the content from the audio equipment via the LVDS interface.

Evaluation of input factors
The input factors are evaluated by the integrated microprocessor and the relevant components are then actuated internally.

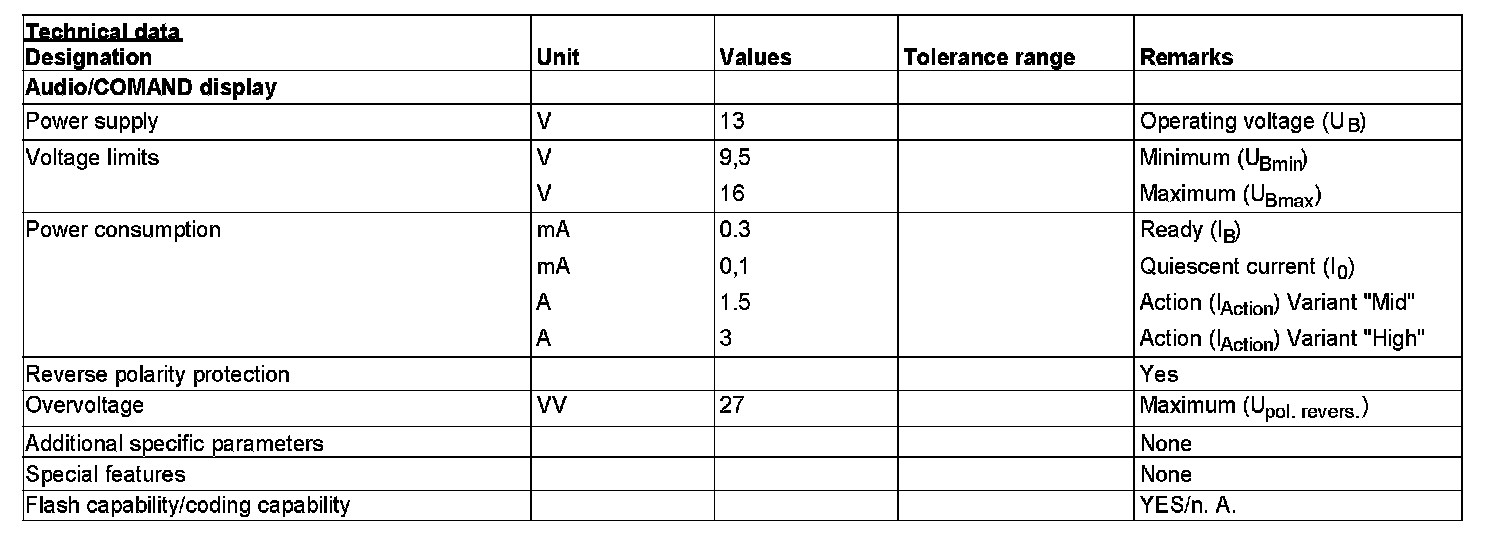

Variants
"ENTRY" variant (with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio):
- Fixed 5.8 T FT color screen
- 400x240 pixel resolution
"High" variant (with code (527) COMAND APS with single DVD drive (with navigation) or code (512) COMAND APS incl. DVD changer):
- Fixed 7 T FT color screen
- 800x480 pixel resolution
