AR72.10-P-1800SXS Remove/Install Front Door Window Lifter

AR72.10-P-1800SXS Remove/Install Front Door Window Lifter
MODEL 221.1
- with CODE (Z07) Top protection with hydraulic power windows

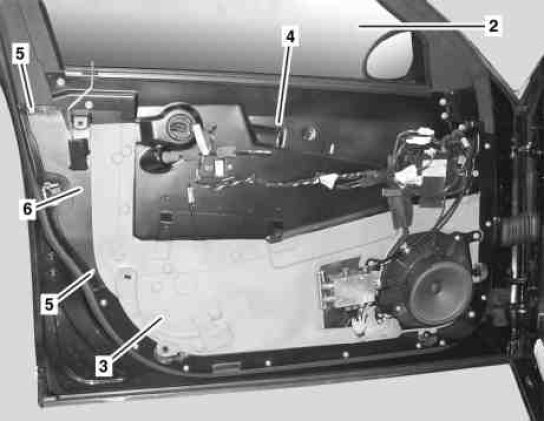

2 Crank window
3 Door foil
4 Inner door panel
5 Screw
6 Door lock armor plate

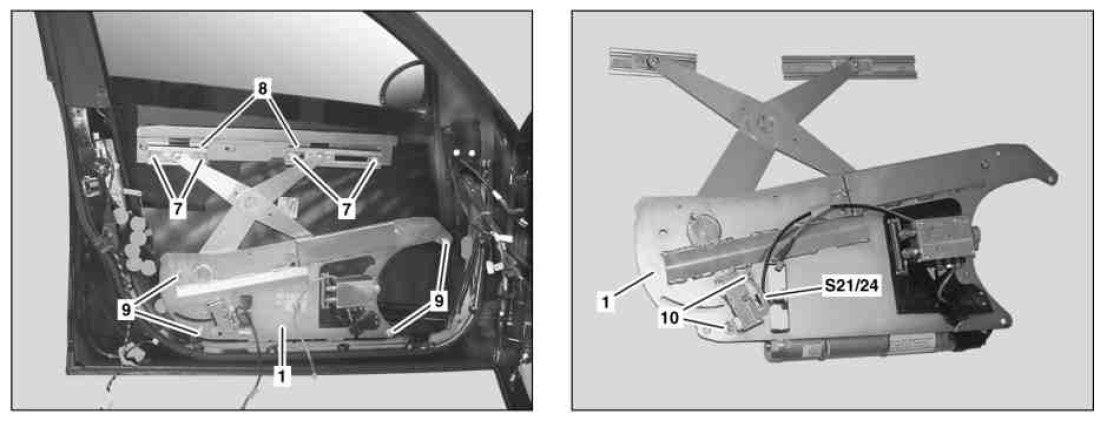

1 Power window
7 Bolts
8 Retaining rails
9 Bolts
10 Bolts

S21/24 Hydraulic power window doors limit switch














220 589 04 31 00
Chuck
