Home
>>
Mercedes Benz
>>
2012
>>
S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Motor
>>
Service and Repair
Wiper Motor: Service and Repair
AR82.30-P-6800SX Remove/Install
Wiper Motor
Component Identification:

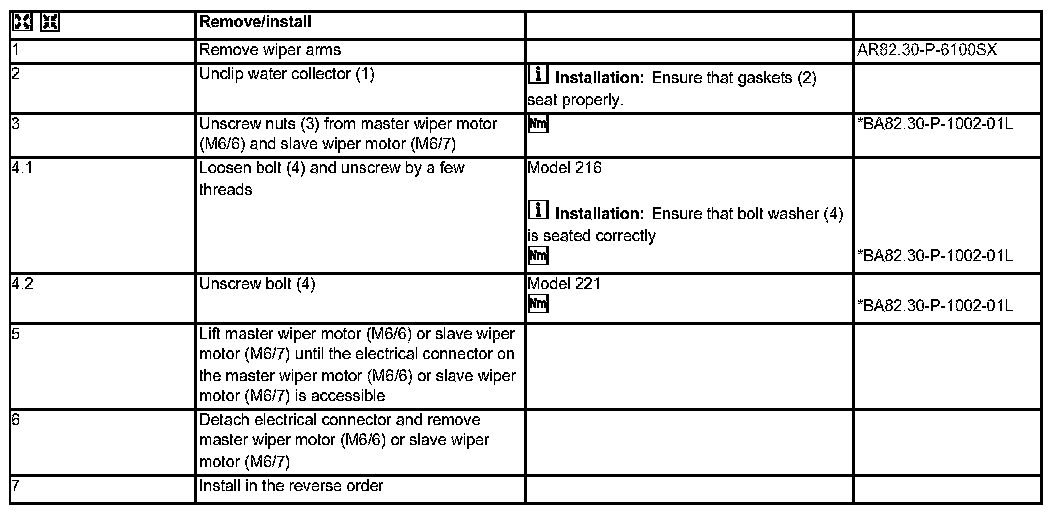

Steps 1 - 7:
Windshield Wiper:
