Wiper Blade: Testing and Inspection



AP82.30-P-8253SX Inspect Wiper Blade


Component Identification:

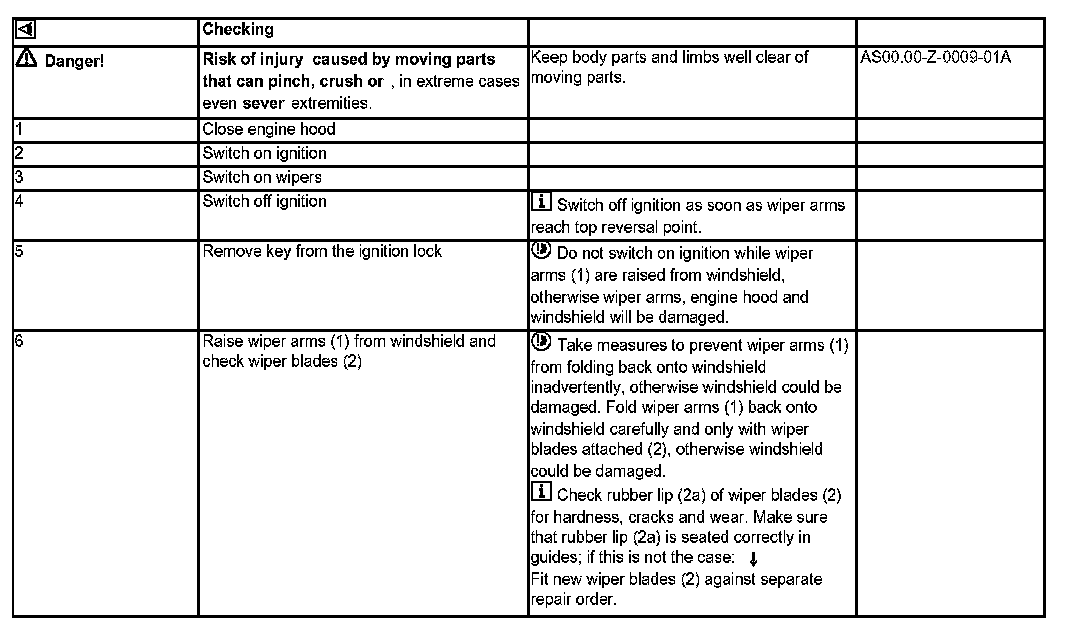

Steps 1 - 6:
