Wiper Arm: Testing and Inspection

AR82.30-P-6000-01SX Check Wiper Arms

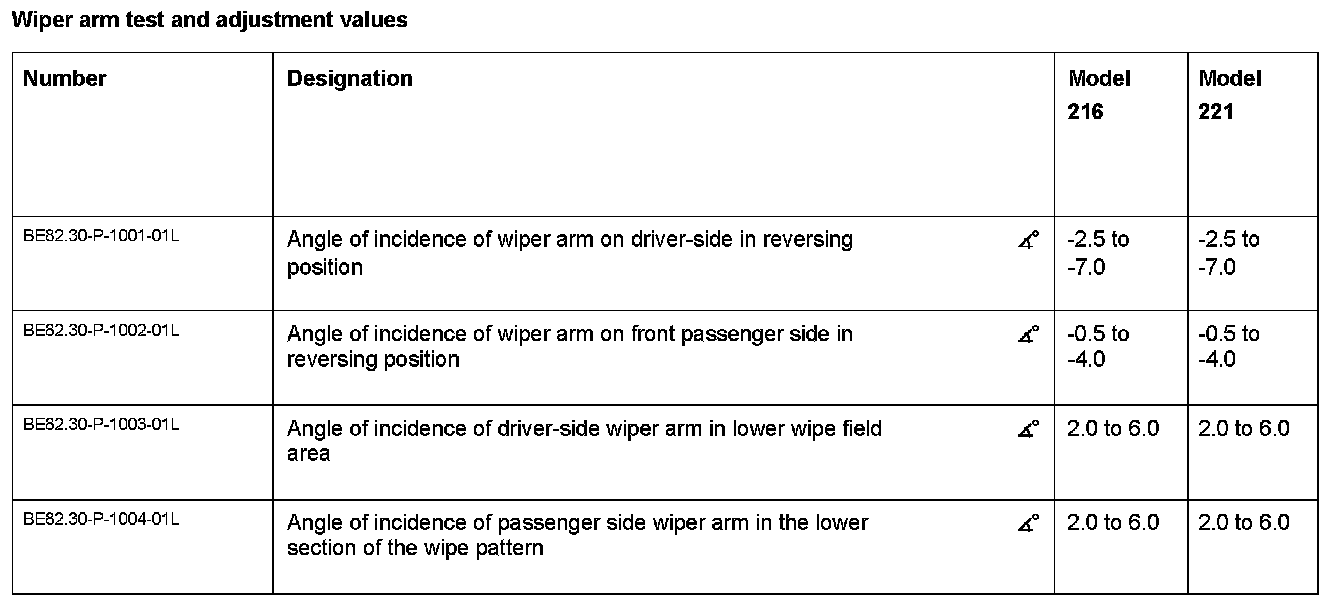

Wiper Arm Test And Adjustment Values:

Special Tools:

The driver-side wiper arm and the passenger side wiper arm, in the lower section of the wipe pattern, has to be checked at a distance of approx. 100 mm (driver-side wiper arm) or approx. 70 mm (passenger side wiper arm) to the water collector.

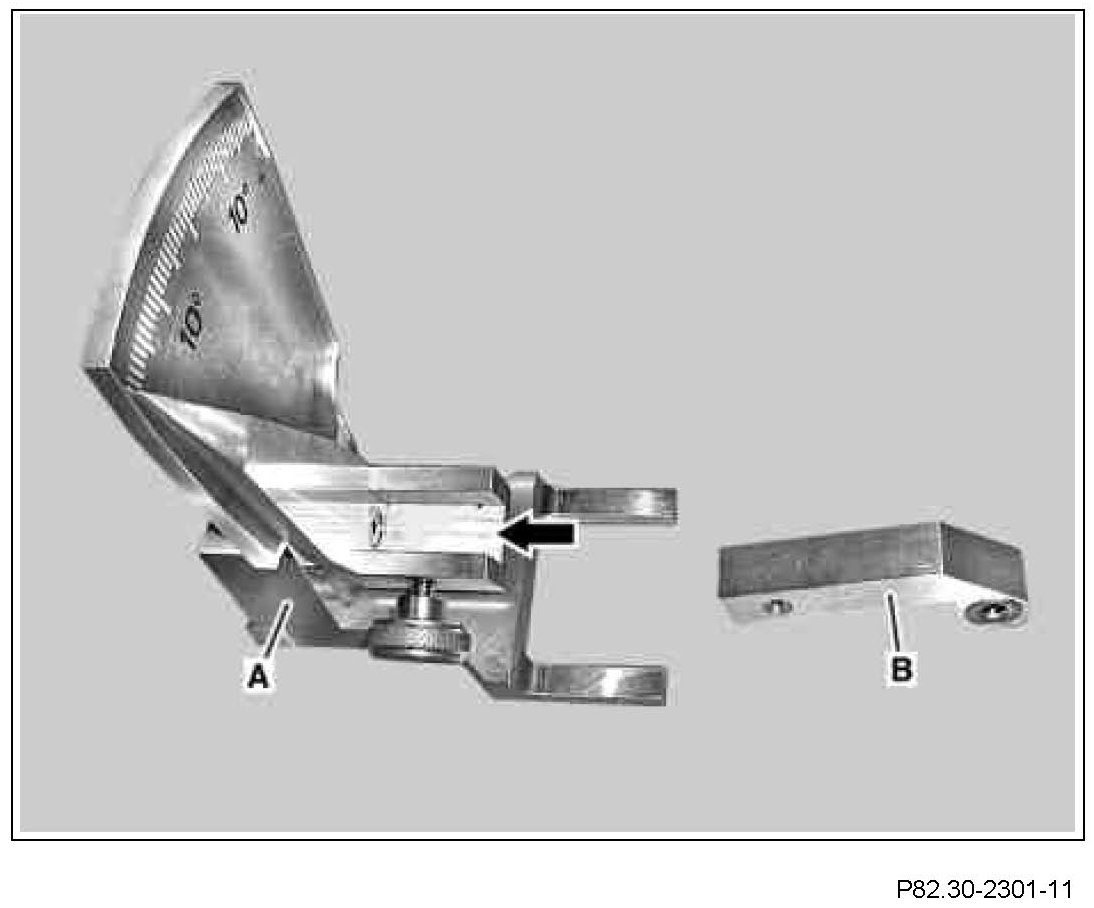

1 Insert adapter (B) into the guide (arrow) of the angle measuring device (A) and fasten with knurled bolt to angle measuring device (A).

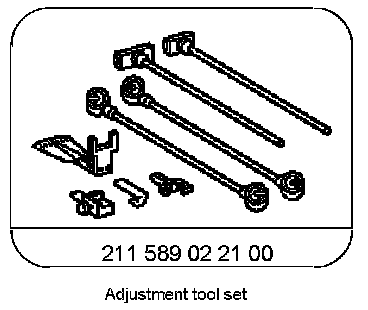

Use adapter (B) and angle measuring device (A) from the adjustment tool set.

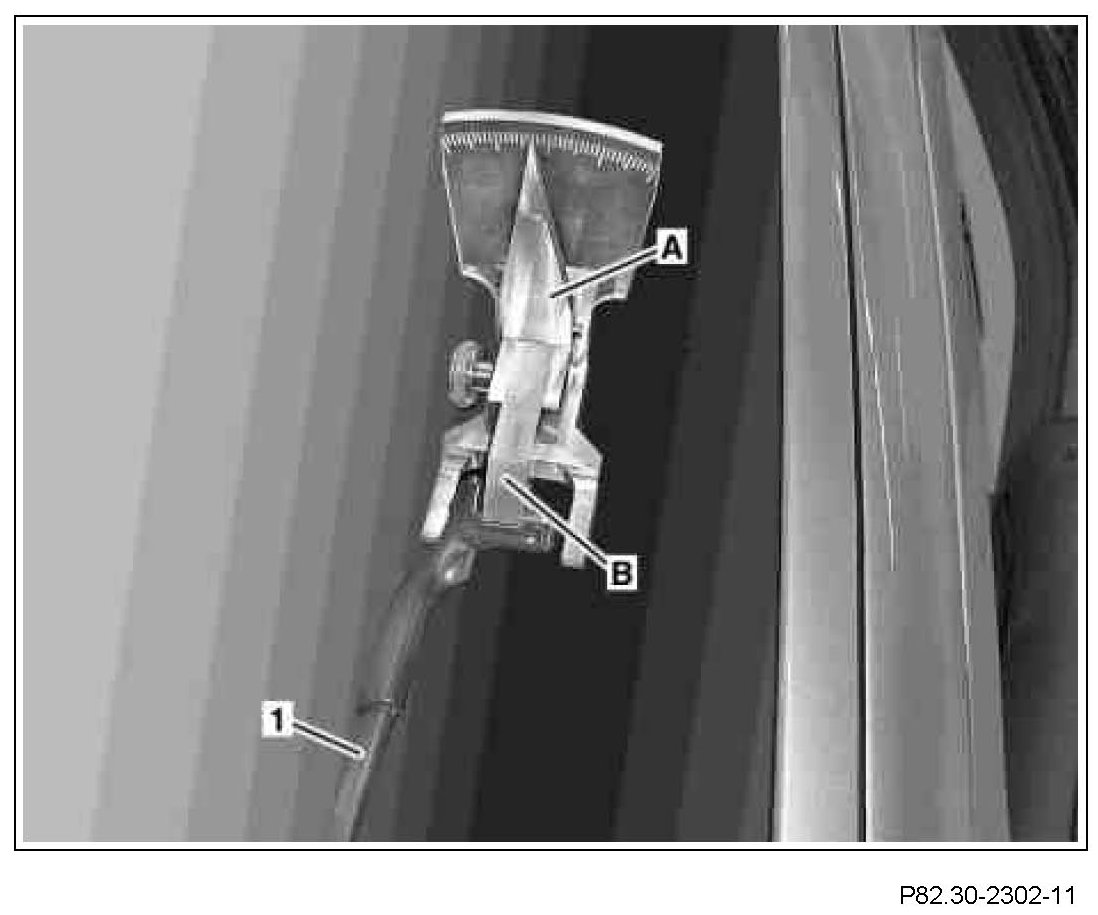

Shown on driver-side wiper arm (1) in reverse position

2 Slide adapter (B) with the choke angle gauge (A) onto the wiper blade mount of the driver-side wiper arm (1).
3 Lower driver-side wiper arm (1) until all three contact points of the base of the angle measuring device (A) touch the windshield.
4 Read angle of incidence of driver-side wiper arm (1) off of scale of angle measuring device (A), write it down, and compare it to the corresponding test and adjustment value. On right-hand drive vehicles, the sign of the corresponding test and adjustment values has to be changed.






5 Lift driver-side wiper arm (1) and remove choke angle gauge (A).
6 Perform testing procedure for passenger side wiper arm.
7 Lift driver-side wiper arm (1) and passenger side wiper arm, manually move it in the direction of the park position and put it down in the lower section of the wipe pattern with a distance of approx. 100 mm (driver-side wiper arm (1)) or approx. 70 mm (passenger side wiper arm) to the water collector.
8 Check angle of incidence of driver-side wiper arm (1) and passenger side wiper arm in lower section of wipe pattern. Do not move driver-side wiper arm (1) and passenger side wiper arm too far in the direction of the park position with the angle measuring device (A), otherwise the paintwork of the engine hood can be damaged.
