Wiper Arm: Service and Repair
AR82.30-P-6100SX Remove And Install
Wiper Arm

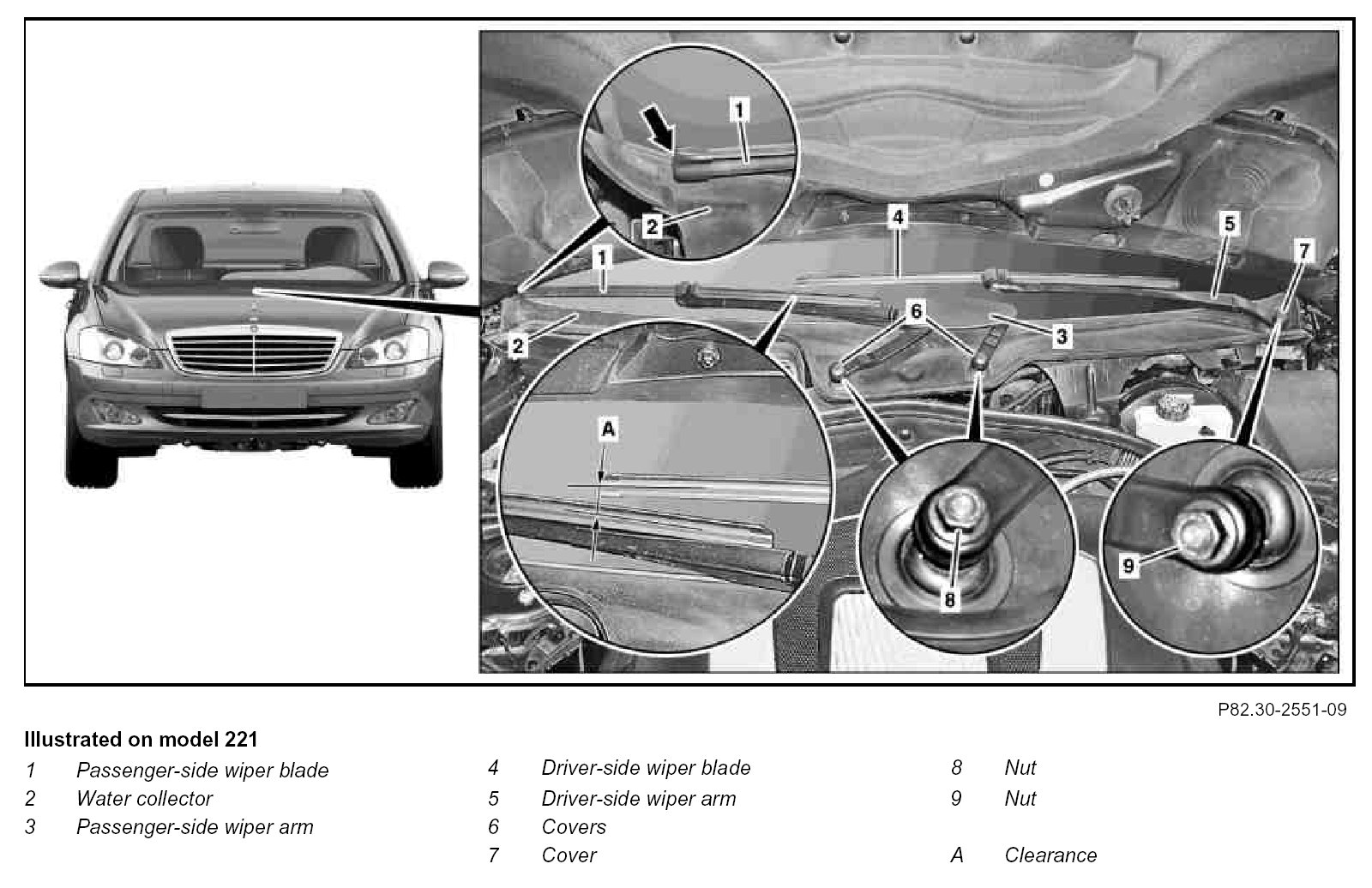

Component Identification:

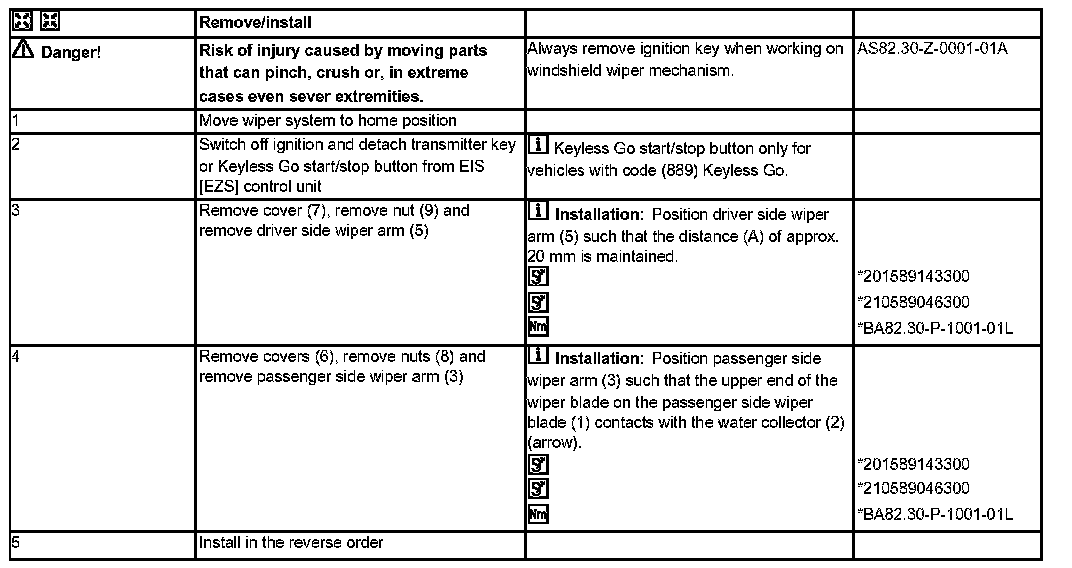

Steps 1 - 5:

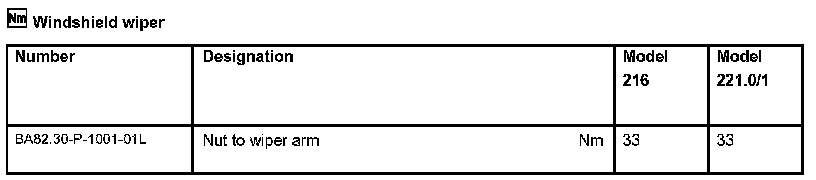

Windshield Wiper:
Special Tools:
Special Tools:
