Washer Fluid: Adjustments



AP82.35-P-8210SX Windshield Washer System - Inspect Fluid Level, Adjust To Correct Level

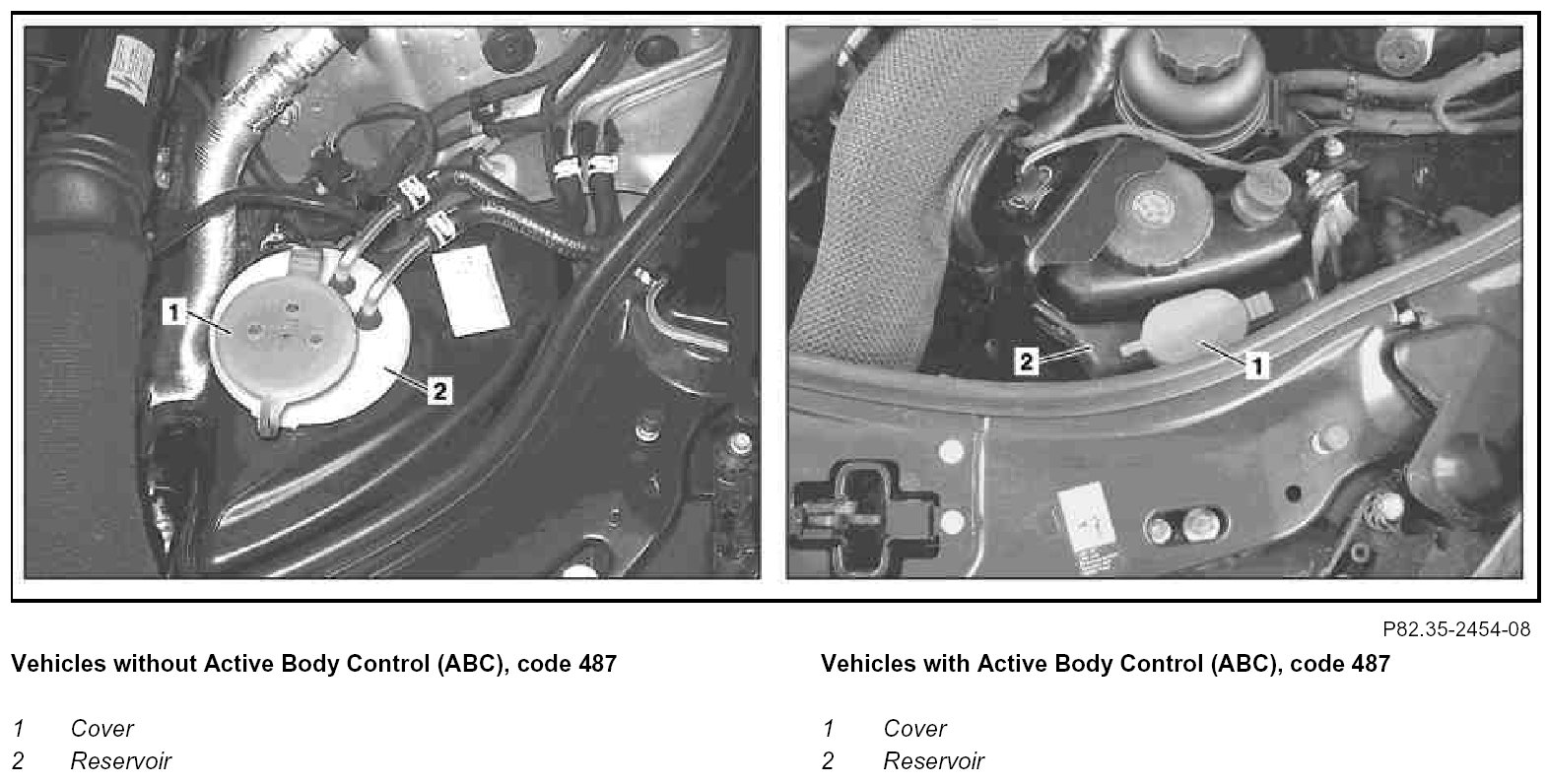

Component Identification:

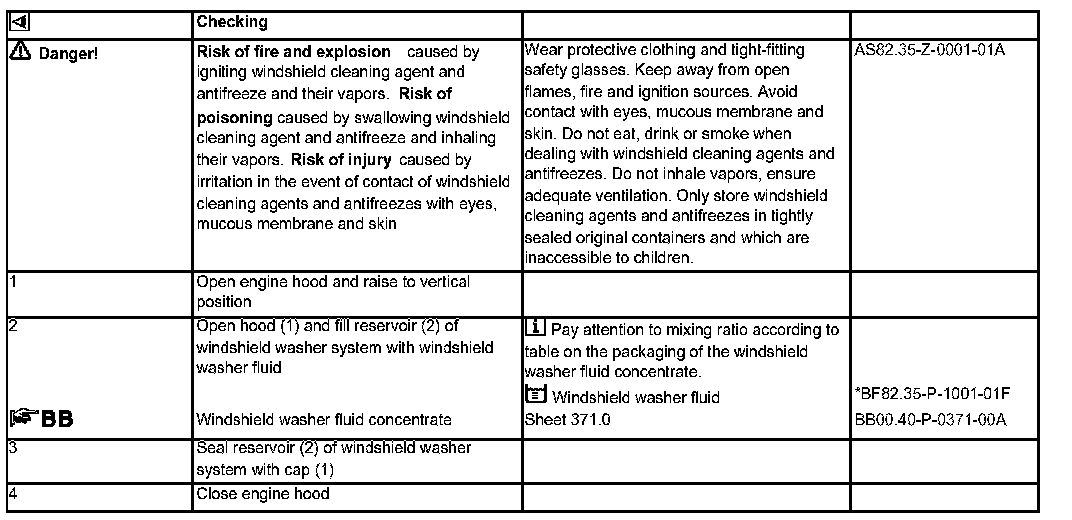

Steps 1 - 4:

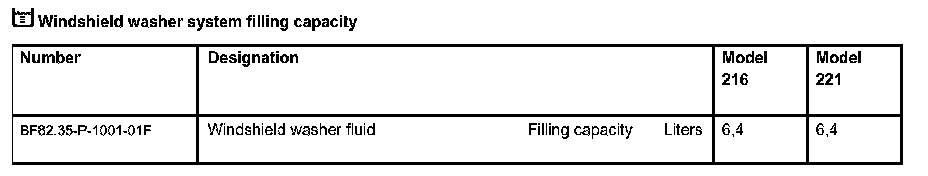

Windshield Washer System Filling Capacity:
