BE82.30-P-1000-01L Adjustment Values For Windshield Wiper
BE82.30-P-1000-01L Adjustment Values For Windshield Wiper
BE82.30-P-1000-01L Adjustment Values For Windshield Wiper

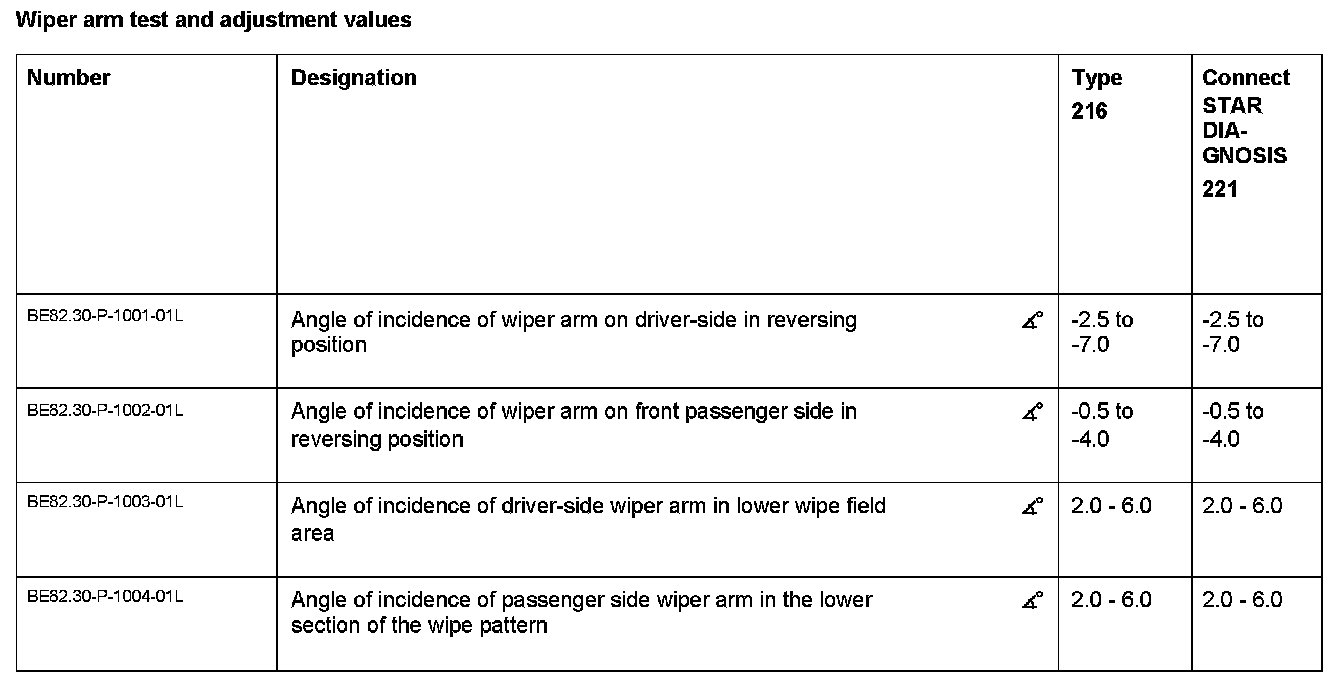

Wiper Arm Test And Adjustment Values:
