Headlamp Washer Pump: Service and Repair

AR82.35-P-6003SX Remove/Install Headlamp Cleaning System Pump
- with CODE (600) Headlamp cleaning system [model 221]
- except CODE (487) Active Body Control (ABC) [model 221]

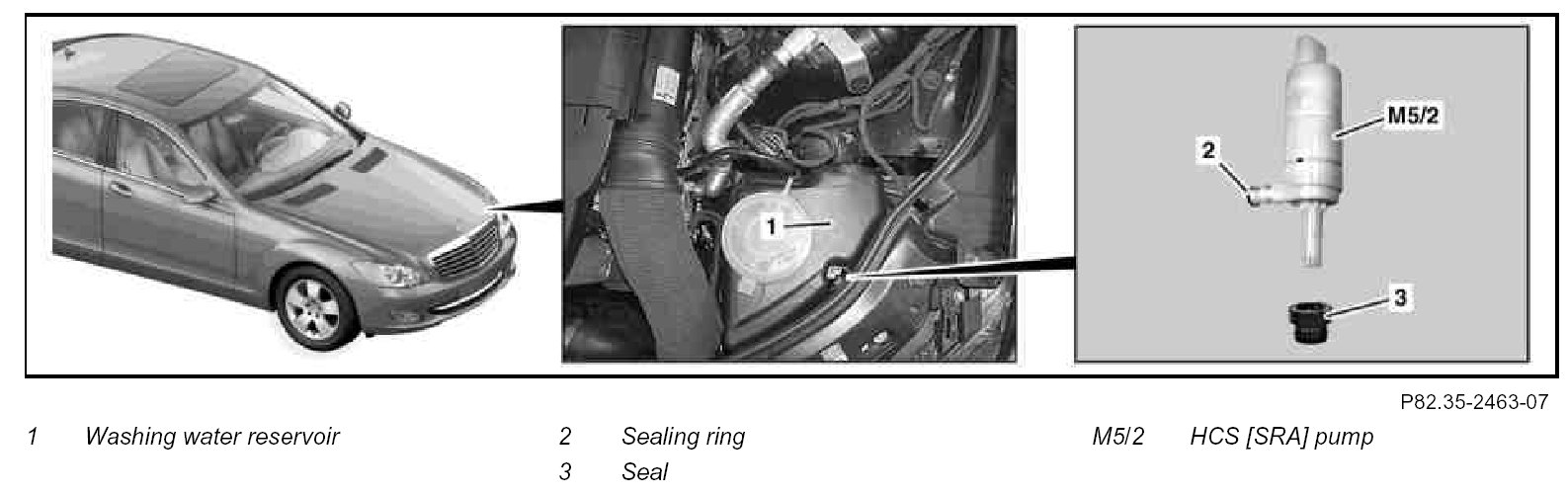

Component Identification:

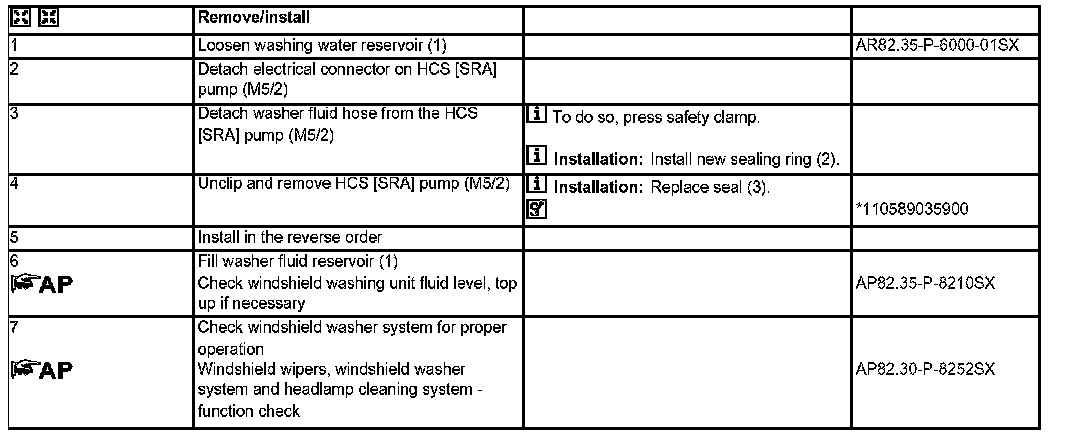

Steps 1 - 7:

Special Tools:
