AR67.10-P-1000-08SX Apply Adhesive Material

AR67.10-P-1000-08SX Apply Adhesive Material
- except CODE (Z07) Top Protection [model 221]

Modification Notes:

Special Tools:

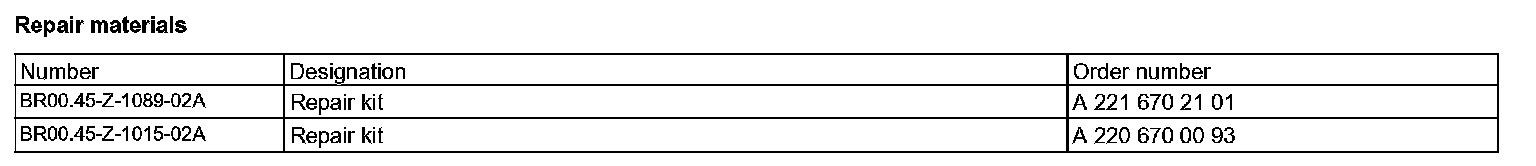

Repair Materials:

Install windshield (3) on body flange within 10 minutes after applying adhesive material, otherwise adhesive force of glue starts to decrease.

1. Guide nozzle (2) along bonding surface on windshield (3) or along residual adhesive material on body flange and uniformly apply adhesive material in shape of a bead with a height (b) of approx. 13 mm.
Cartridge gun.

Completely press out adhesive material not required, after applying (disposal).
