AR72.12-P-1810SXS Remove/Install Rear Door Window Lifter



AR72.12-P-1810SXS Remove/Install Rear Door Window Lifter
- with CODE (Z07) Top protection
- with hydraulic power windows


Component Identification:

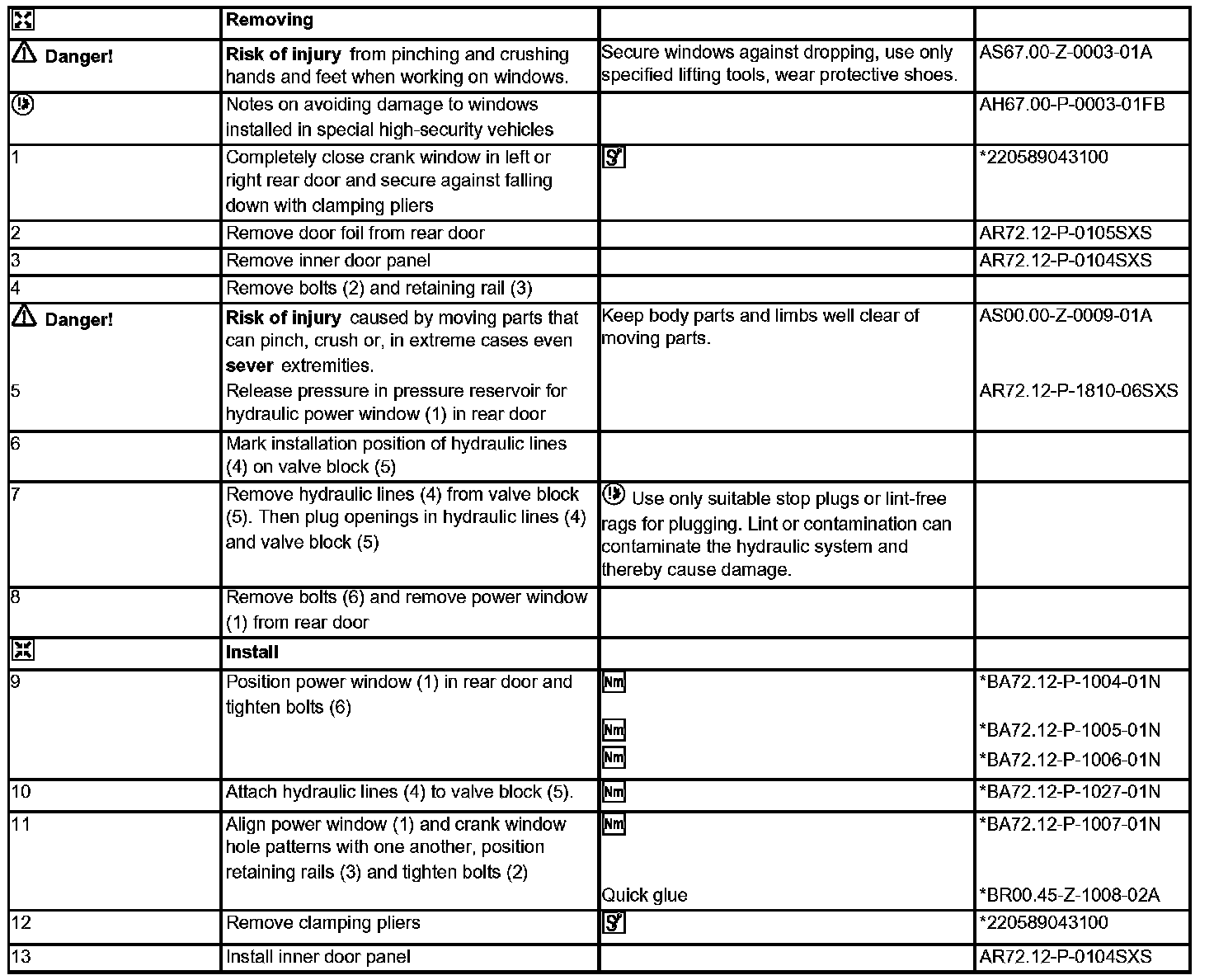

Steps 1 - 13:




Steps 14 - 16:




Rear Door:

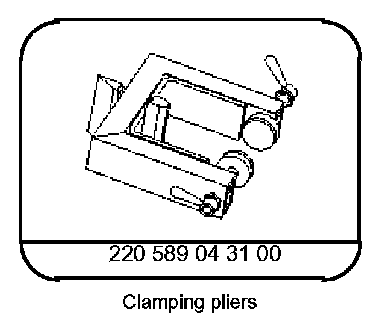

Special Tools:




Repair Materials:
