AR72.12-P-1940SXS Remove/Install Rear Door Triangular Window



AR72.12-P-1940SXS Remove/Install Rear Door Triangular Window
- with CODE (Z07) Top protection
- with hydraulic power windows

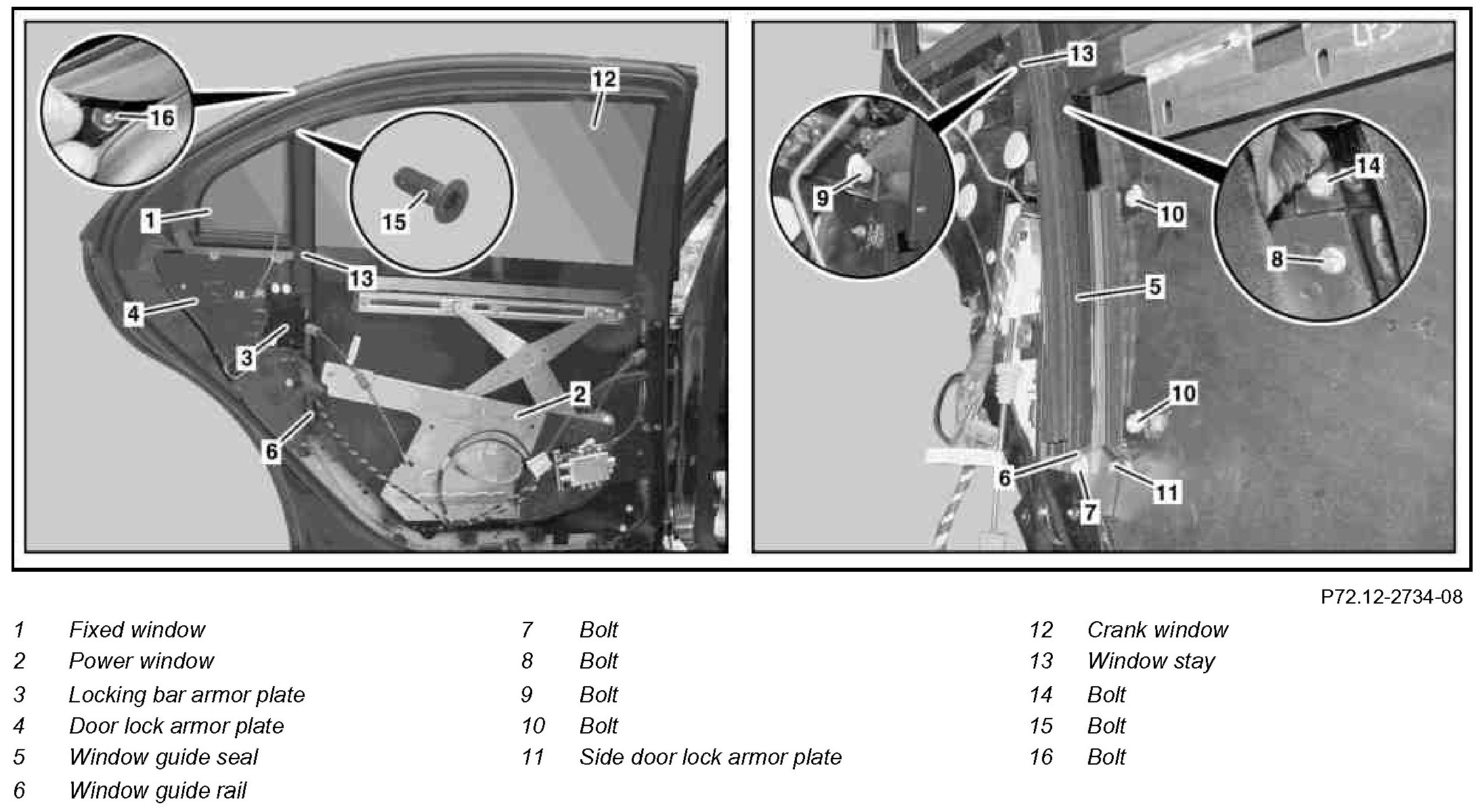

Component Identification:

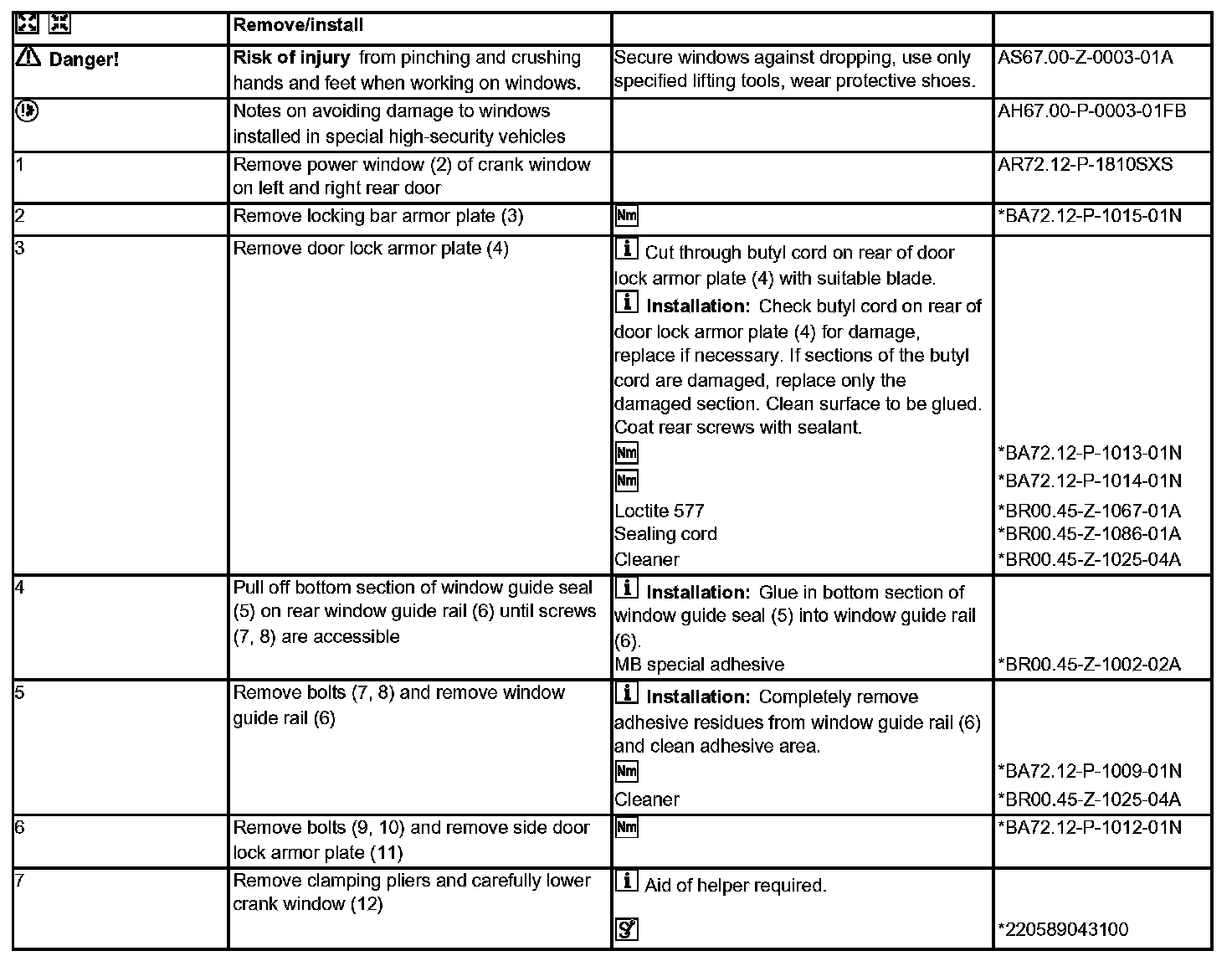

Steps 1 - 7:




Steps 8 - 12:

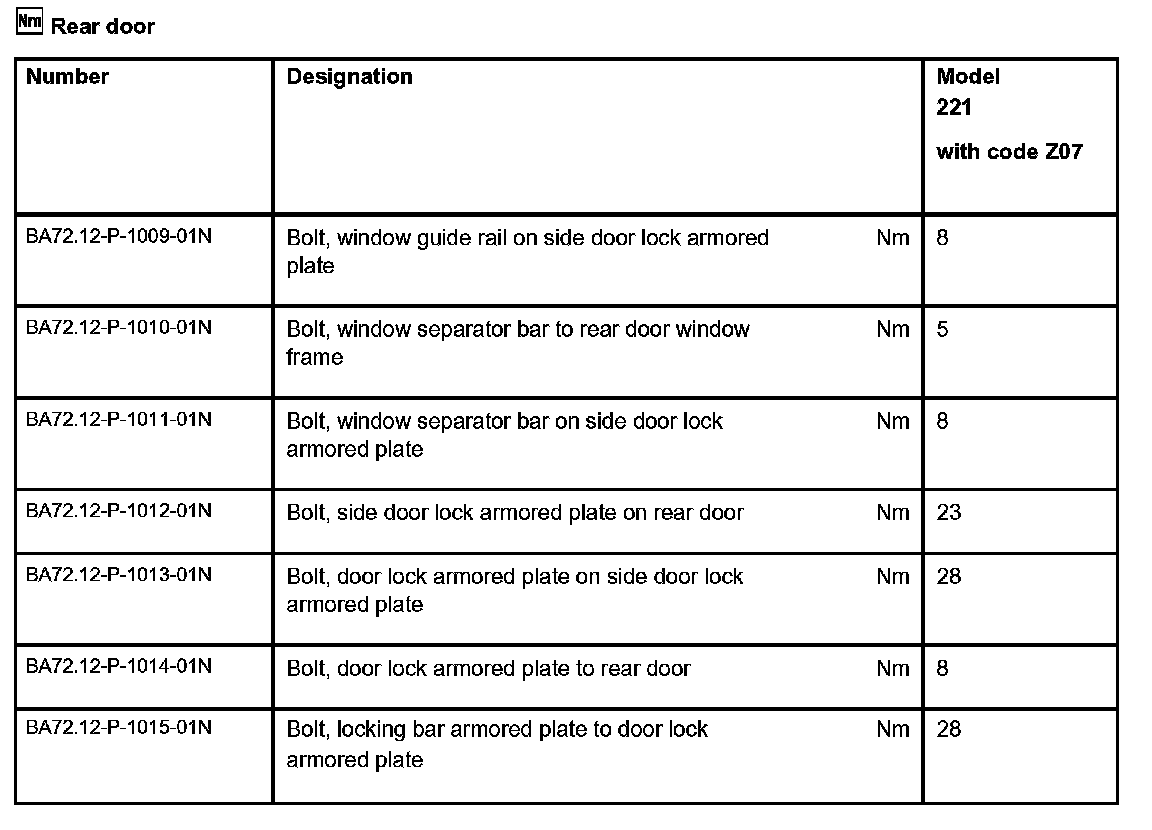

Rear Door:

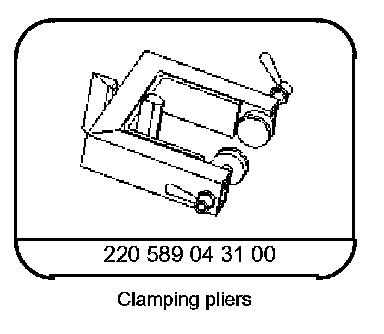

Special Tools:

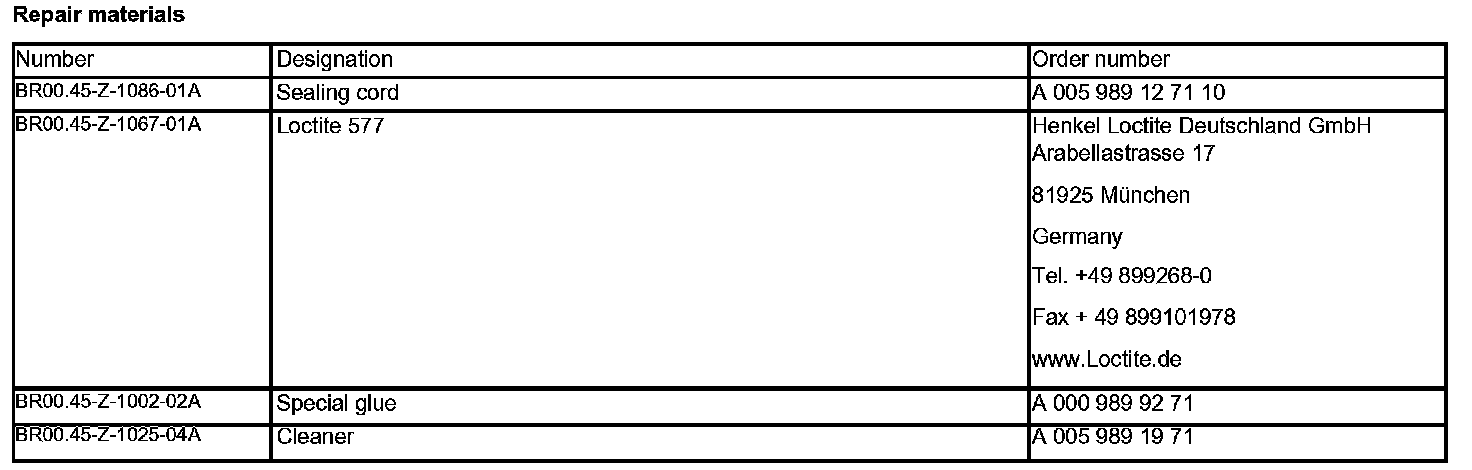

Repair Materials:
