AR67.20-P-2000-08SX Apply Glue To Rear Window

AR67.20-P-2000-08SX Apply Glue To Rear Window
- except CODE (Z07) Top Protection [model 221]

Special Tools:

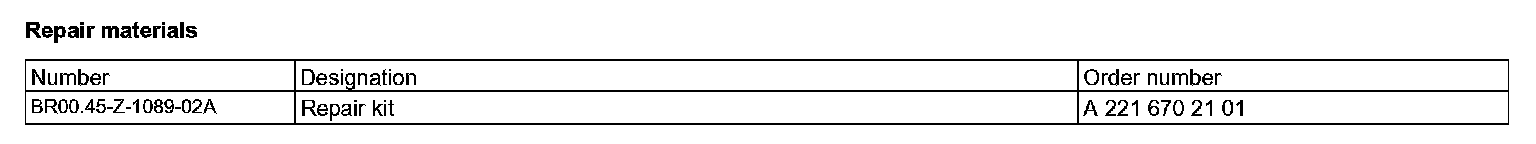

Repair Materials:

Install rear-end window (3) on body flange within 10 minutes after applying adhesive material, otherwise adhesive force of glue starts to decrease.

1. Guide nozzle (2) along bonding surface on rear-end window (3) or along residual adhesive material on body flange and uniformly apply adhesive material in shape of a bead with a height (b) of approx. 13 mm.
Cartridge gun.

Completely press out glue not required after applying (disposal).
