AR67.20-P-2000-04SX Line Up Rear Window In the Body Opening

AR67.20-P-2000-04SX Line Up Rear Window In The Body Opening
- except CODE (Z07) Top Protection [model 221]

Modification Notes:

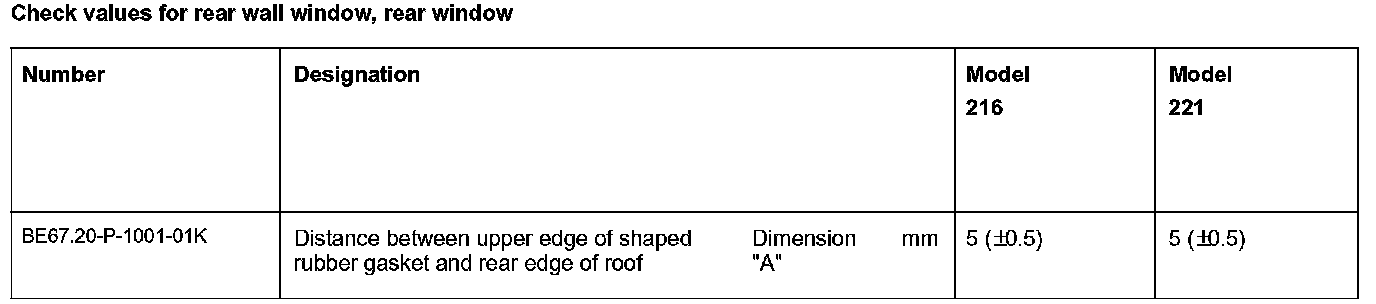

Check Values For Rear Wall Window, Rear Window:

Special Tools:

Component Identification:

1. Install rear-end window (1) on body flange with aid of helper, align between upper edge of shaped rubber gasket and rear edge of roof (A) and center at side.
Cup suction tool.







2. Attach suitable strips of adhesive tape (arrows) and cut at upper edge of shaped rubber gasket on rear-end window (1).
3. Remove rear-end window (1) from body flange with aid of helper.
