AR28.10-P-4150SYZ Remove/Install Radial Shaft Sealing Ring at Output Flange to Rear Axle



AR28.10-P-4150SYZ Remove/install radial shaft sealing ring at output flange to rear axle
- with TRANSMISSION 722.9

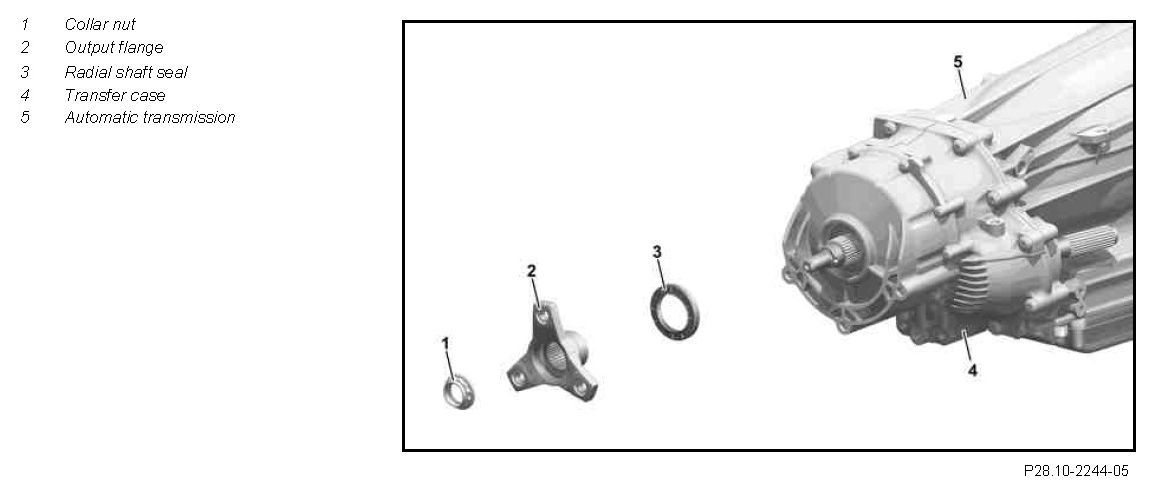

Component Identification:

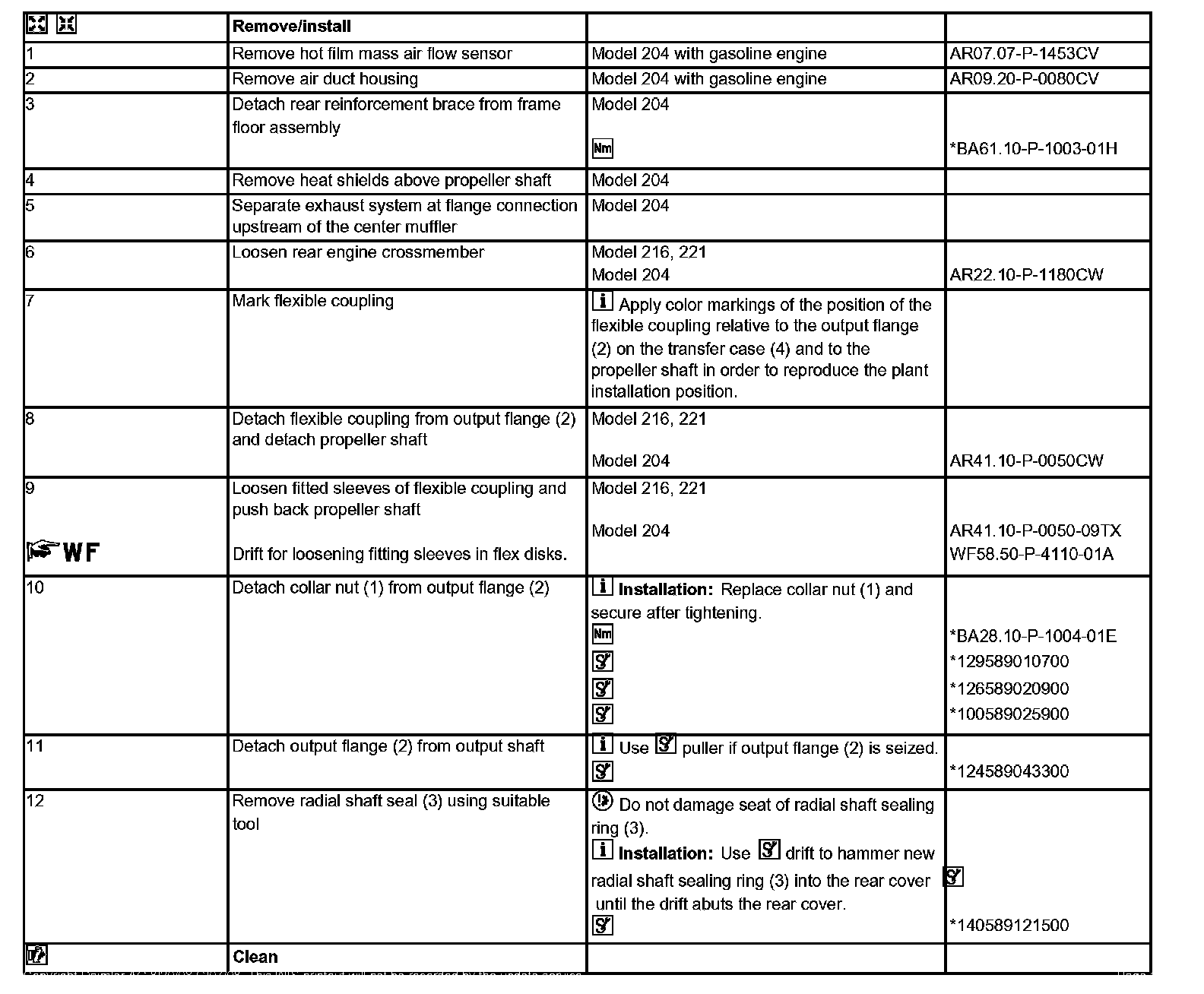

Remove/install Steps 1-12:

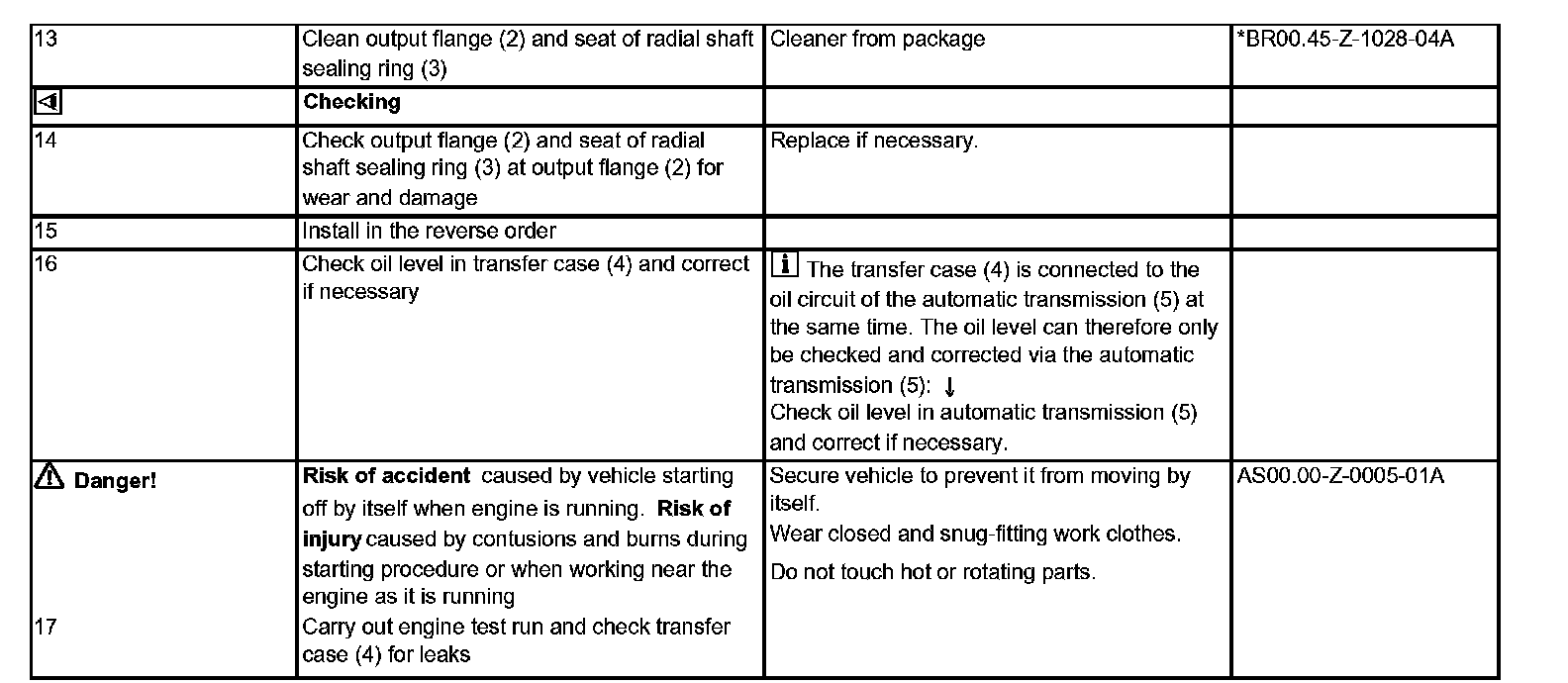

Remove/install Steps 13-17:

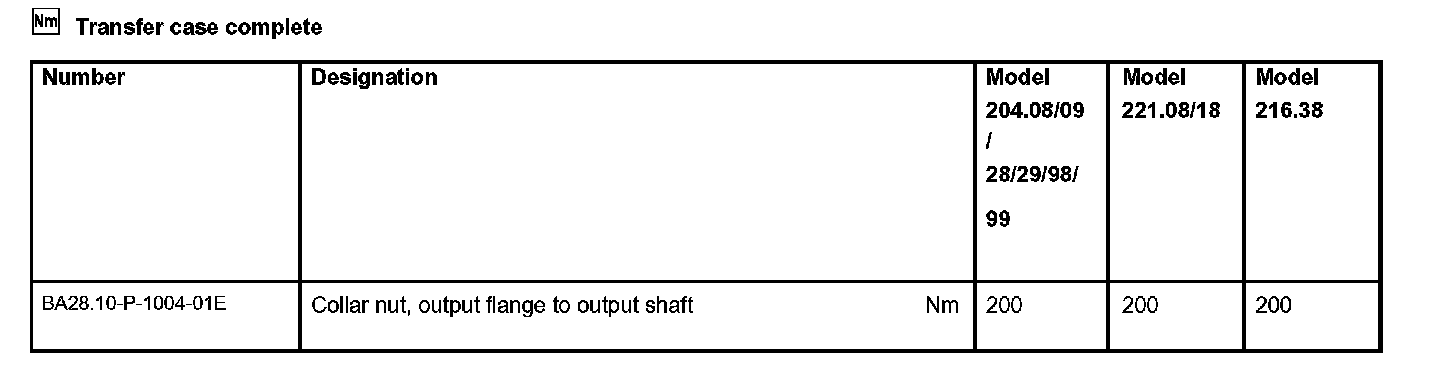

Transfer case complete:




Frame floor assembly:

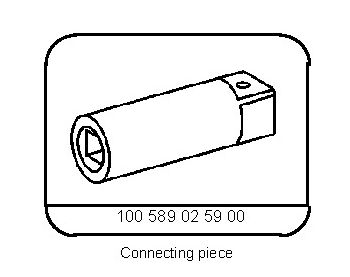

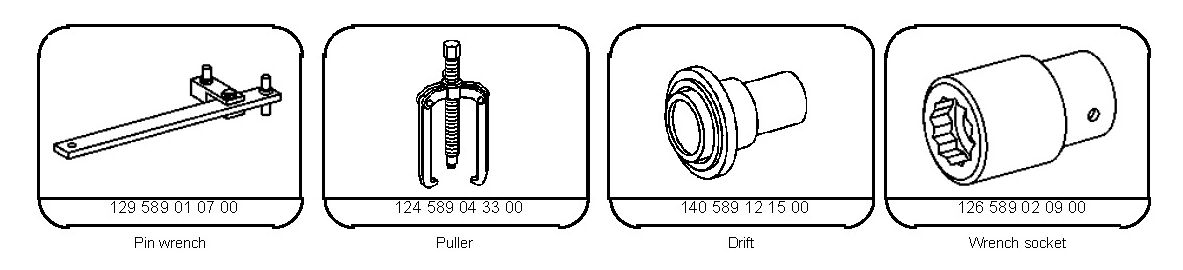

Special Tools:




Special Tools:

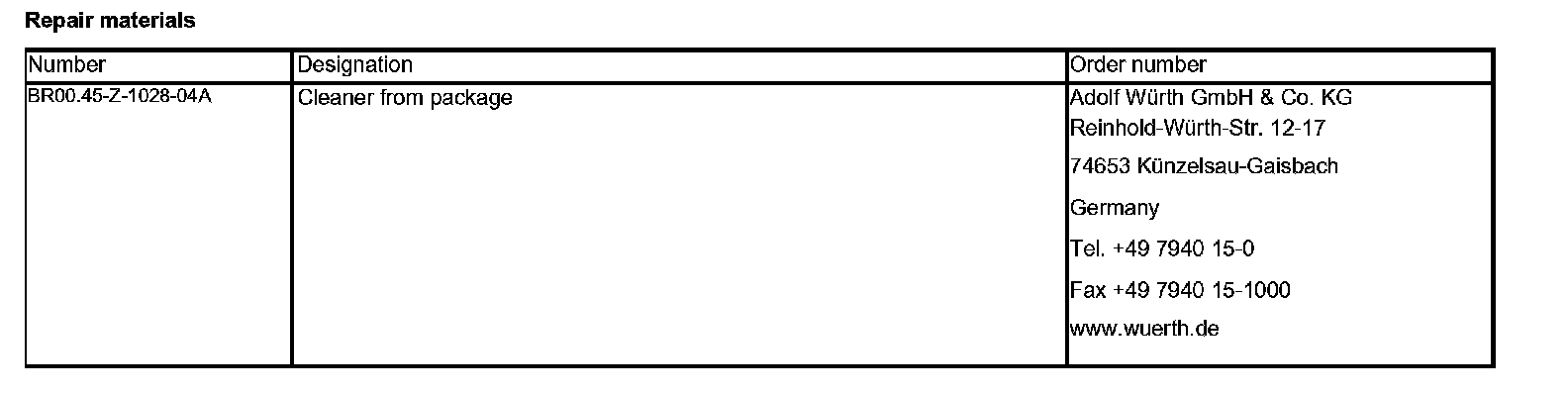

Repair materials:
