AR28.10-P-1004SYZ Disassemble, Assemble and Seal

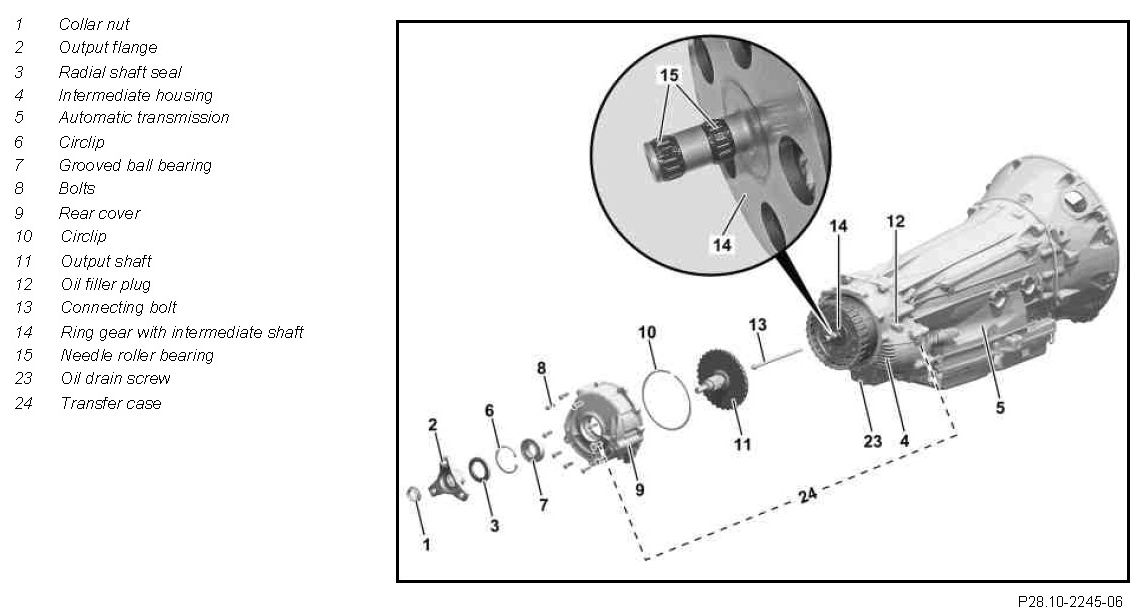

Component Identification:

Component Identification:

Component Identification:

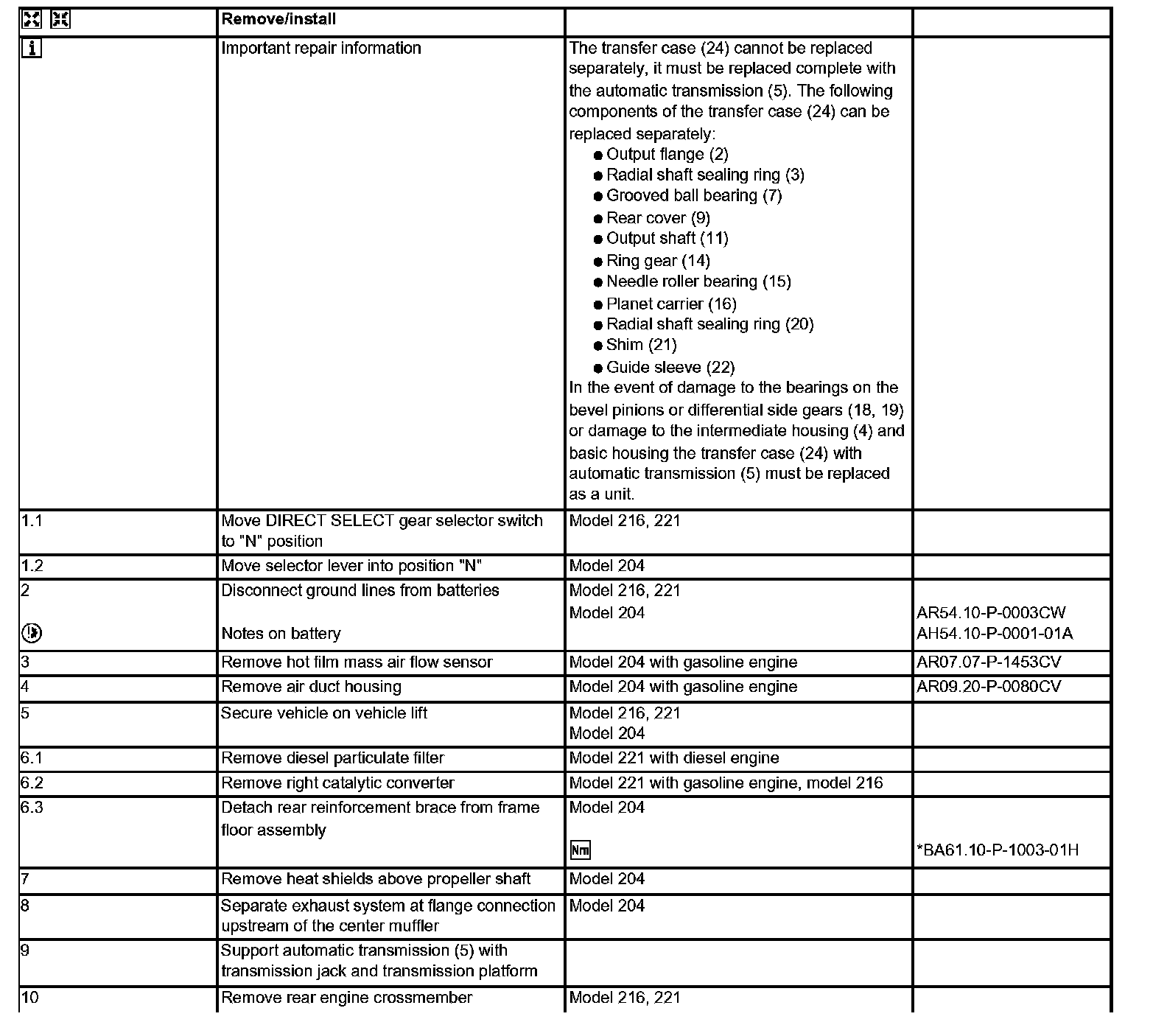

Remove/install Steps 1.1-10:

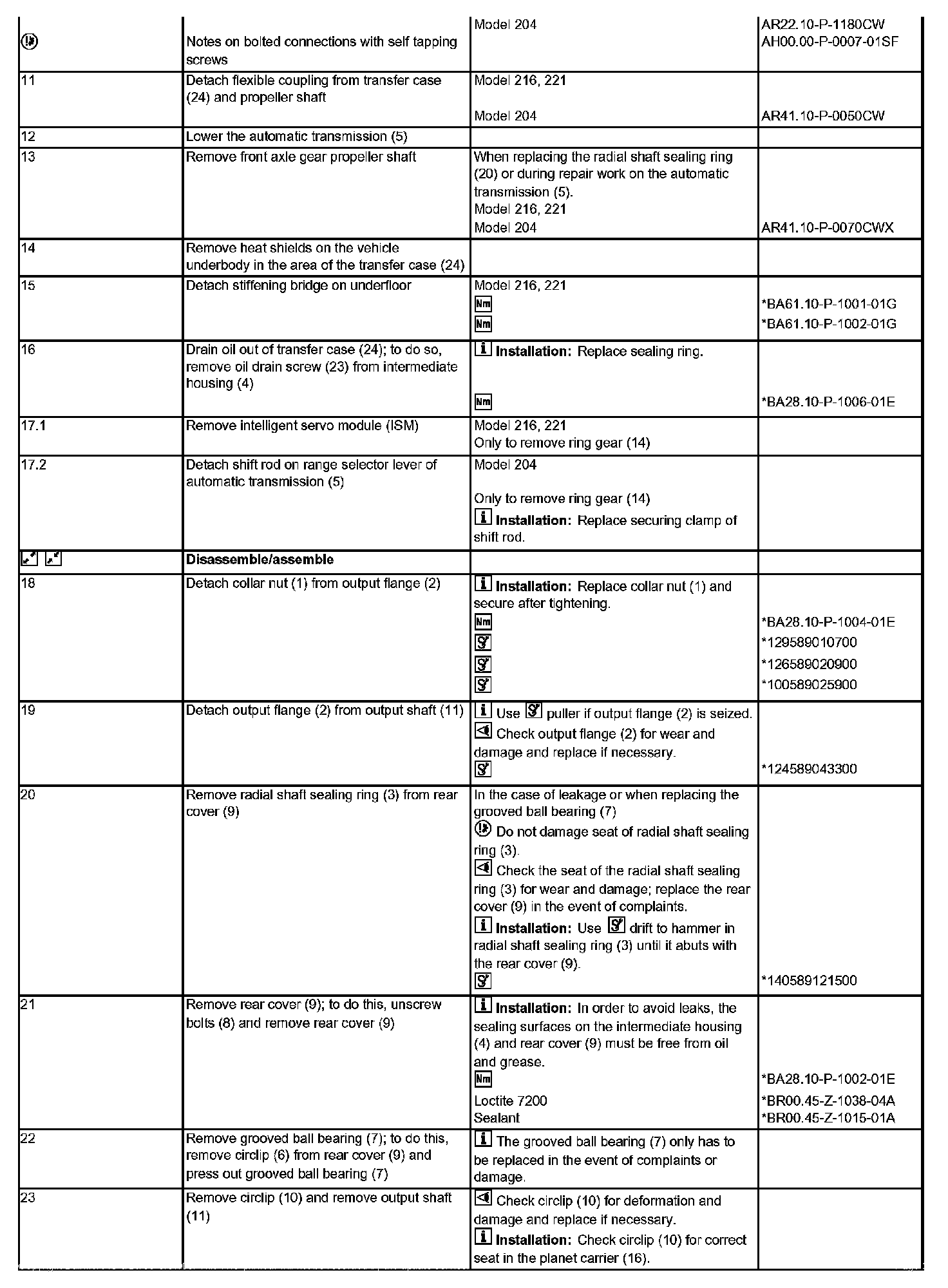

Remove/install Steps 10 (Continued)-23:

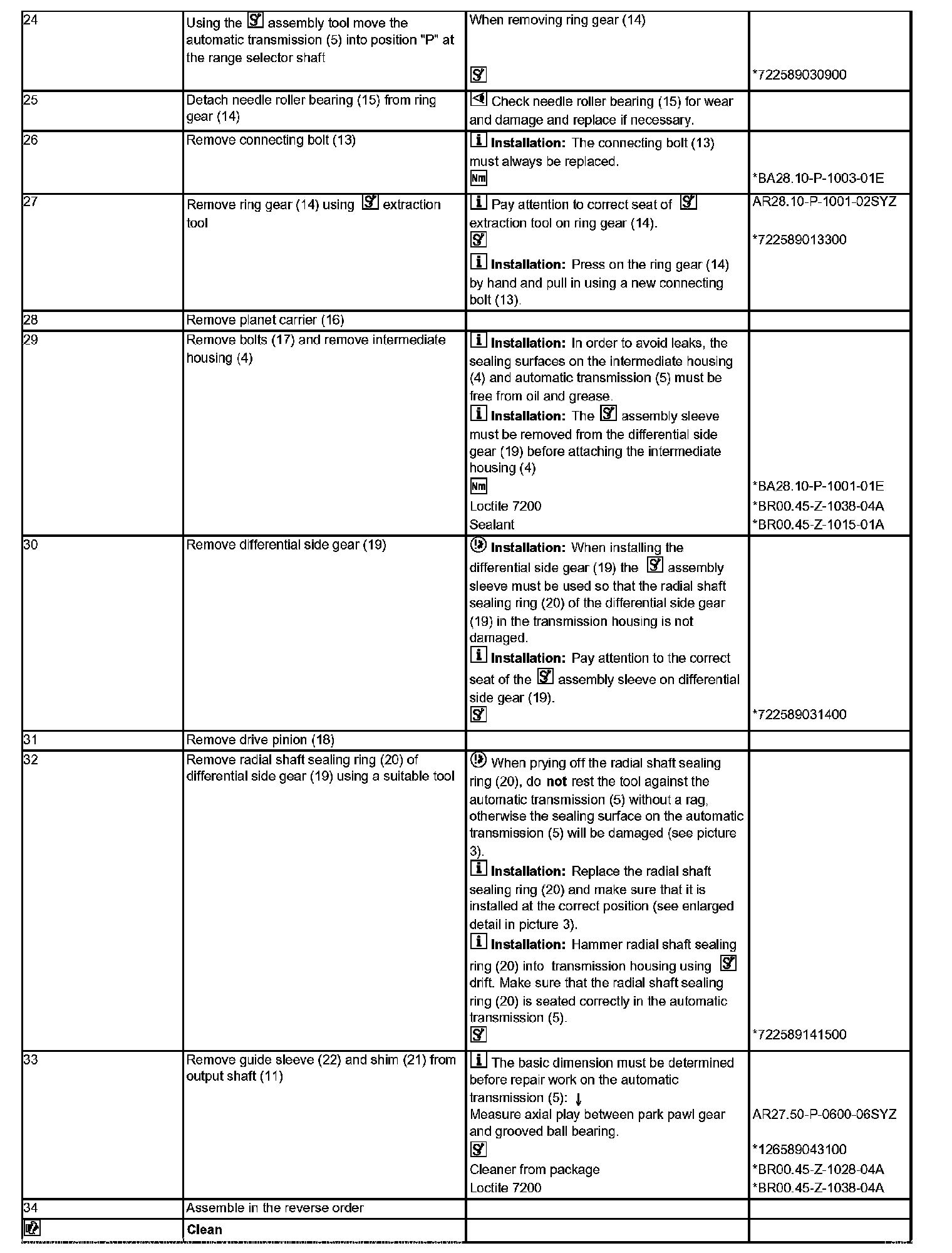

Remove/install Steps 24-34:

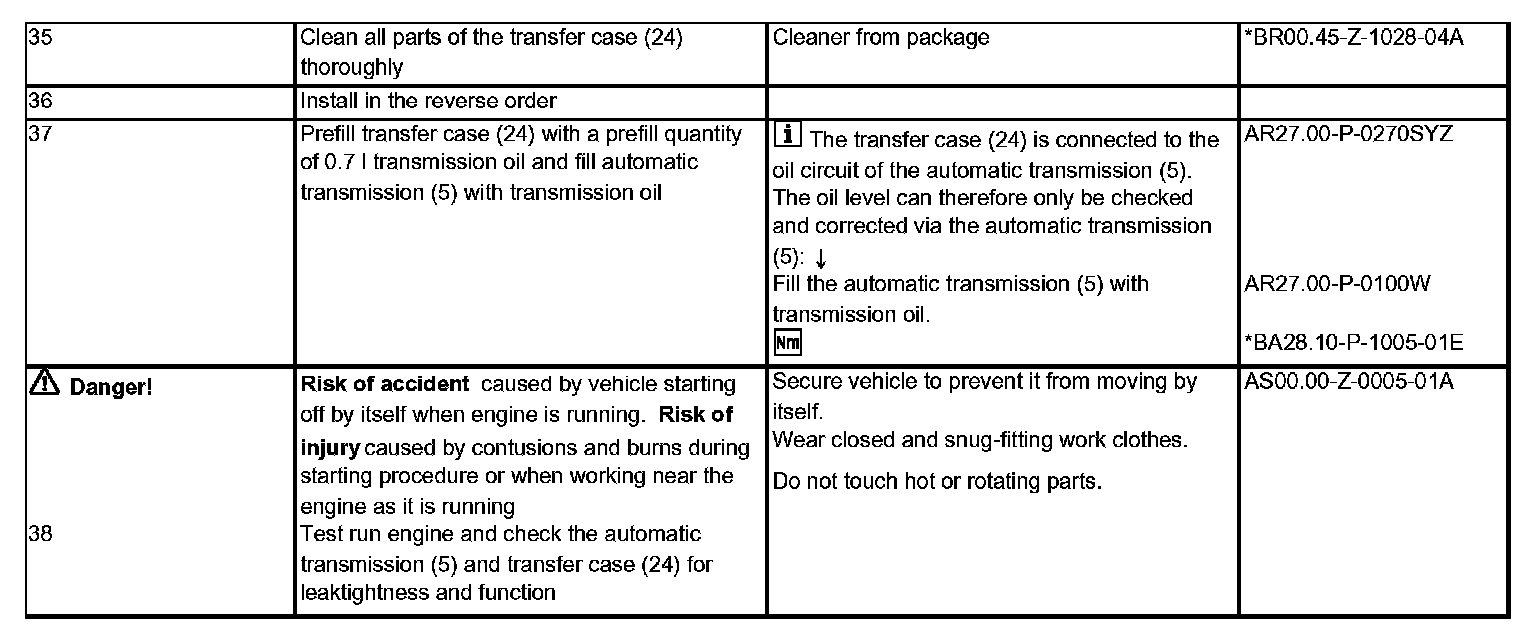

Remove/install Steps 35-38:

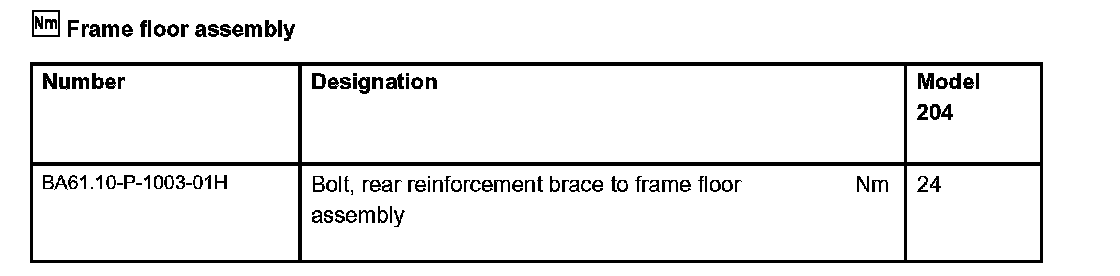

Frame floor assembly:

Frame floor assembly:

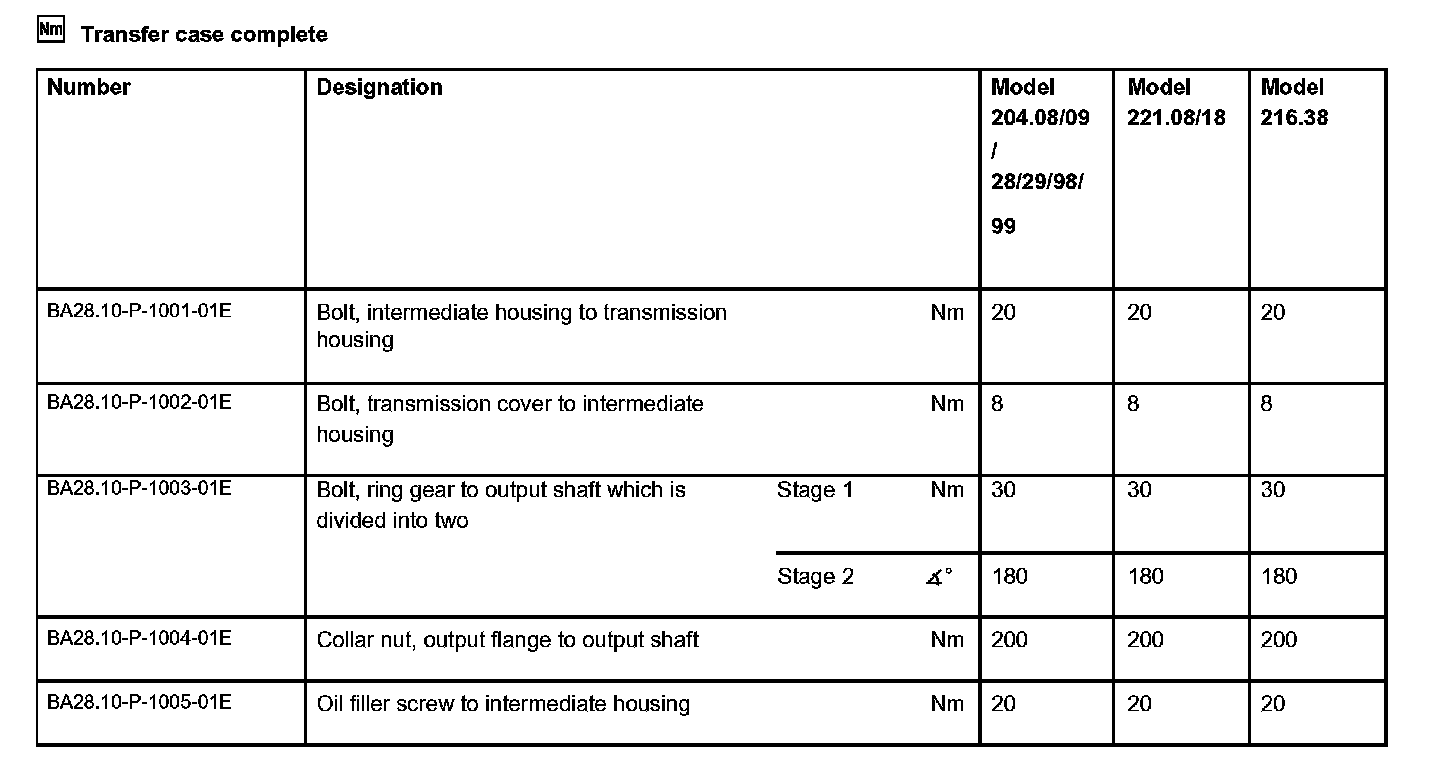

Transfer case complete:

Transfer case complete:

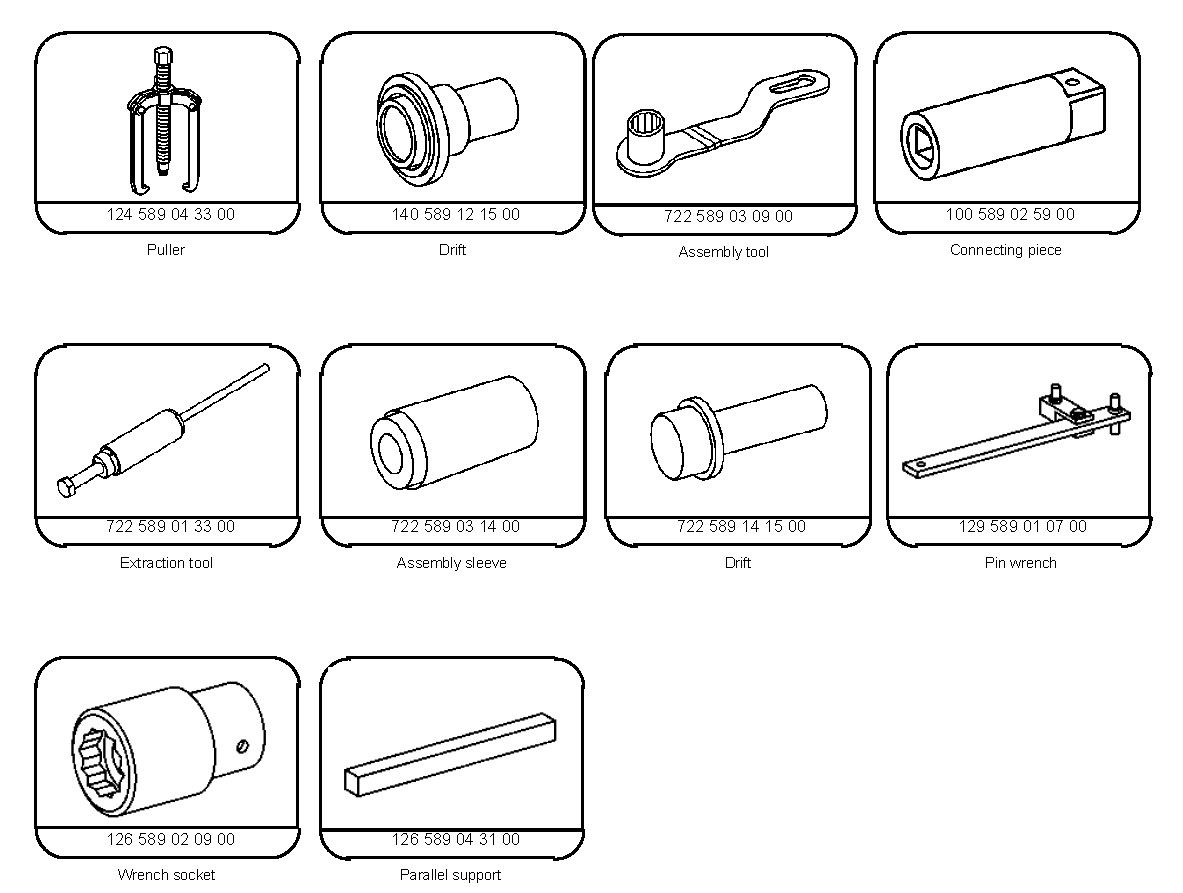

Special Tools:

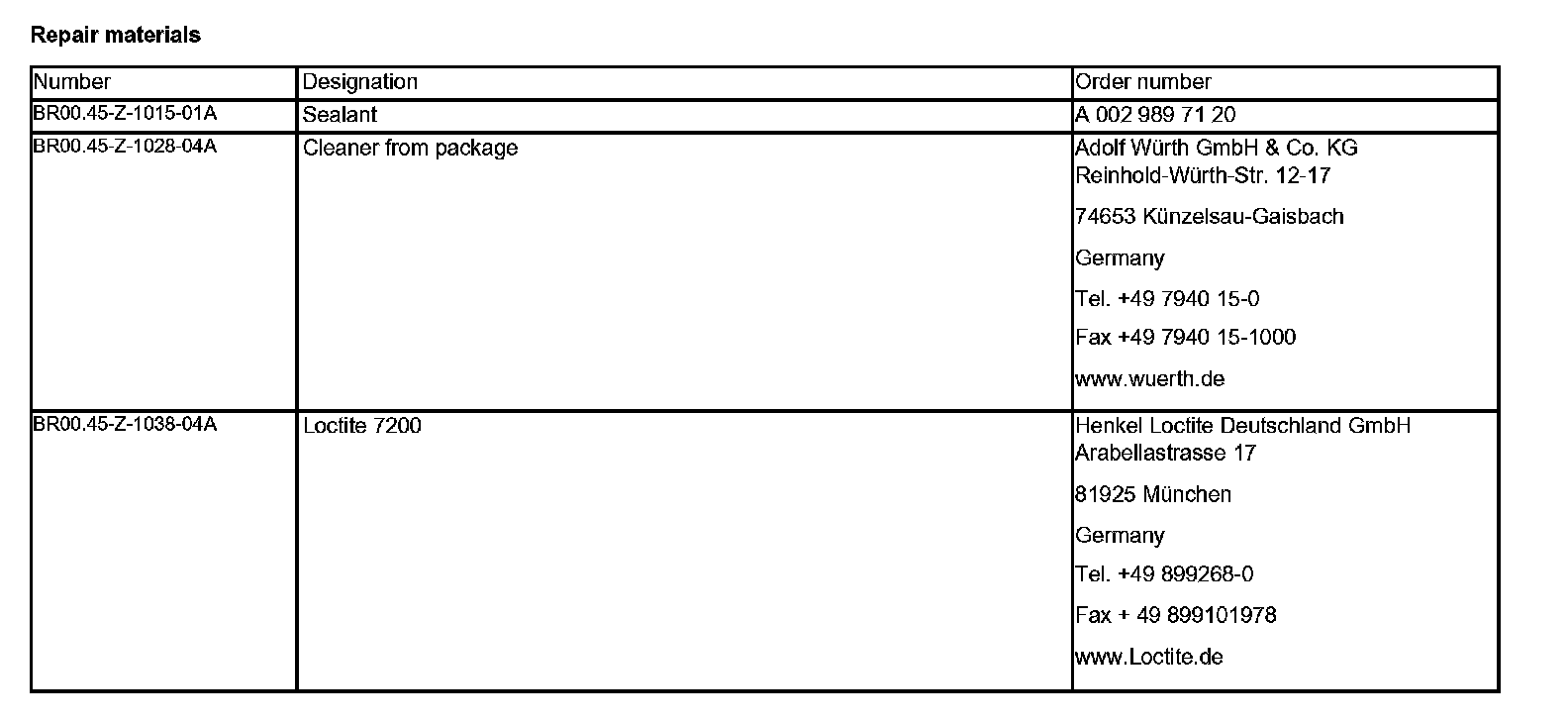

Repair materials:
