Universal Joint: Testing and Inspection
AP41.10-P-4152SX Check propeller shaft flex disks for signs of damage and deformation

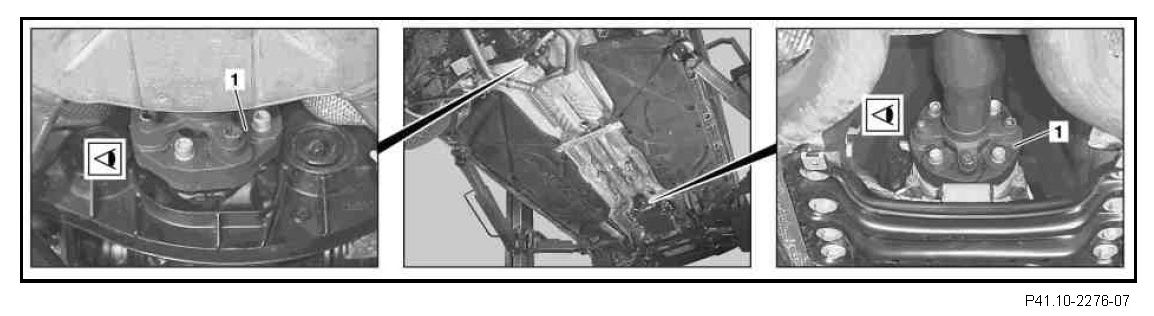

Component Identification:

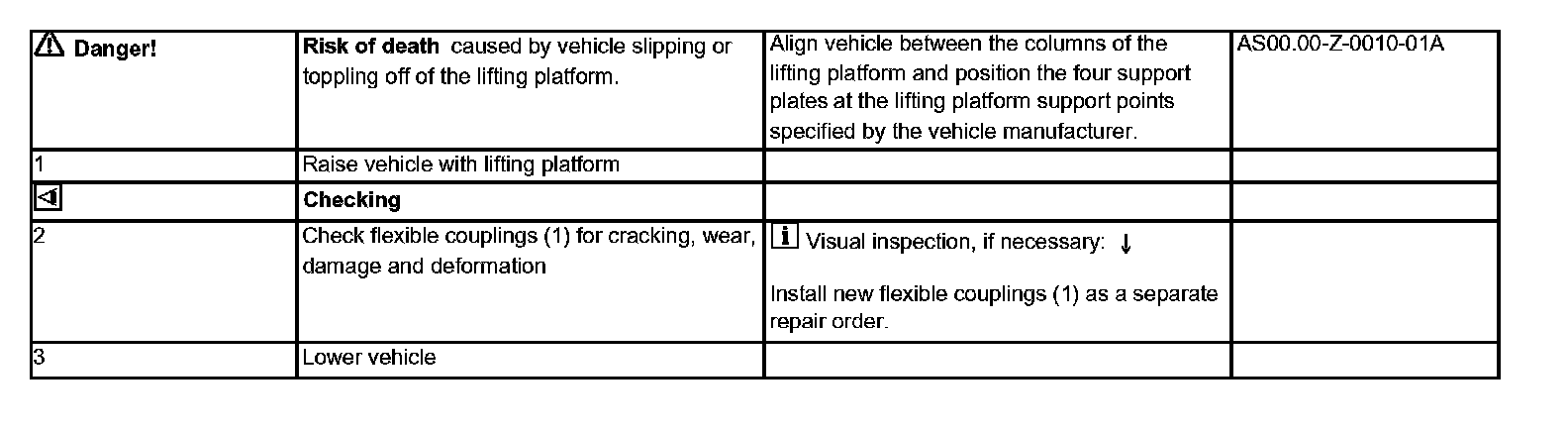

Steps 1-3:
