AR41.10-P-0200-03SX Press In Guide Sleeve
AR41.10-P-0200-03SX Press in guide sleeve

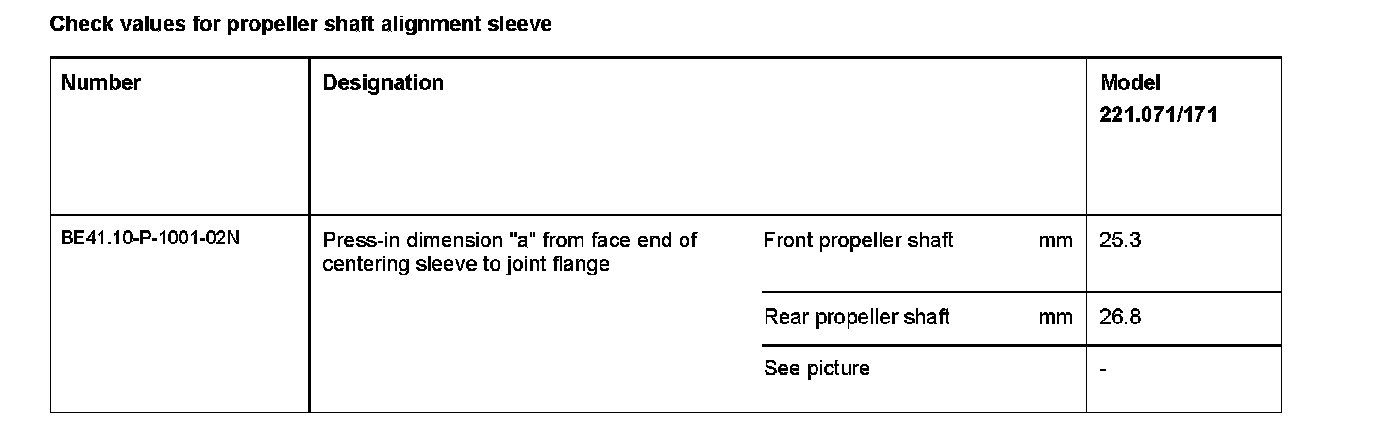

Check values for propeller shaft alignment sleeve:

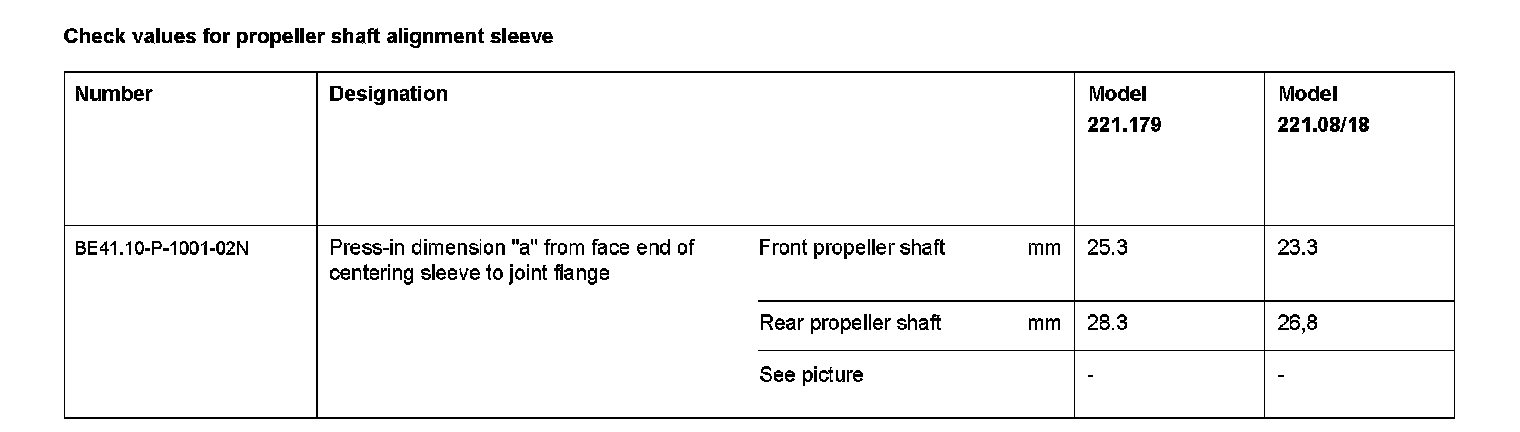

Check values for propeller shaft alignment sleeve:

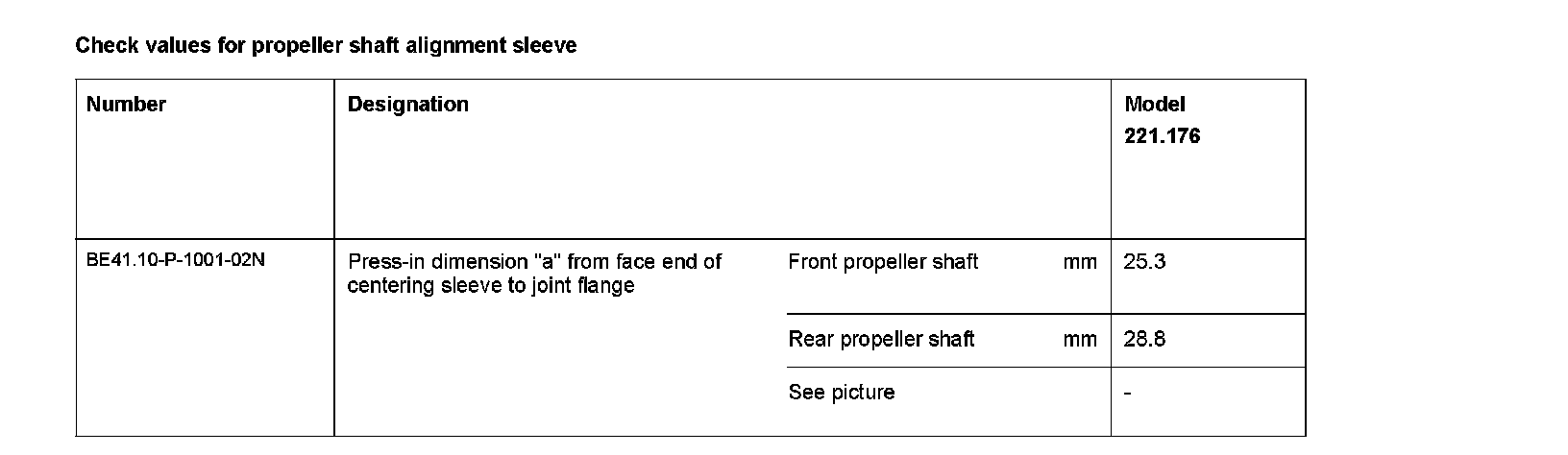

Check values for propeller shaft alignment sleeve:

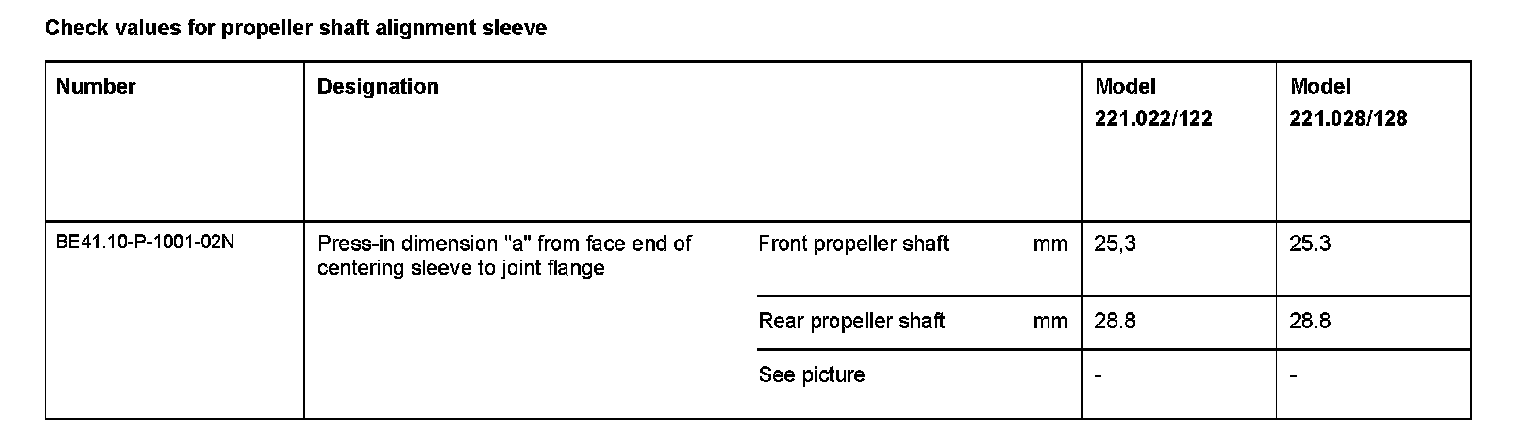

Check values for propeller shaft alignment sleeve:

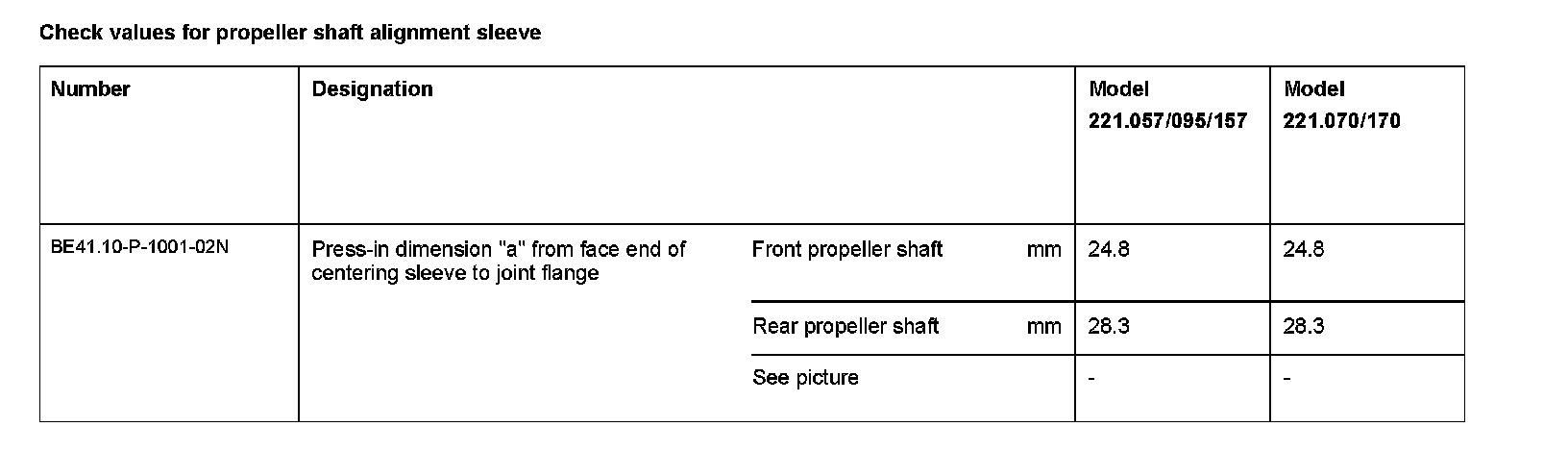

Check values for propeller shaft alignment sleeve:

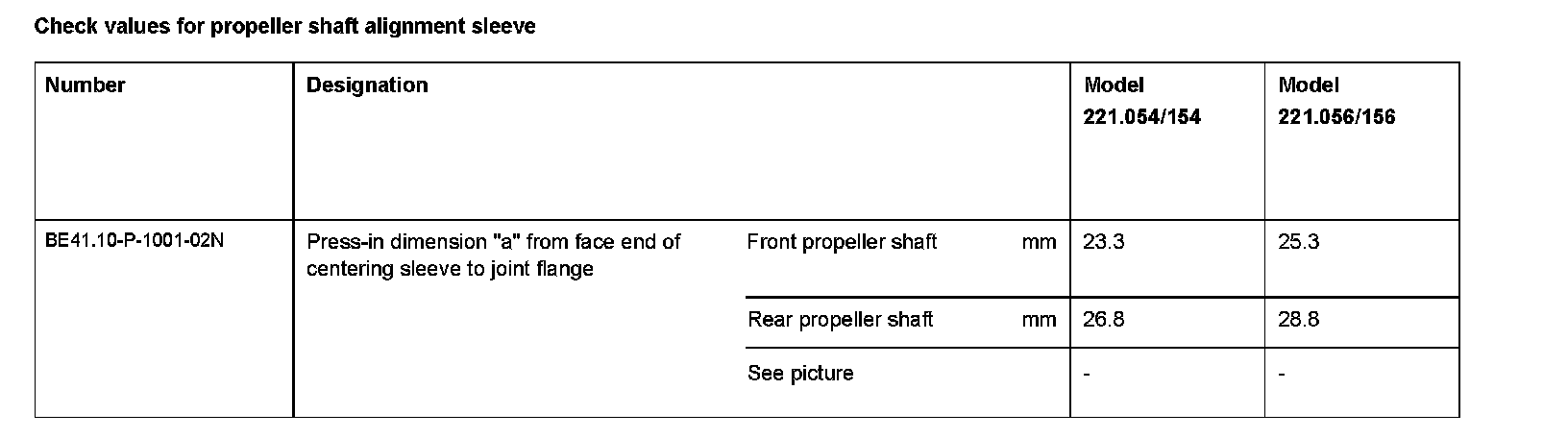

Check values for propeller shaft alignment sleeve:
1 Use a suitable drift to drive in the new guide sleeve.

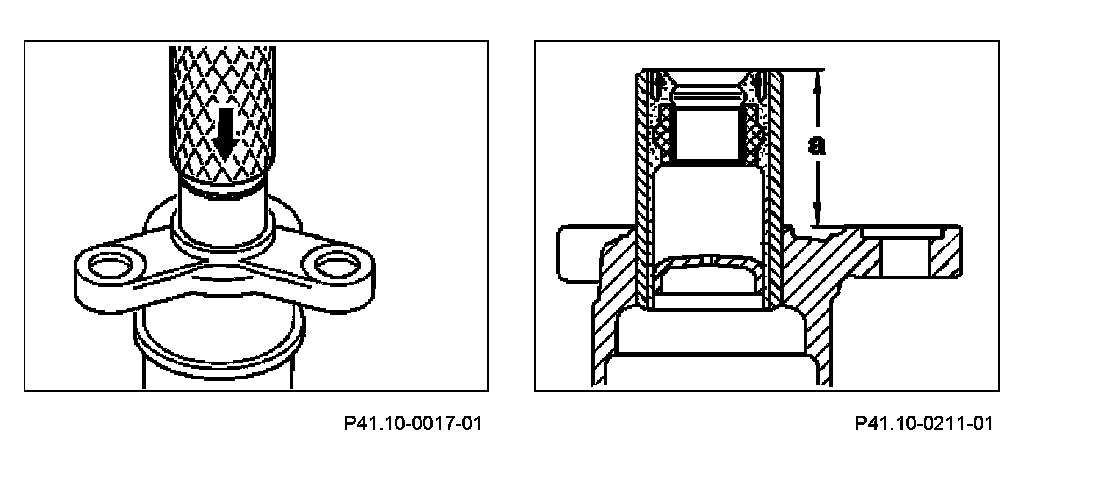

Note press-in dimension "a" from the end face of the centering sleeve to the flange.
The specified press-in dimension "a" may deviate depending on the thickness of the flex disks (e.g. in vehicles with vibration damper). In these cases the dimension "a" measured prior to removal should be used for installation.
