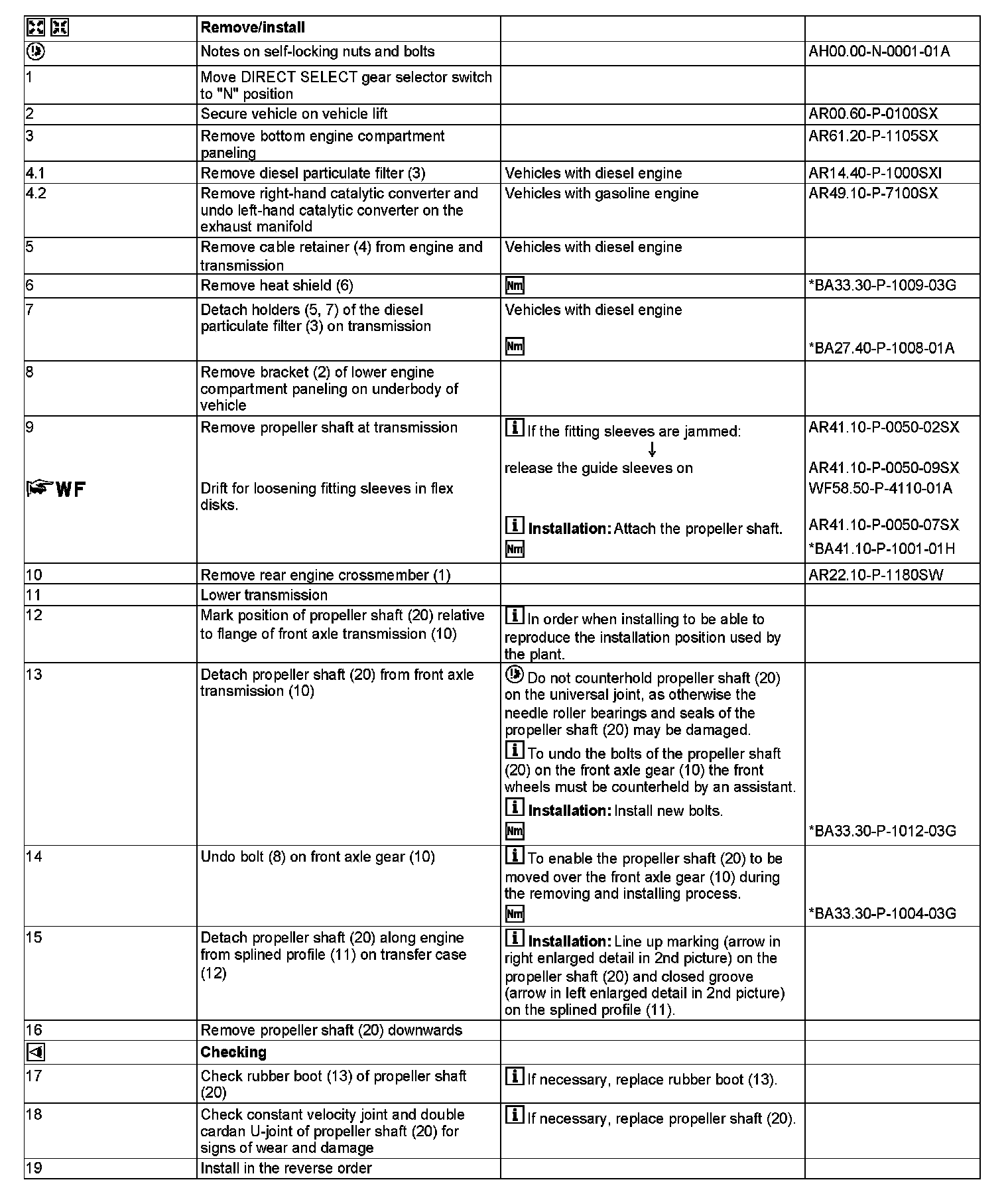

AR41.10-P-0070SYZ Remove/Install Front Axle Transmission Propeller Shaft

AR41.10-P-0070SYZ Remove/Install Front Axle Transmission Propeller Shaft
MODEL 221.0 /1, 216
with 4MATIC

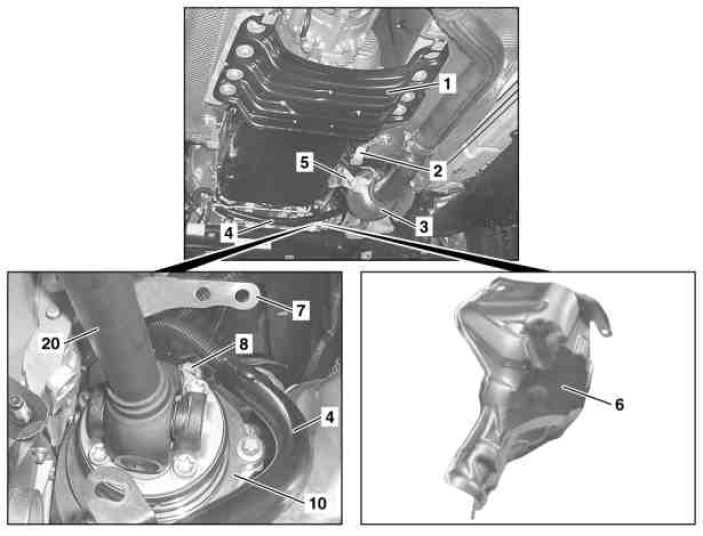

1 Rear engine crossmember
2 Bracket
3 Diesel particulate filter
4 Cable guide for starter wiring harness
5 Bracket
6 Heat shield
7 Bracket
8 Screw
10 Front axle transmission
20 Front axle transmission propeller shaft

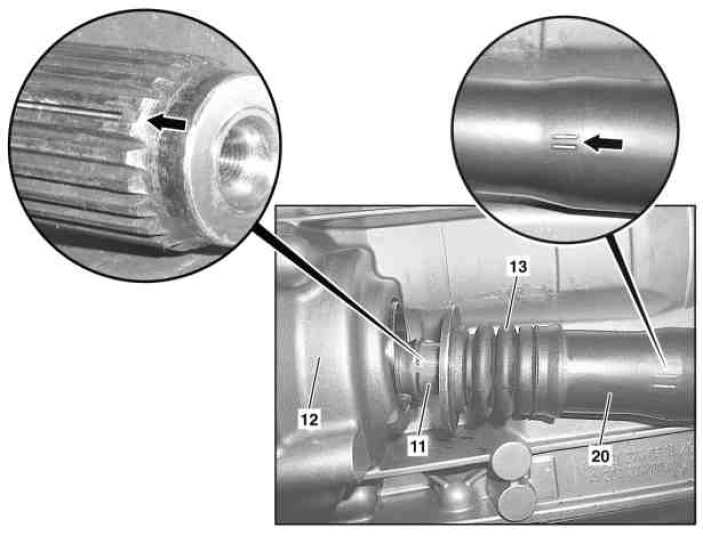

11 Splined profile for transfer case
12 Transfer case
13 Rubber boot
20 Front axle transmission propeller shaft

Arrows Marking or closed groove
