AR41.10-P-0070SYZ Remove/Install Front Axle Differential Propeller Shaft



AR41.10-P-0070SYZ Remove/install front axle differential propeller shaft

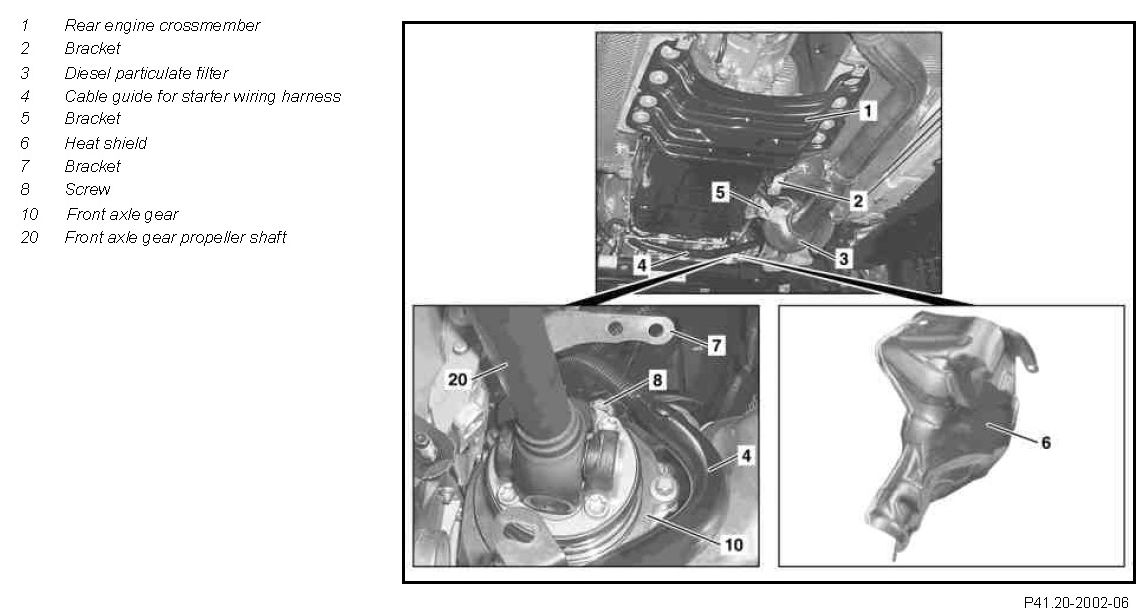

Component Identification:

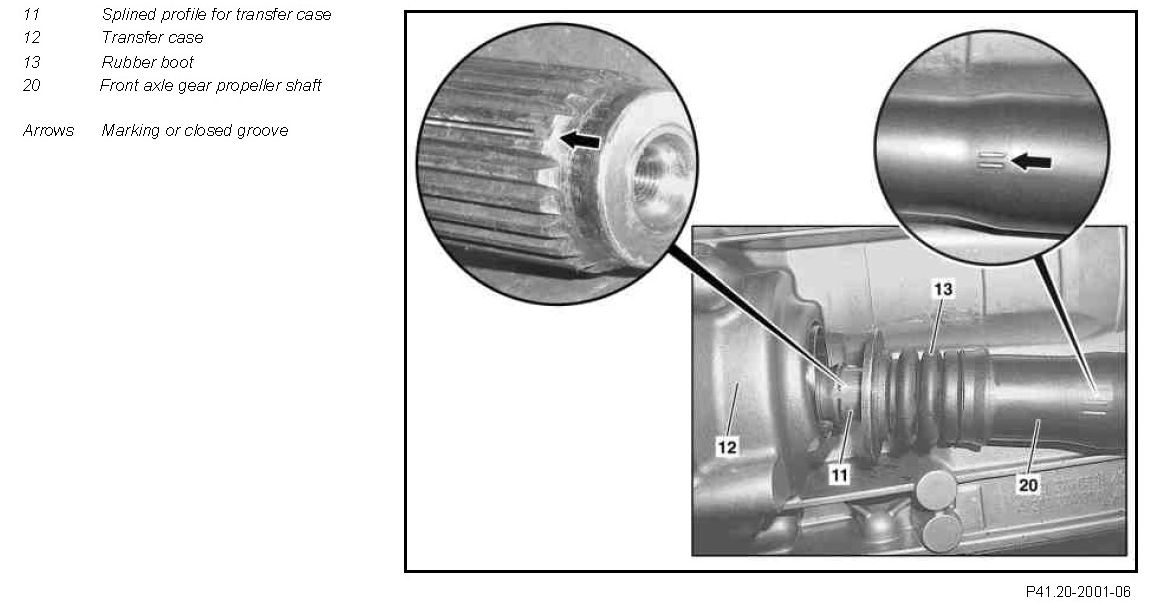

Component Identification:

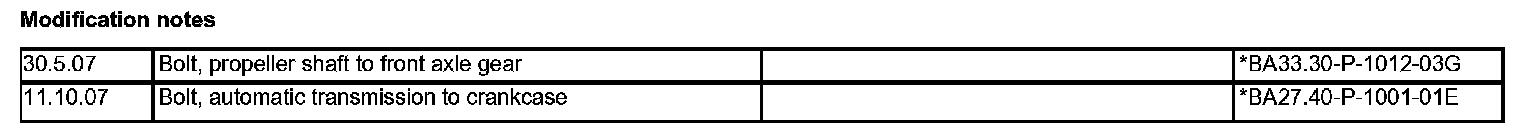

Modification notes:

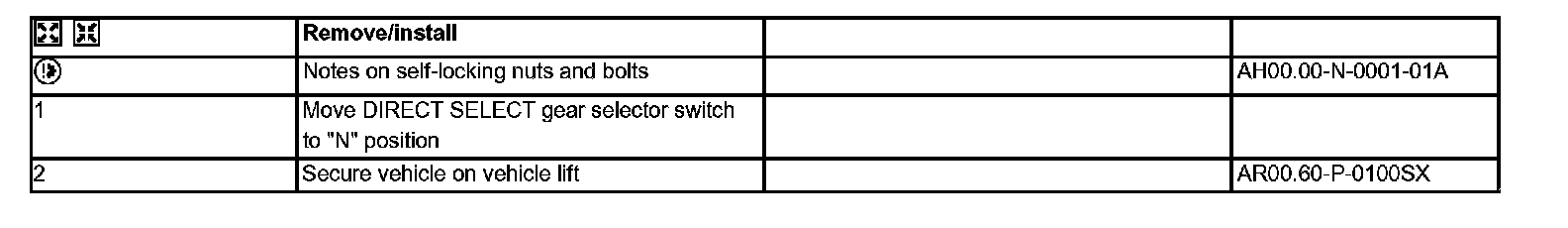

Remove/install Steps 1-2:

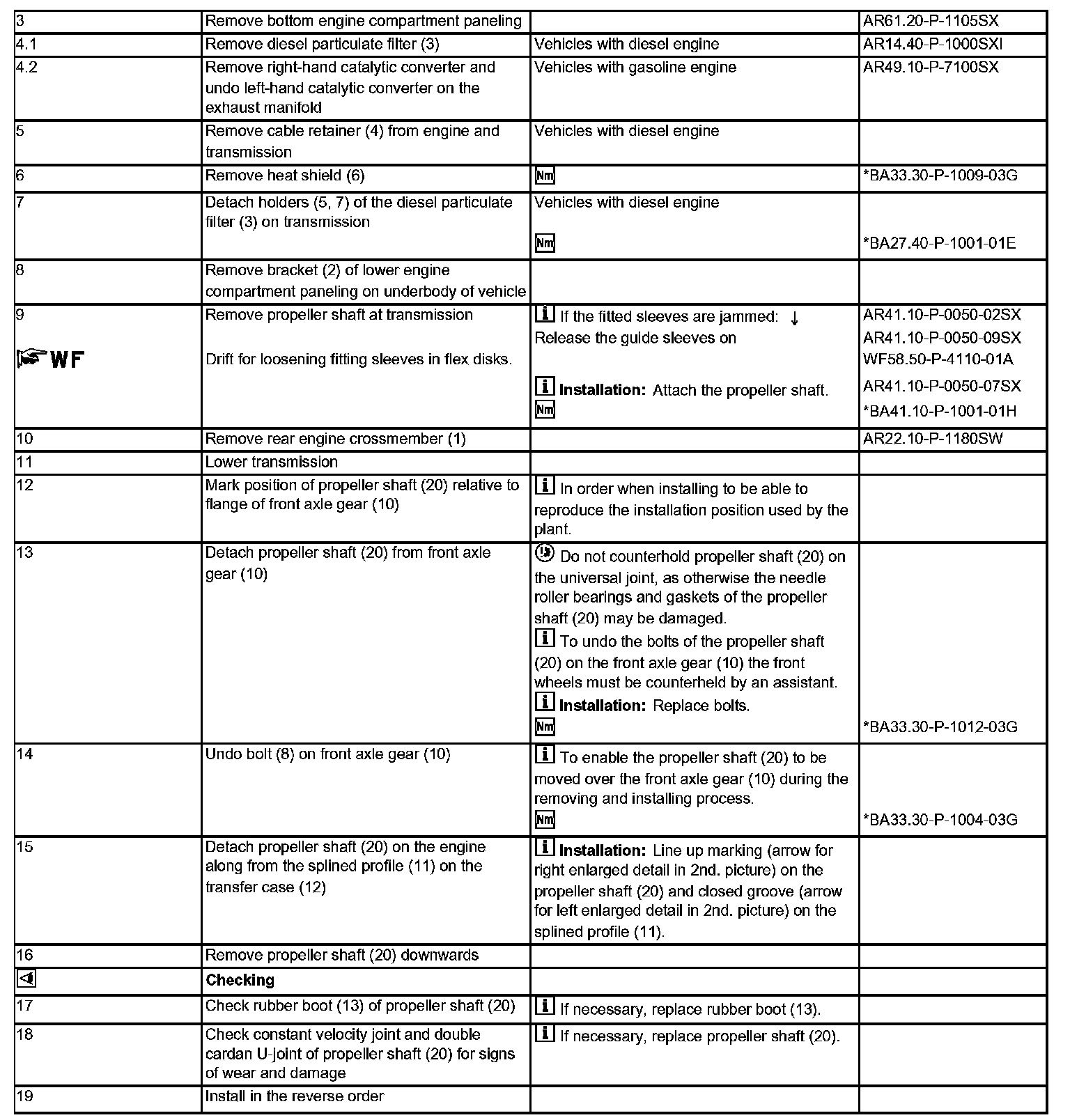

Remove/install Steps 3-19:

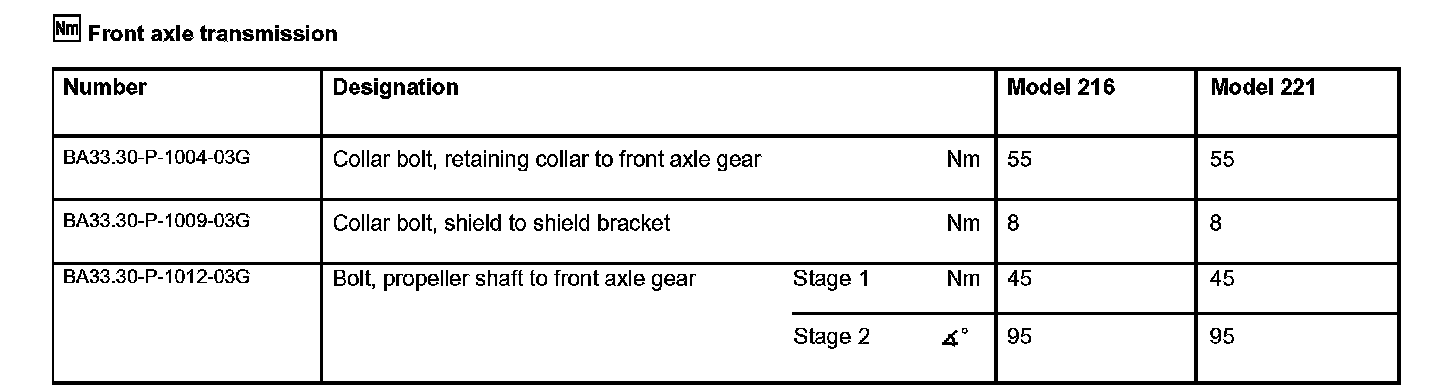

Front axle transmission:

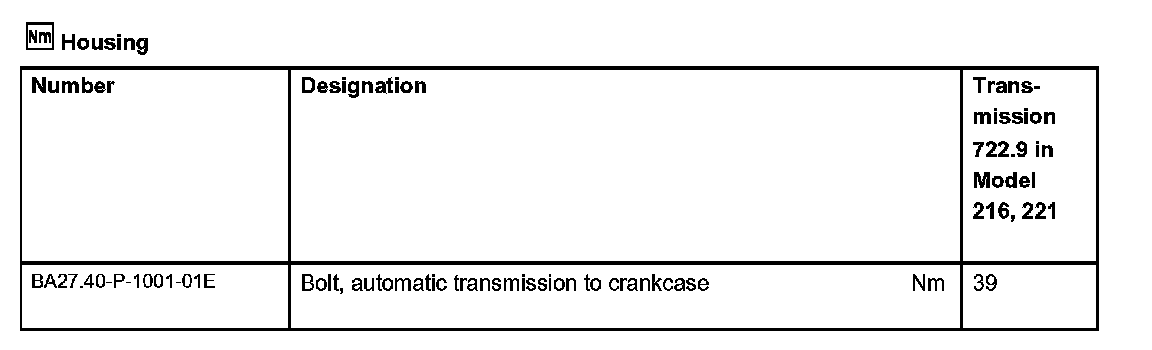

Housing:

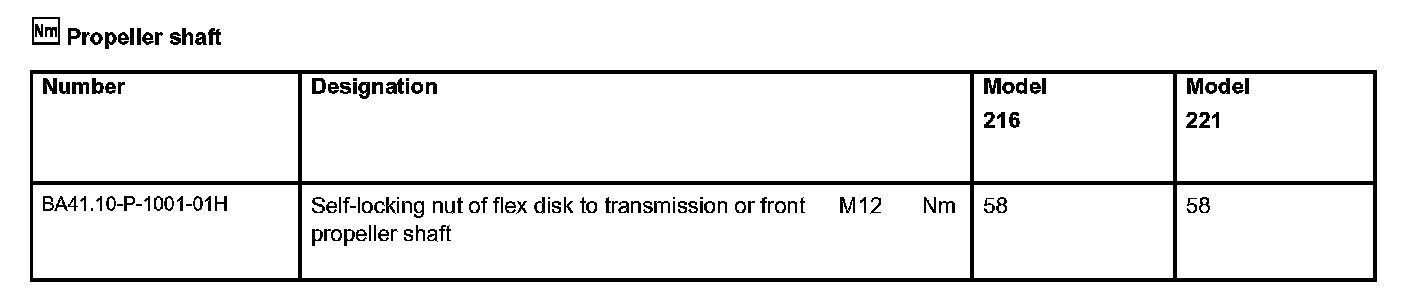

Propeller shaft:
