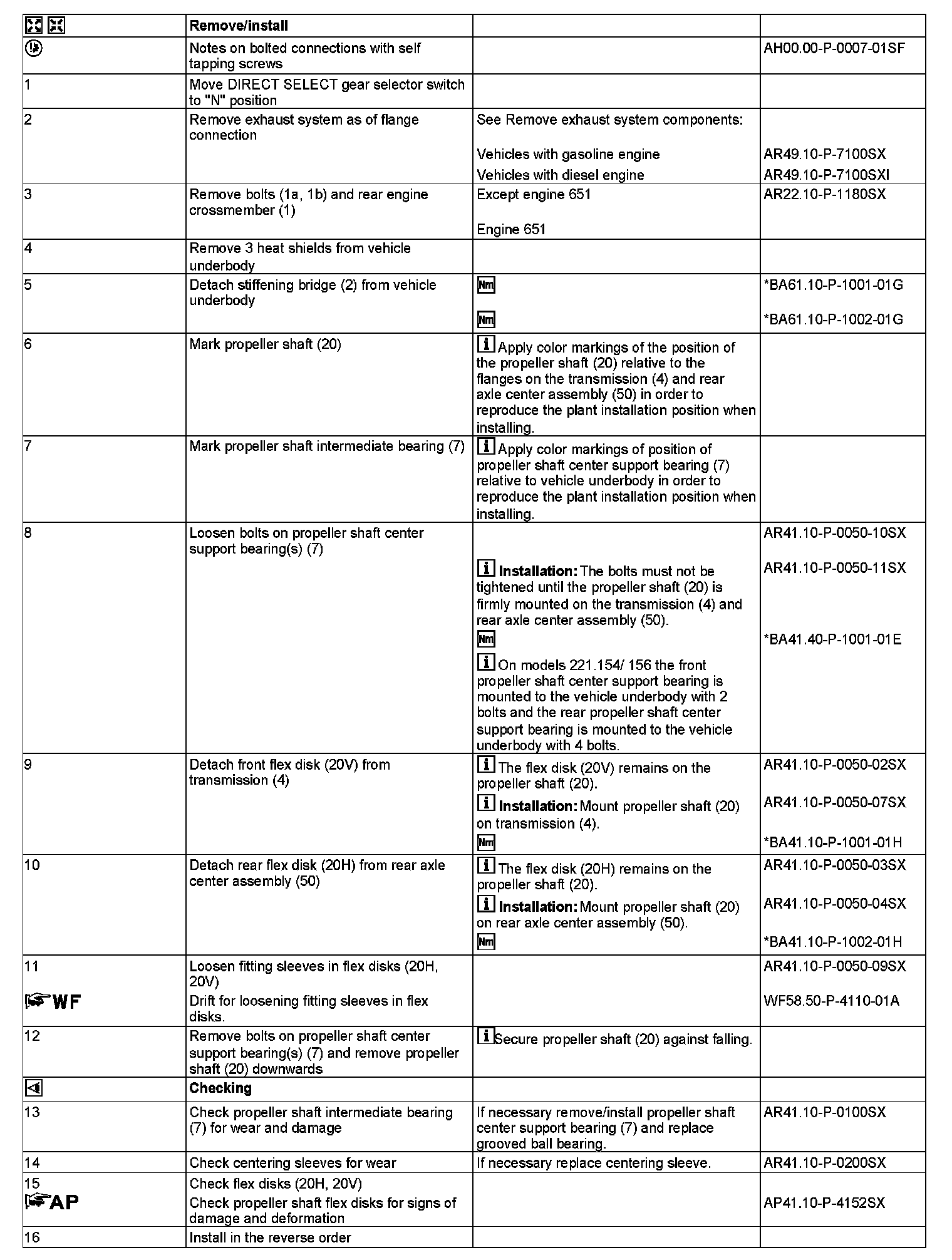

AR41.10-P-0050SX Remove/Install Propeller Shaft

AR41.10-P-0050SX Remove/Install Propeller Shaft
MODEL 216, 221
without 4MATIC

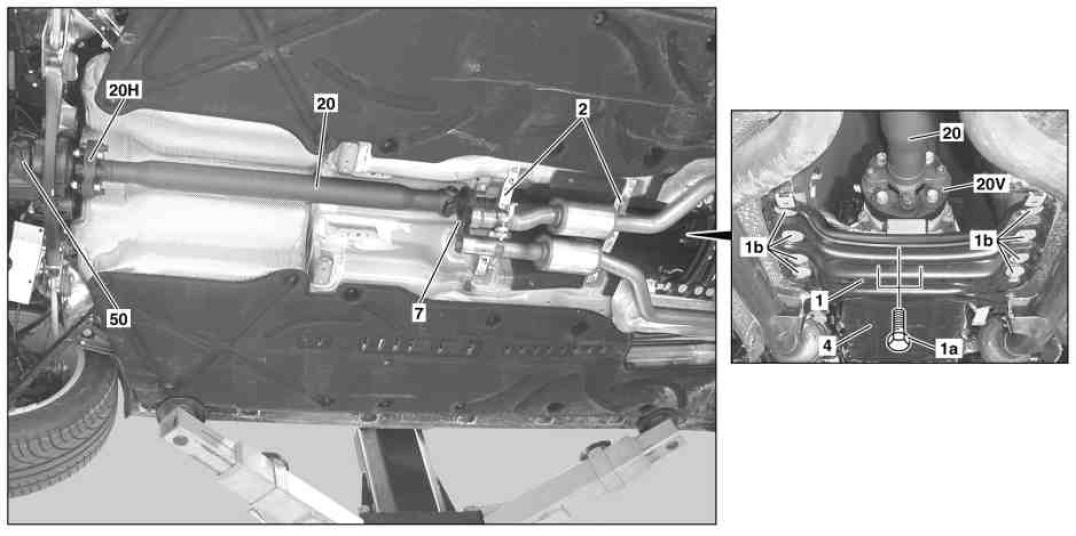

Shown on model 221.171

1 Engine crossmember
1a Screw
1b Screw
2 Stiffening bridge
4 Transmission
7 Propeller shaft center support bearing
20 Propeller shaft
20H Rear flex disk
20V Front flex disk
50 Differential
