AR41.10-P-0050-09SX Release Fitting Sleeves on Flex Disks Drift For Loosening Fitting Sleeves In Flex Disks

AR41.10-P-0050-09SX Release fitting sleeves on flex disks
Drift for loosening fitting sleeves in flex disks

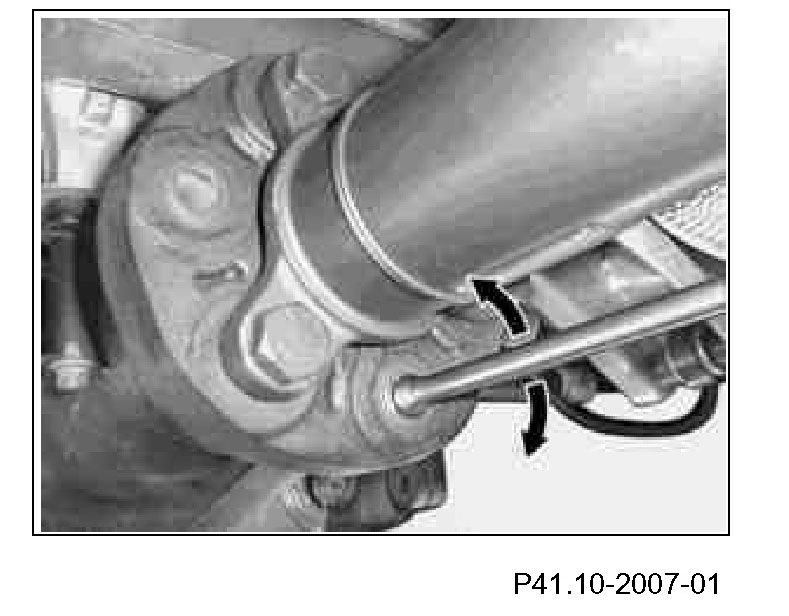

Propeller shaft installed
1.1 Using drift, loosen fitting sleeves of flex disks from flange of transmission or rear axle center assembly.

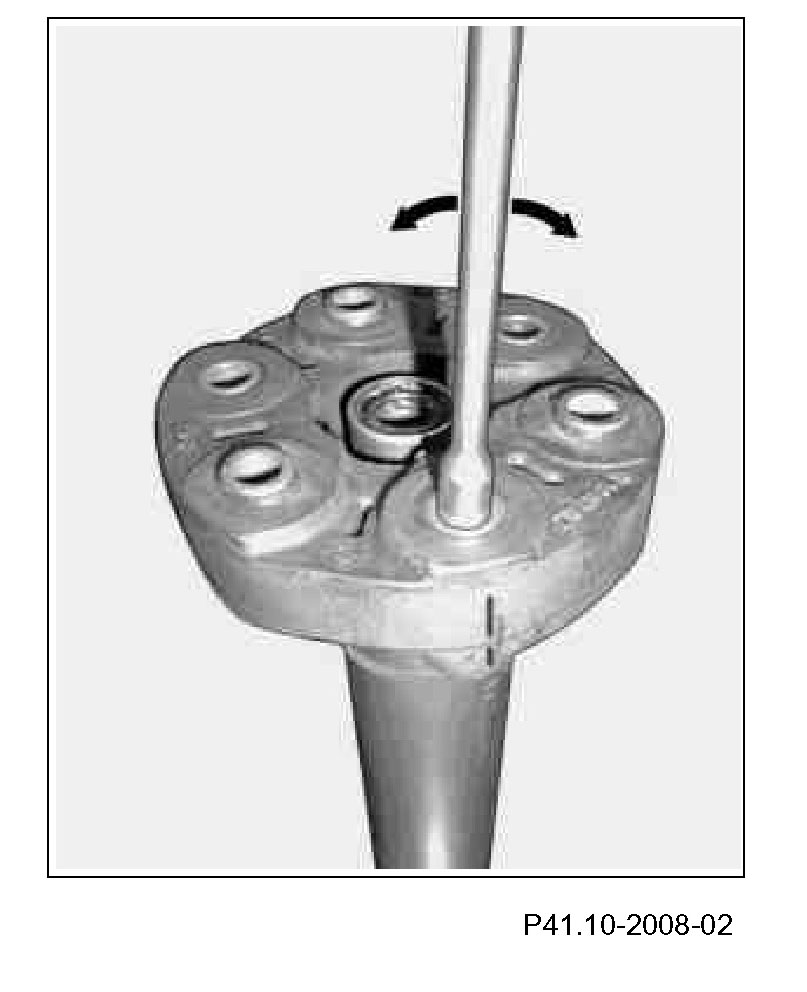

Propeller shaft removed
1.2 Loosen fitting sleeves of flex disks from propeller shaft using drift.
