AR41.10-P-0050-07SX Mount Front Propeller Shaft to Transmission



AR41.10-P-0050-07SX Mount front propeller shaft to transmission

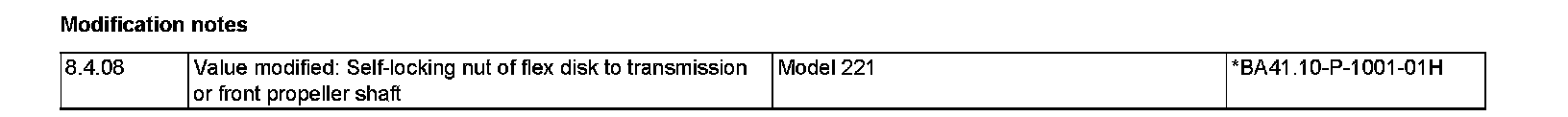

Modification notes:

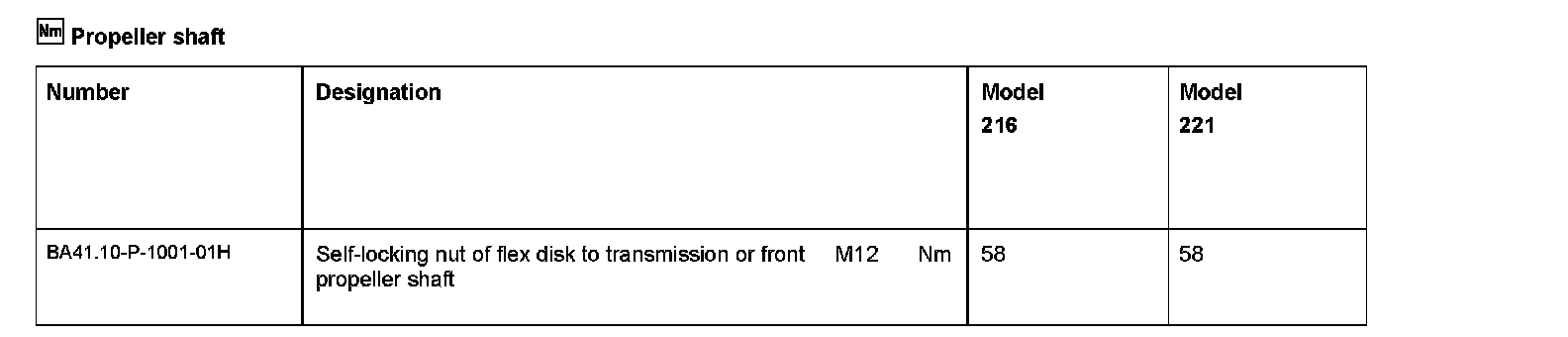

Propeller shaft:








Replace self-locking nuts. Align color markings before mounting propeller shaft.

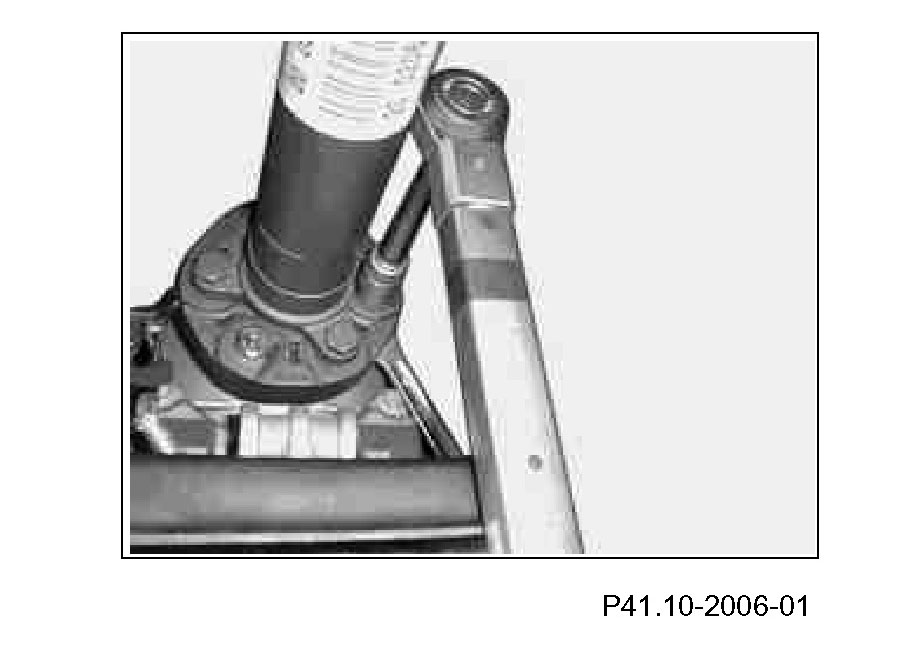

1 Mount front half of propeller shaft on transmission.
