AR41.10-P-0050-03SX Remove Propeller Shaft From Rear Axle Center Assembly

AR41.10-P-0050-03SX Remove propeller shaft from rear axle center assembly

Component Identification:

Apply color marking indicating position of flex disk relative to flange on rear axle center assembly in order to reproduce the plant installation position when installing, otherwise drive line vibrations may occur.

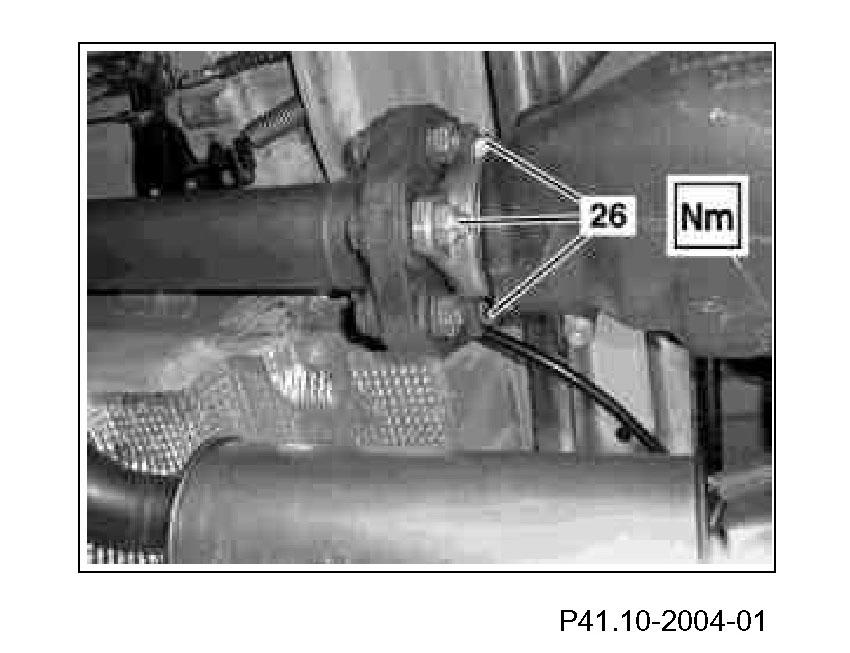

1 Unscrew nuts (26).
2 Detach propeller shaft from rear axle center assembly.

Flexible disk remains on propeller shaft.
