AR41.10-P-0086-04T Correcting Center Articulation Angle at Propeller Shaft Intermediate Bearing

AR41.10-P-0086-04T Correcting center articulation angle at propeller shaft intermediate bearing
- Joint 2-piece

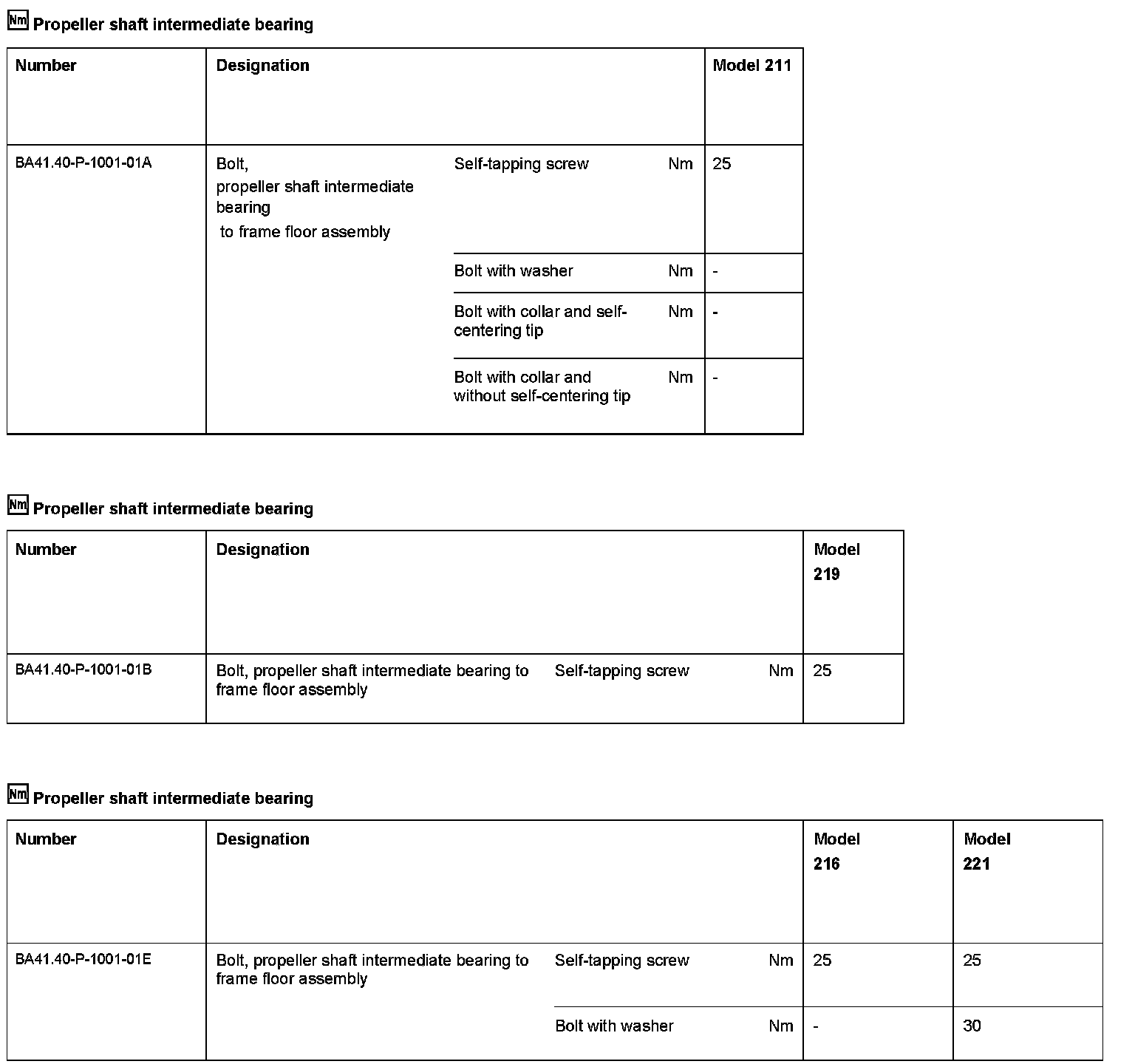

Propeller Shaft Intermediate Bearing:

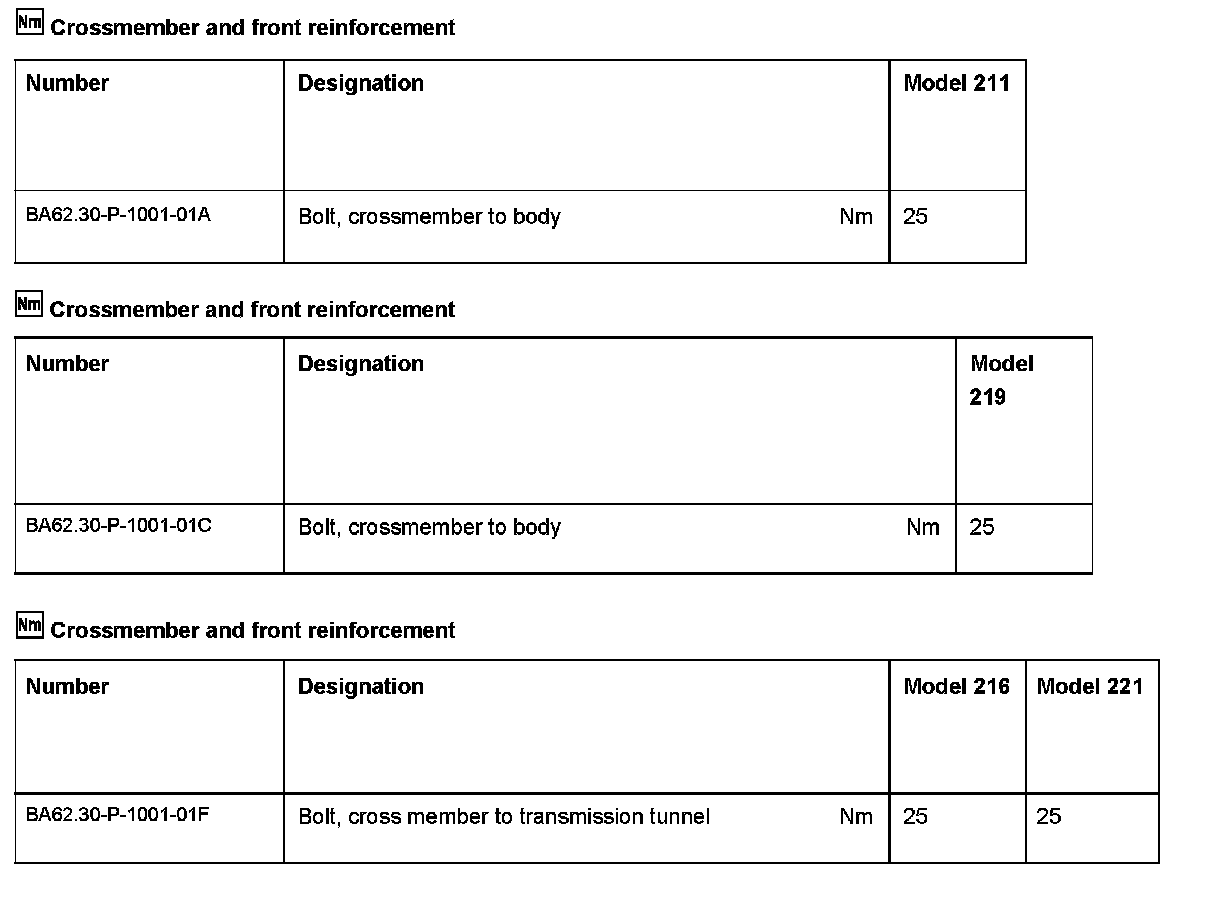

Crossmember And Front Reinforcement:

Correct articulation angle in the center (2)
To correct the inclination angle, install the shop-made shims at the propeller shaft center support bearing. A 1 mm thick shim changes the inclination angle by approx. 0.17 degrees.

When using shims > 2 mm thick, increase the bolt length by 5 mm.

If a shim > 5 mm thick is required, check the front engine mount and rear engine mount for signs of settling or wear and replace if necessary.

Component Identification:

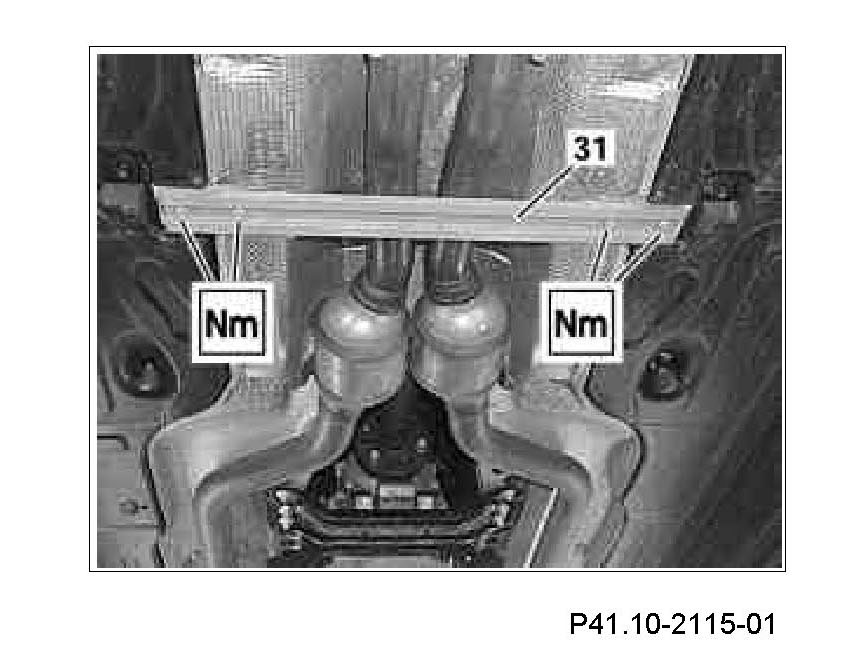

1 Detach crossmember (31).

Shows on model 211

Component Identification:

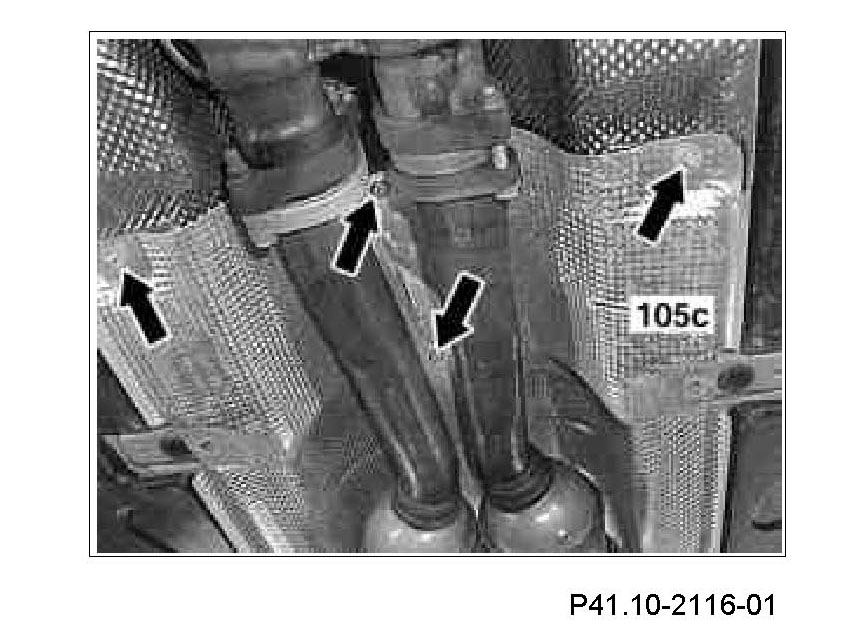

2 Detach split heat shield (105c) (arrows).

Shows on model 211

Component Identification:

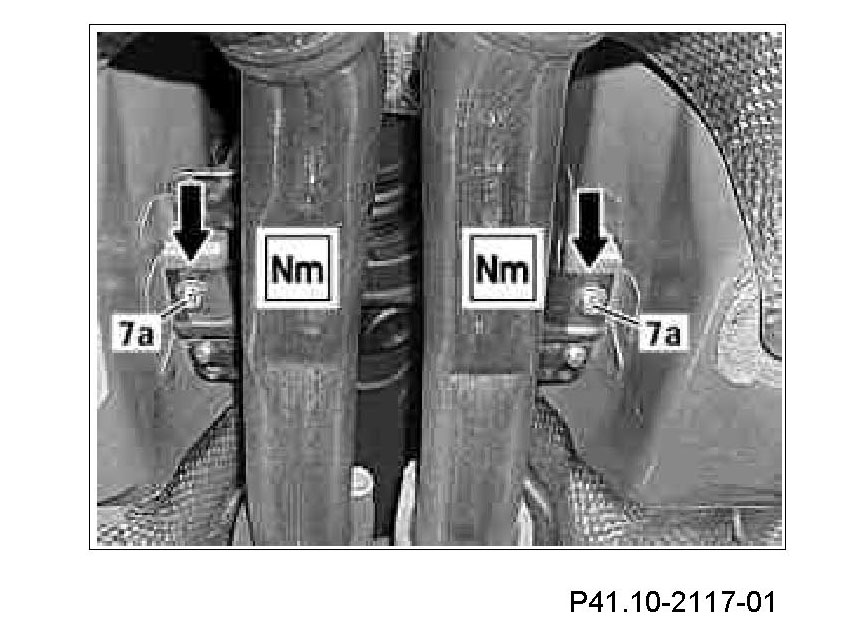

3 Unscrew bolts (7a) from propeller shaft intermediate bearing.
4 Insert shop-made shims between frame floor assembly and propeller shaft center support bearing (arrows).

The dimension for the shims must be taken from the propeller shaft center support bearing, see following picture.

5 Screw in bolts (7a) for propeller shaft center support bearing
6 Attach split heat shield (105c).
7 Install cross member (31).

Shows on model 211

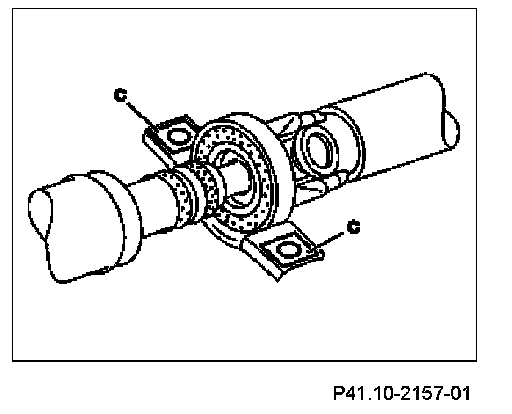

Example:

Component Identification:

Shims (c) between frame floor and propeller shaft center support bearing.

Material: steel or aluminum
