AR41.10-P-0086-01R Read Out Propeller Shaft Inclination Angles From Memory; Correct If Necessary

AR41.10-P-0086-01R Read out propeller shaft inclination angles from memory; correct if necessary
- Joint 2-piece

Data Sheet for Measuring Inclination Angle, Form

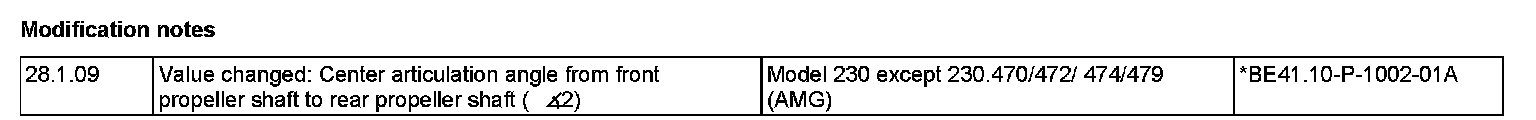

Modification Notes:

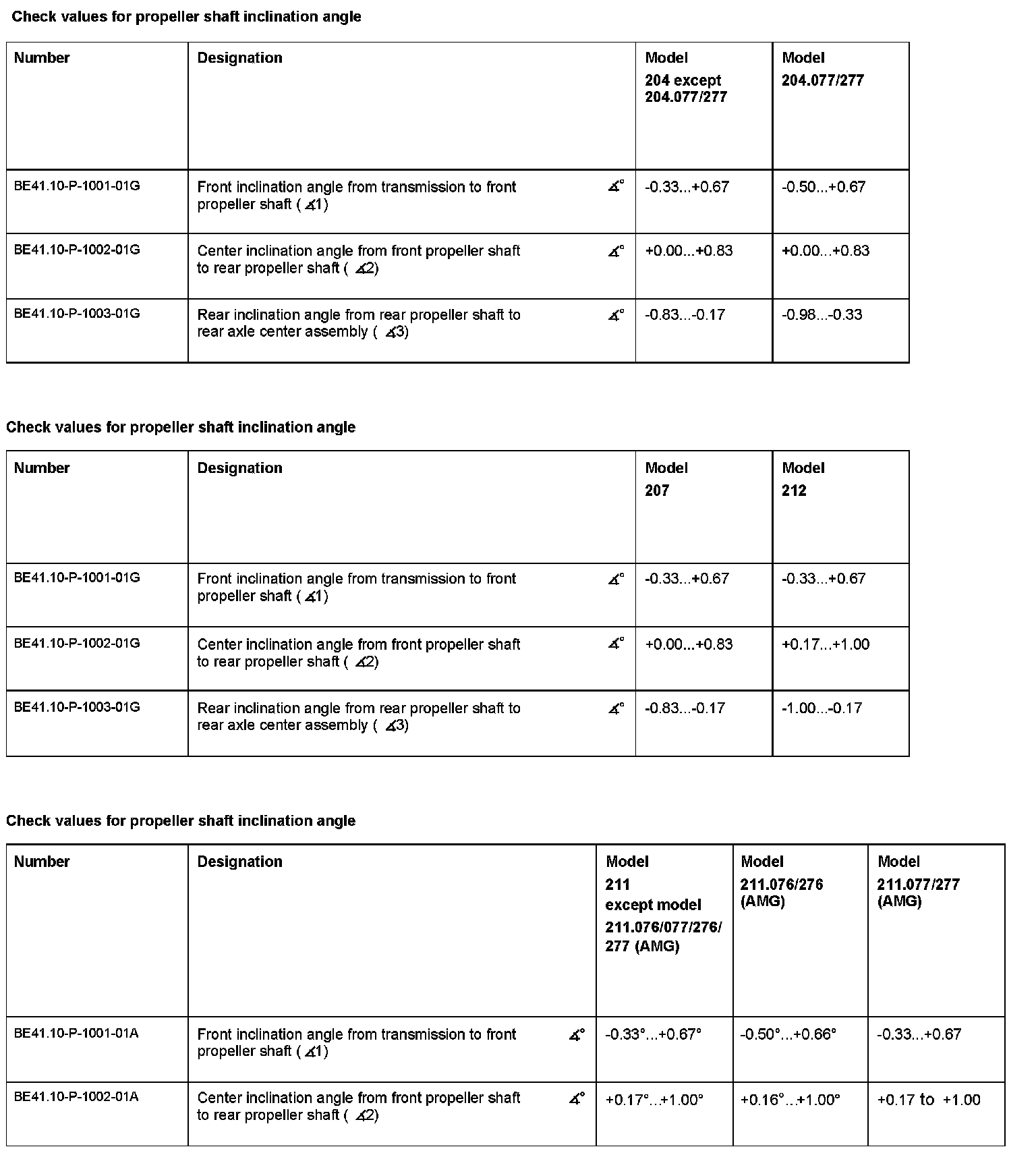

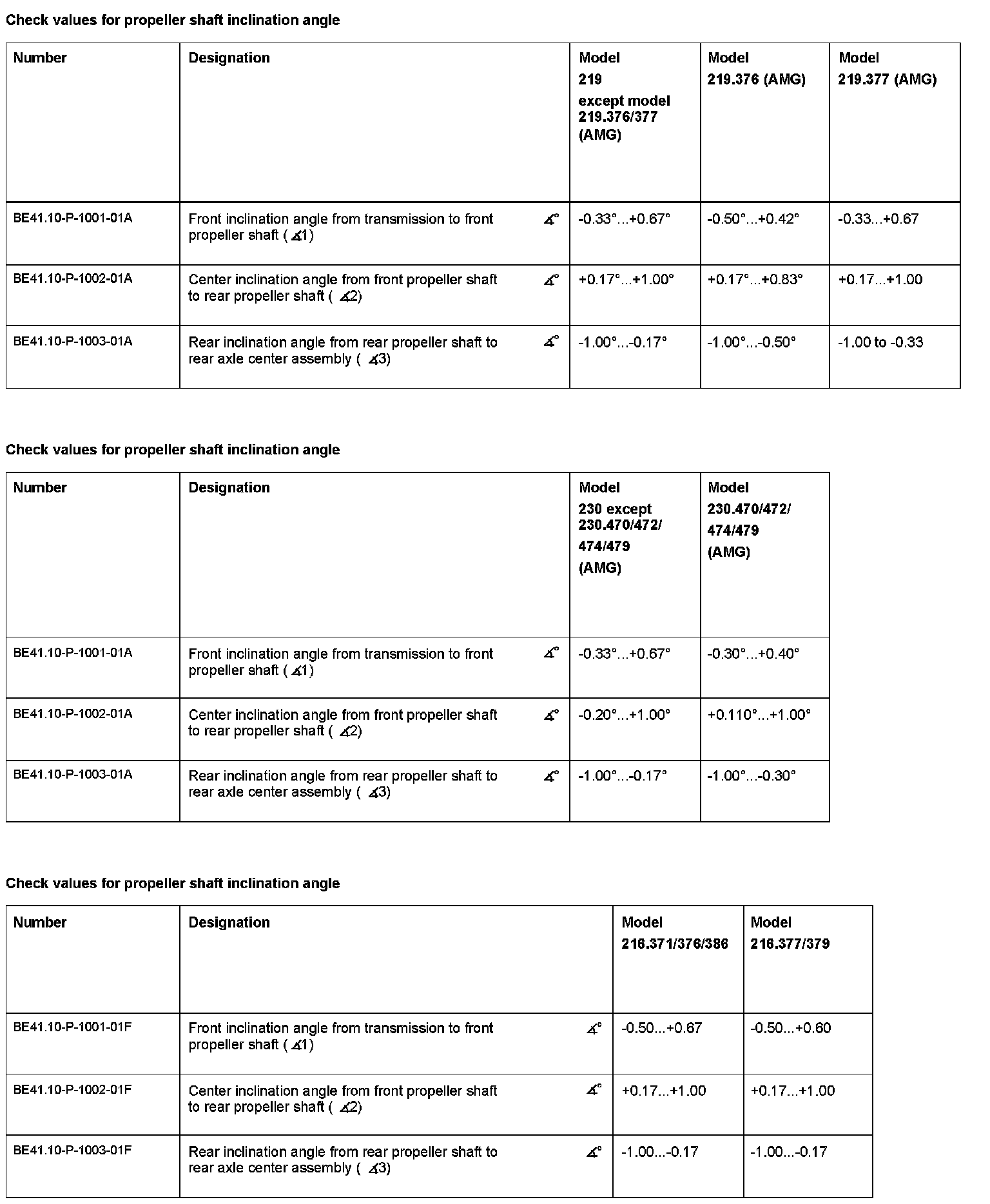

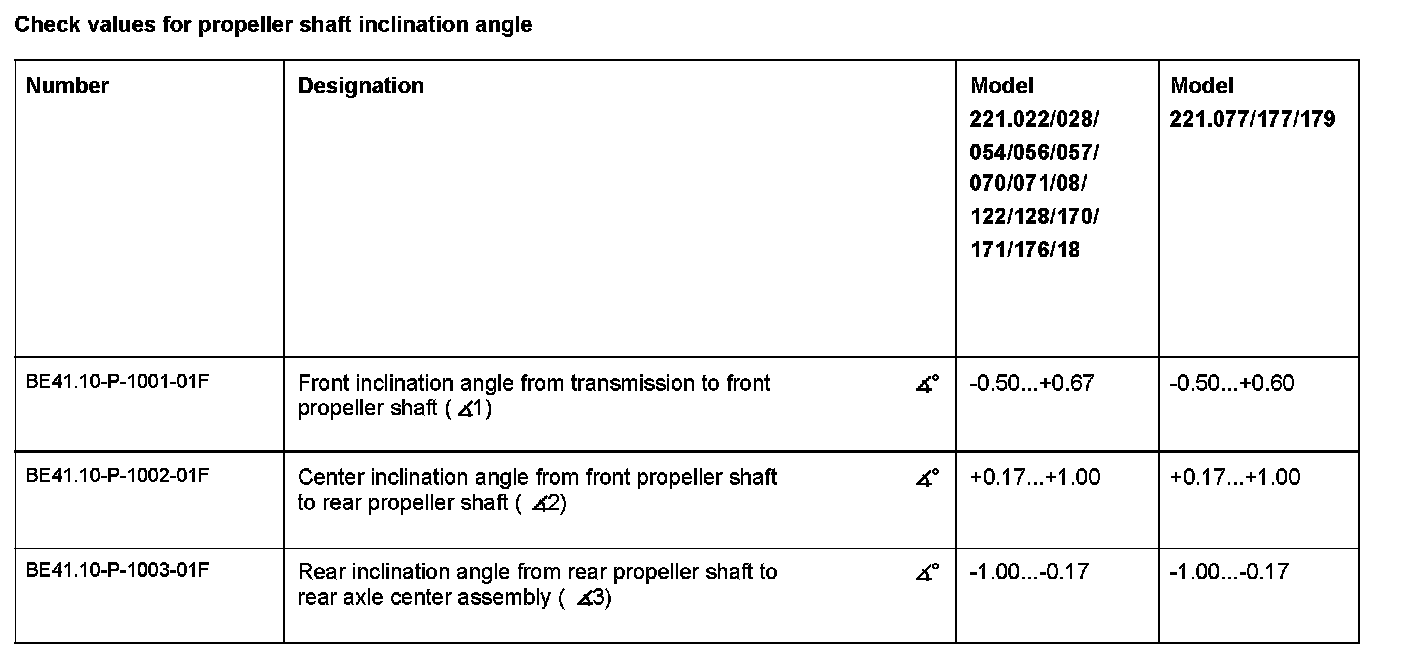

Check Values For Propeller Shaft Inclination Angle:

Memory Screen:

The display indicates that the meter is ready to measure angle 5. This angle is no longer measured.

1 Press the MEMORY button once.

The main menu is displayed.

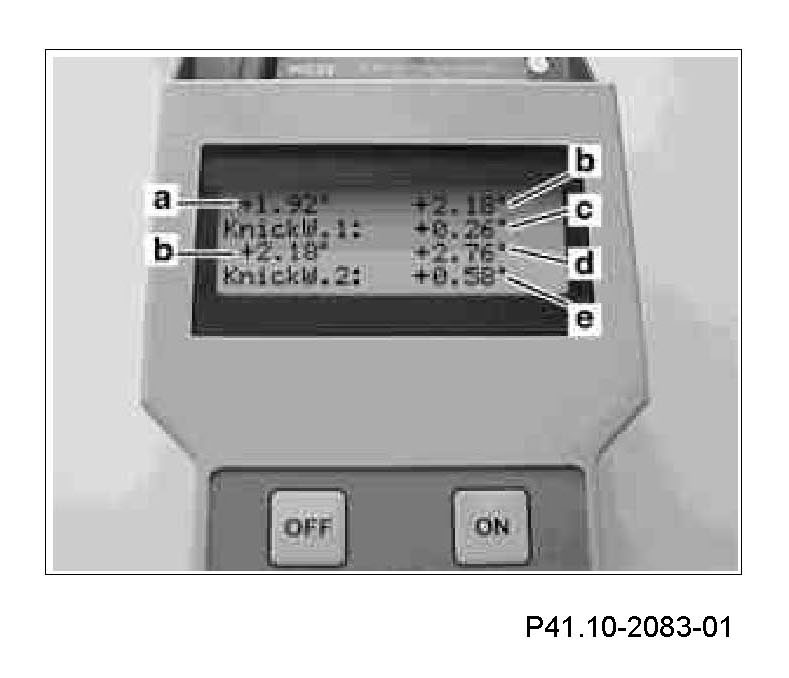

2 Press the MEMORY button again.

The memory displays the measured angle (a, b, d) and the resulting articulation angle 1 (c) and articulation angle 2 (e).

3 Record inclination angle 1 (c) e.g. +0.26 degrees and inclination angle 2 (e) e.g. +0.58 degrees on the data sheet.
4 Press the STEP button.

Memory screen

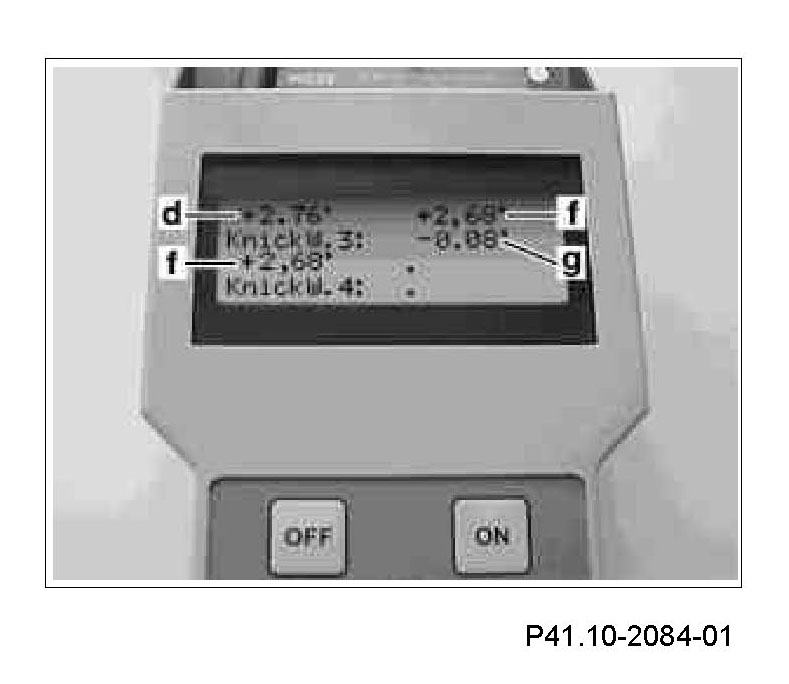

Memory Screen:

The measured angles (d, f) and the calculated inclination angle 3 (g) are displayed.

5 Enter articulation angle 3 (g) e.g. 0.08 degrees into data sheet.

Memory screen

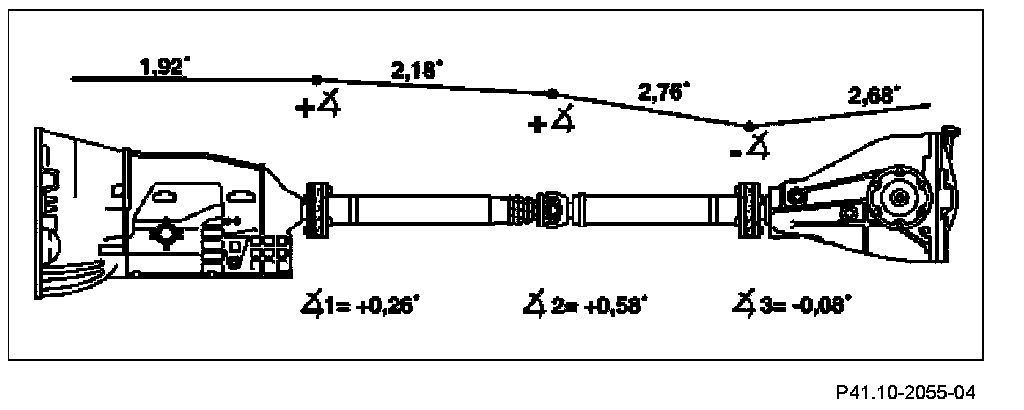

The inclination angles are calculated from the differences between the respective angle measurements.

Front articulation angle (1):
Transmission to front propeller shaft

Inclination angle in center (2):
Front propeller shaft to rear propeller shaft

Rear articulation angle (3):
Rear propeller shaft to rear axle differential

If an inclination angle is outside of the tolerance, it must be corrected. All articulation angle differences should be as close as possible to the center of the relevant tolerance range. A check measurement must be carried out each time the articulation angle is corrected.
