AR41.10-P-0085-03T Measure Absolute Angle at Rear Axle Housing

AR41.10-P-0085-03T Measure absolute angle at rear axle housing

Measurement - Angle 4
The vehicle must be on its wheels for the measurement. All four angles should be measured in succession without interruption.

An angle that has already been measured can be measured a second time if required. To do this, with the Measurement menu displayed, press the STEP button repeatedly until the display indicates Ready to measure the relevant angle.

Component Identification:

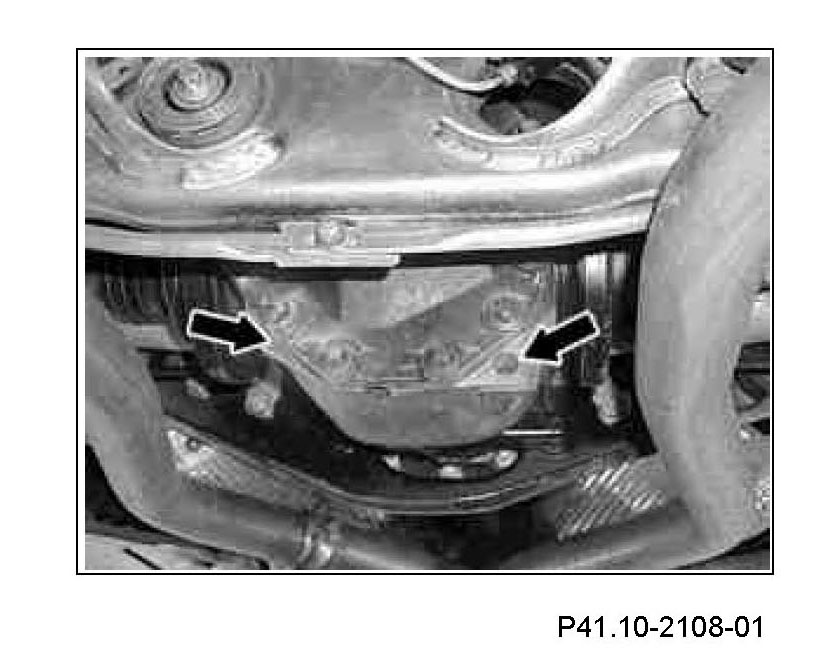

1 Clean contact surfaces (arrows) at rear axle housing to remove paint and/or gasket residuals and remove uneven material using a suitable tool.

Shown: model 211 with 187 mm dia. rear axle center assembly

Component Identification:

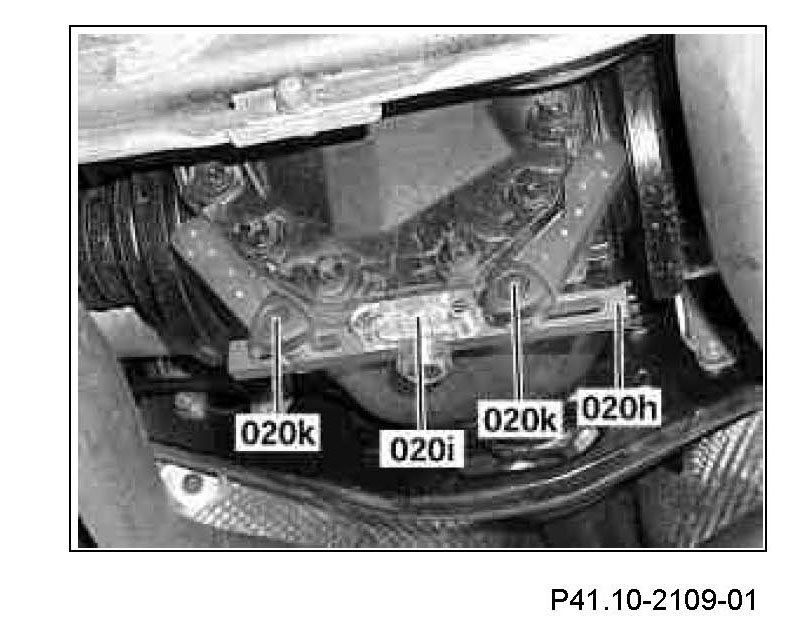

2 Position rear axle center assembly adapter (020h) on rear axle housing (magnetic).
3 Align rear axle center assembly adapter (020h) in horizontal transverse direction using spirit level (020i).
4 Tighten retaining bolts (020k) for rear axle center assembly adapter (020h).

Shown: model 211 with 187 mm dia. rear axle center assembly

Component Identification:

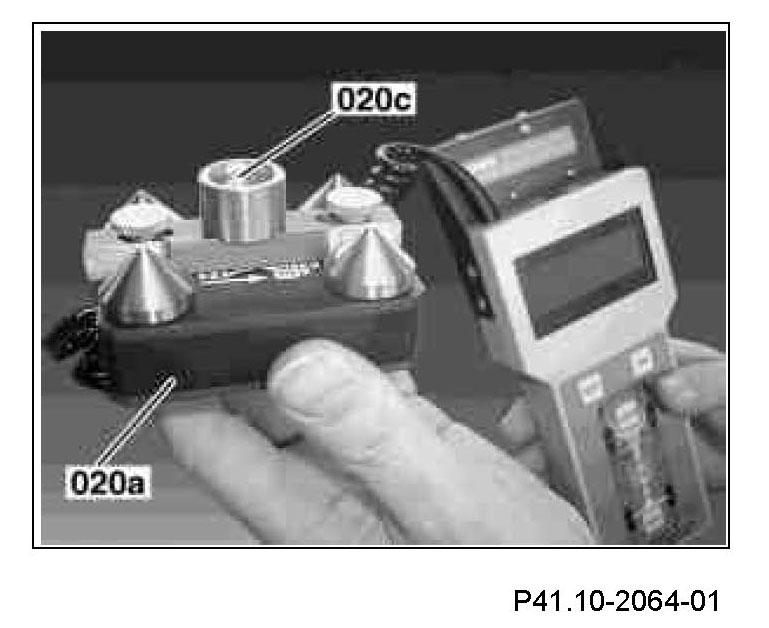

5 Mount sensor mount (020c) with the two knurled bolts centrally on the sensor (020a).

Component Identification:

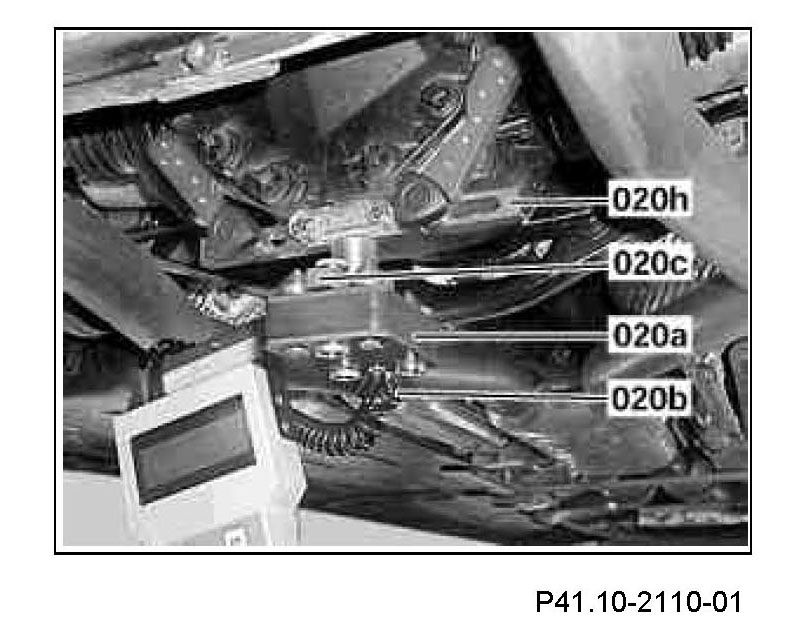

6 Position sensor bracket (020c) with sensor (020a) on rear axle center assembly adapter (020h) by turning slightly to left/right (magnetic).
The spiral cable (020b) of the sensor (020a) must point in the direction of travel for each measurement. Otherwise the measurement will be inaccurate.

Shown: model 211 with 187 mm dia. rear axle center assembly

Component Identification:

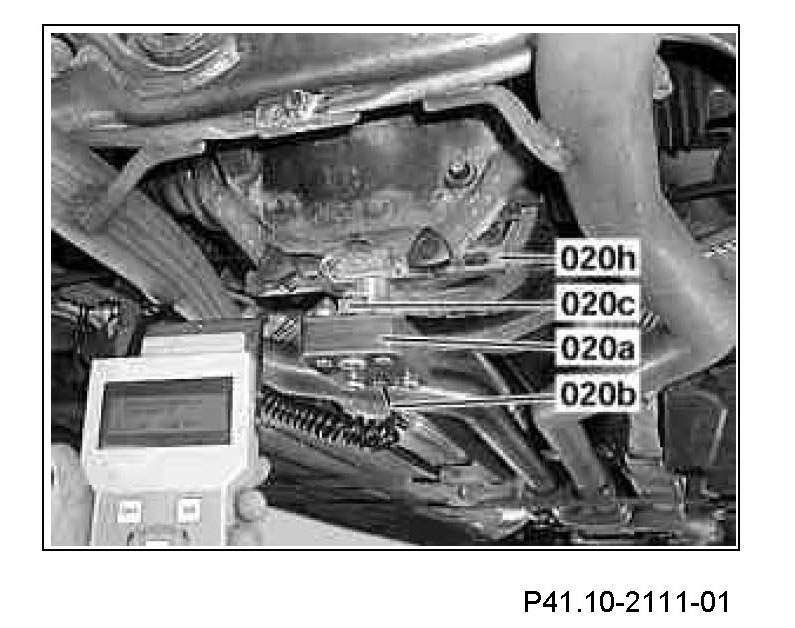

Shown: model 211 with 210 mm dia. rear axle center assembly (210E)

Measured values screen for angle 4:

The meter is ready to take a measurement. The value measured is shown on the display.
7 Press SAVE button.
The values are saved.

Measured values screen for angle 4, display e.g. 2.68 degrees

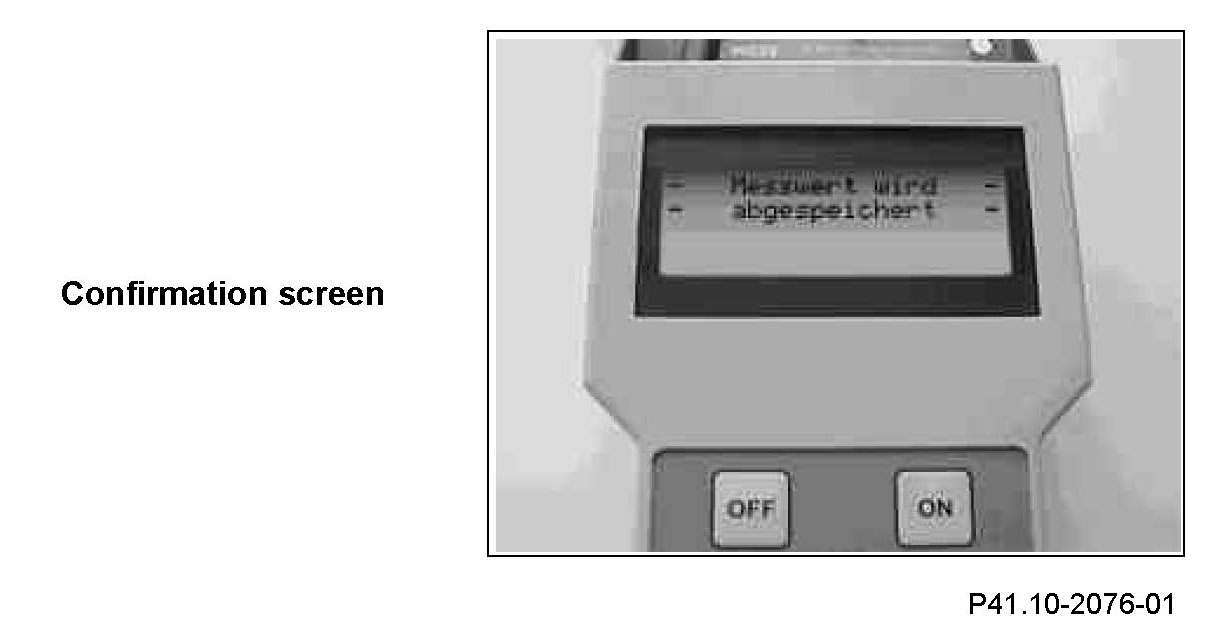

Confirmation screen:

A confirmation message appears briefly and then the meter indicates that it is ready to measure the next angle (angle 5). The measurement is completed and stored in memory.
8 Remove sensor (020a) from rear axle center assembly.
9 Remove rear axle center assembly adapter (020h).
10 Detach sensor mount (020c) from sensor (020a).

Confirmation screen
