AR41.10-P-0085-02SX Measure Absolute Angle at Front and Rear Propeller Shafts

AR41.10-P-0085-02SX Measure absolute angle at front and rear propeller shafts
- Joint, 2-piece


The vehicle must be on its wheels for the measurement. All four angles should be measured in succession without interruption.

An angle that has already been measured can be measured a second time if required. To do this, with the Measurement menu displayed, press the STEP button repeatedly until the display indicates Ready to measure the relevant angle.

Component Identification:

Measurement - Angle 2: front propeller shaft

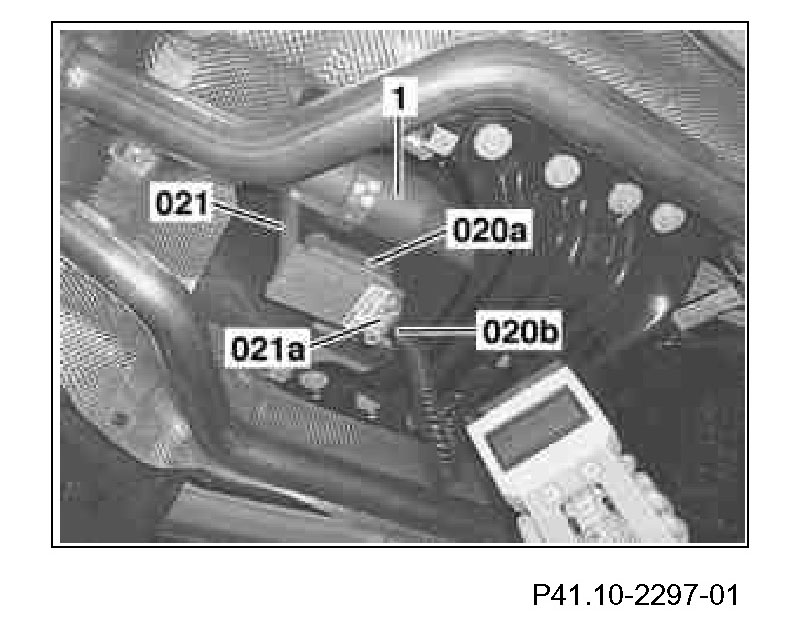

1 Clean contact surface for adapter for transmission (021) on front propeller shaft (1).
2 Fit adapter for transmission (021) to front propeller shaft (1) (magnetic).
3 Align adapter for transmission (021) horizontally in transverse direction using spirit level (021a).
4 Place sensor (020a) on support plate of adapter for transmission (021).

The spiral cable (020b) of the sensor (020a) must point in the direction of travel for each measurement. Otherwise the measurement will be inaccurate.

Measured values screen for angle 2: display e.g. 2.18 degrees:

The value measured is shown on the display.

5 Press SAVE button. The values are saved.

Measured values screen for angle 2: display e.g. 2.18 degrees

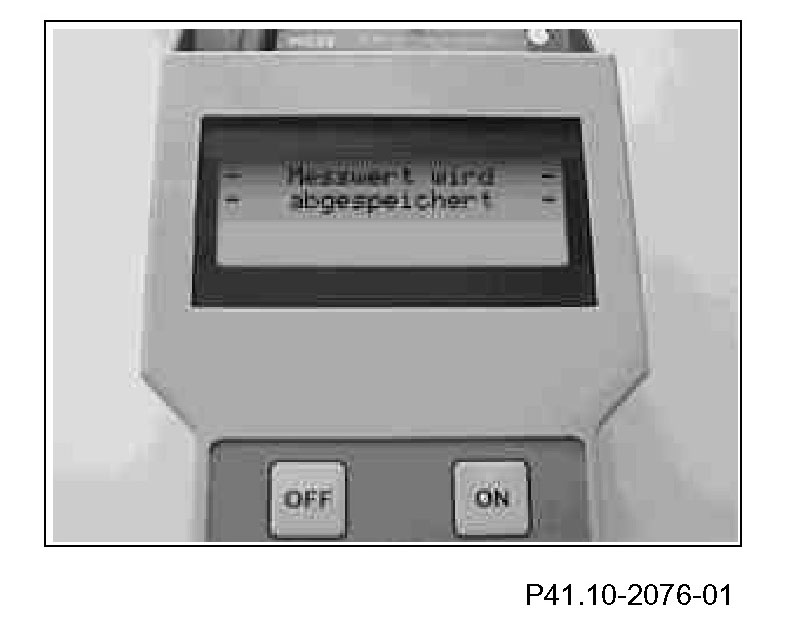

Confirmation screen:

A confirmation message appears briefly.

Confirmation screen

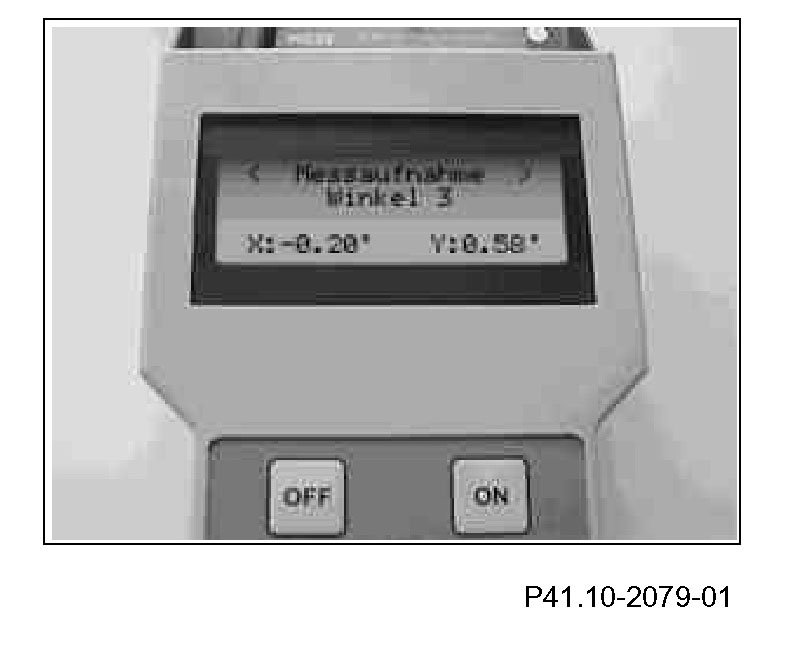

Ready screen for angle 3:

The display then indicates that the device is ready for the next measurement (angle 3).

6 Detach sensor (020a) and adapter for transmission (021) from front propeller shaft (1).

Ready screen for angle 3

Component Identification:

Measurement - Angle 3: rear propeller shaft

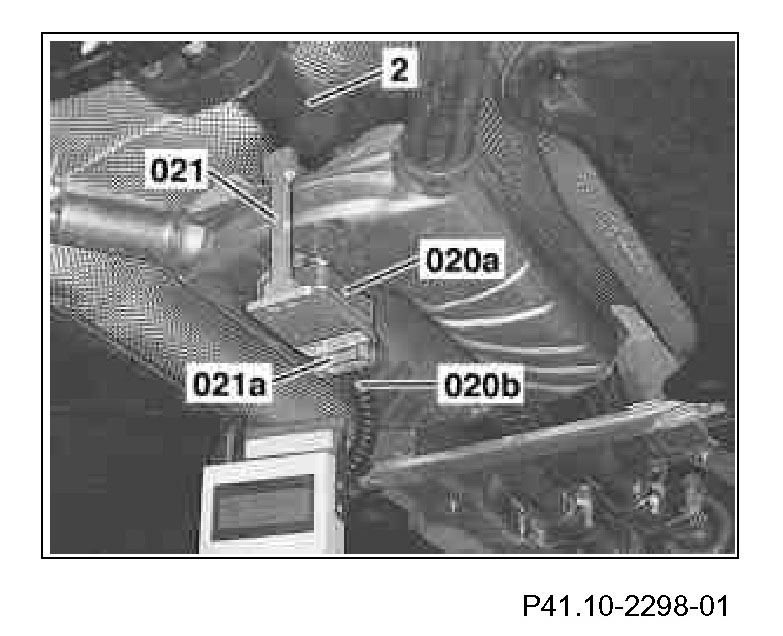

7 Clean contact surface for adapter for transmission (021) on rear propeller shaft (2).
8 Fit adapter for transmission (021) to rear propeller shaft (2) (magnetic).
9 Align adapter for transmission (021) horizontally in transverse direction using spirit level (021a).
10 Place sensor (020a) on support plate of adapter for transmission (021).
The spiral cable (020b) of the sensor (020a) must point in the direction of travel for each measurement. Otherwise the measurement will be inaccurate.

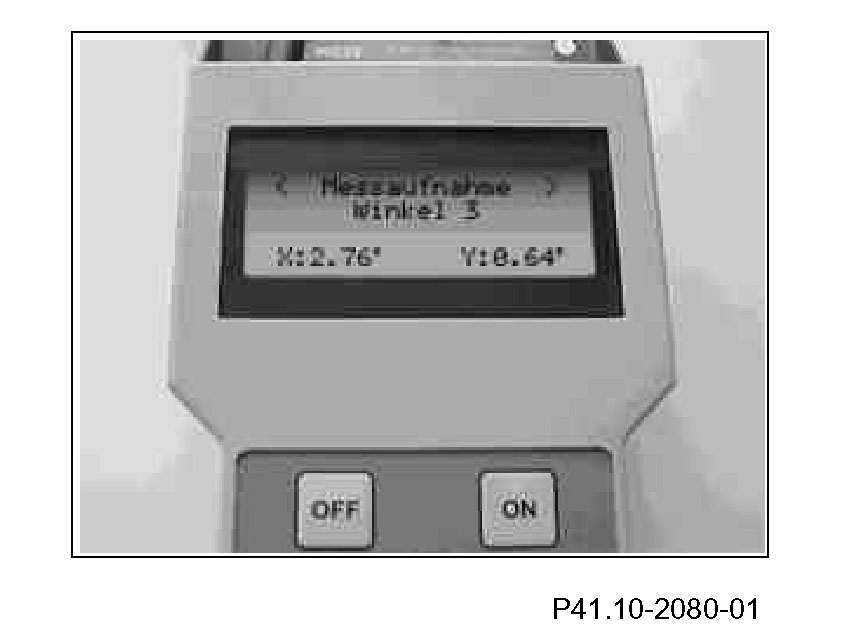

Measured values screen for angle 3: display e.g. 2.76 degrees:

The value measured is shown on the display.
11 Press SAVE button. The values are saved.

Measured values screen for angle 3: display e.g. 2.76 degrees

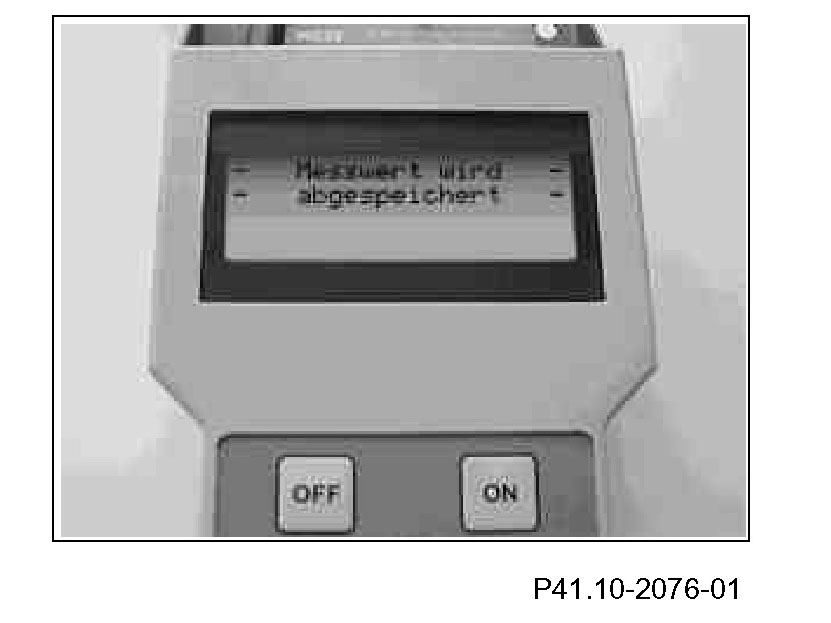

Confirmation screen:

A confirmation message appears briefly.

Confirmation screen

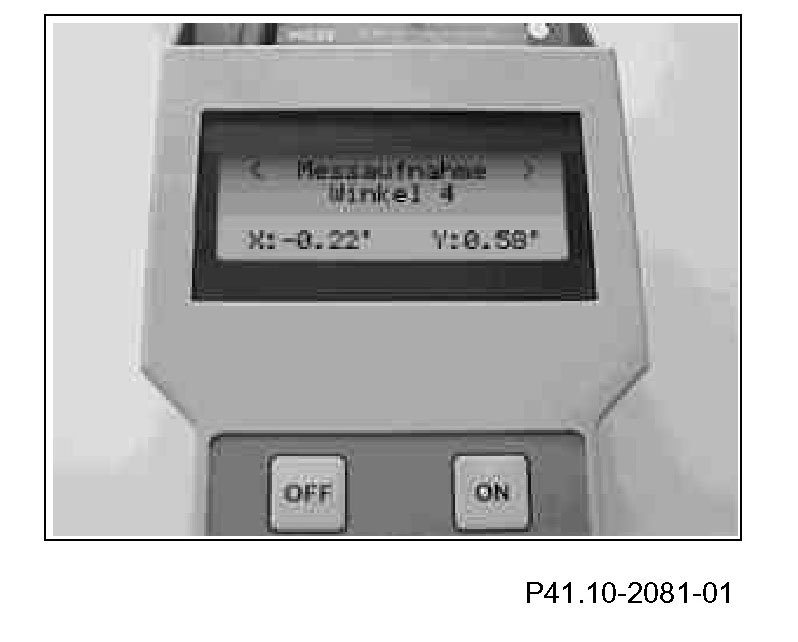

Ready screen for angle 4:

The display then indicates that the device is ready for the next measurement (angle 4).
12 Detach sensor (020a) and adapter for transmission (021) from rear propeller shaft (2).

Ready screen for angle 4
